Oil Pump Assembly Overview

WARNING: This page is about a different car, the 2008 Volkswagen R32. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Note the following when installing the oil pump: First tighten all bolts by hand. Then tighten the oil pressure line -item 7- at the cylinder block and then at the oil pump -item 3-. Tighten the oil pump bolts -item 4- last.

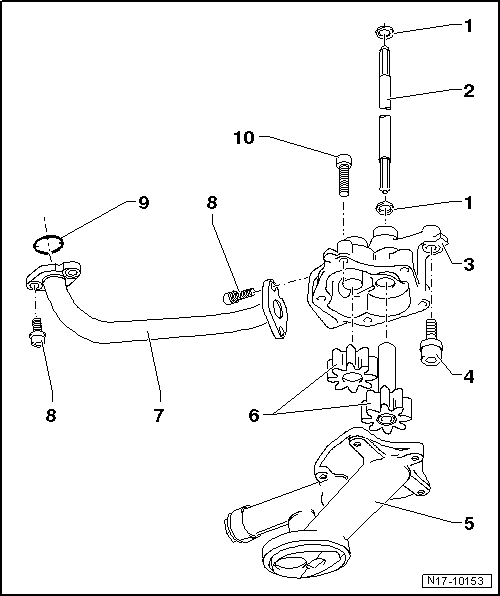

Fig 1: Identifying Assembly Overview: Oil Pump

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Spacer Washer
Input Shaft
- For the oil pump drive.
Oil Pump Housing
Bolt, 23 Nm
Oil Pump Cover with Pressure Relief Valve
- Opening pressure: 5.3 to 5.7 bar.
- Clean the strainer if contaminated.
Gears
- Checking backlash, refer to Fig 2.
- Checking axial play, refer to Fig 3.
Oil Pressure Line
- Apply sealant AMV 188 001 02 to the oil pump housing.
- Install with new "micro-encapsulated" bolts.
Bolt, 8 Nm
- Always replace.
Seal
- Replace if damaged.
Bolt, 8 Nm

Fig 2: Checking Oil Pump Backlash

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Feeler gauge

Wear limit: 0.20 mm

Fig 3: Checking Oil Pump Axial Clearance

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Straight edge
Feeler gauge

Wear limit: 0.10 mm
