Special Tools

WARNING: This page is about a different car, the 2008 Volkswagen R32. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Fitting sleeve 3378
Thrust pad 3253/6
Counter holder tool T10069
Spark plug removal tool 3122B
Assembly tool T10118
Compression tester VAG 1763
Hose clip pliers VAS 6340

Fig 1: Identifying Hose Clamp Pliers VAS 6340
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Lifting tackle 3033

Fig 2: Identifying Lifting Tackle 3033
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Shop crane VAS 6100

Fig 3: Identifying Shop Crane VAS 6100
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Dial gauge holder VW 387

Fig 4: Identifying Dial Gauge Holder VW 387
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Fig 5: Identifying Special Tools -- Cylinder Head, Removing And Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

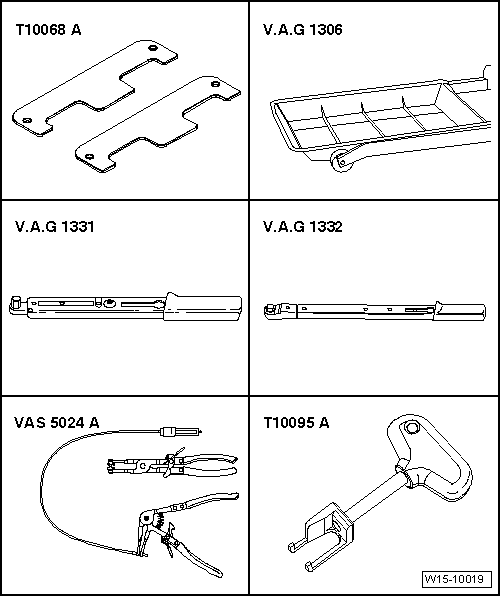

Camshaft bar T10068A
Drip tray VAG 1306 or drip tray for VAS 6100 VAS 6208
Torque wrench (5-50 Nm) VAG 1331
Torque wrench (40-200 Nm) VAG 1332
Spring type clip pliers VAS 5024A
Puller for ignition coil T10095A

Fig 6: Identifying Special Tools - Camshaft Adjuster Valves, Removing And Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Torque wrench (5-60 Nm) VAG 1783
TORX® bit set VAG 1766
Ratchet insert 1/4" VAS 6234
Socket wrench T10072

Fig 7: Identifying Special Tools -- Valve Stem Seals

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Valve lever VW 541/1A with Press tool for VW 541/1A and 2037 VW 541/6
Adjustable rod 2036 with adapter plates 2036/1
Spark plug removal tool 3122B
Valve seal removal tool 3364
Valve stem seal driver 3365
Adapter T40012
