Special Tools

WARNING: This page is about a different car, the 2009 Volkswagen Rabbit, 2008 Volkswagen Rabbit, 2007 Volkswagen Rabbit, and 2006 Volkswagen Rabbit. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Counterhold Tool T10172
Oil Pump Align Plate T03005
Oil Pump Shim T03005/1
Oil Drain Adapter T40057

Fig 1: Identifying Oil Drain Adapter T40057
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Fig 2: Identifying Oil Pressure Gauge, Voltage Tester And Connector Test Set

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Oil Pressure Gauge V.A.G 1342
Voltage Tester V.A.G 1527 B
Connector Test Set V.A.G 1594 C
Socket 24 mm and Jointed Extension T40175

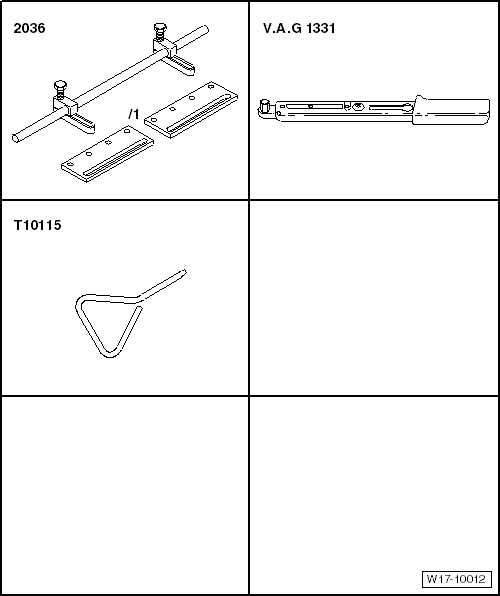

Fig 3: Adapter Plates/Locking Pin/Torque Wrench

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Adapter Plates 2036/1
Torque Wrench (5-50 Nm) V.A.G 1331
Locking Pin T10115
