Special tools and workshop equipment required

Adapter for K-Jetronic test device V.A.G 1318/20
Adapter V.A.G 1318/20-1
Remote control for VAG 1348 VAG 1348/3-3
Fuel system tester (smoke tester) KLI 9210
Hose adapter KLI 9210/55-1
Vehicle diagnosis, testing and information system VAS 5051B, VAS 5052 or VAS 5053
Fuel extracting device VAS 5190

Fig 1: Identifying Fuel Siphoning Unit VAS 5190
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Suction pump VAS 5226

Fig 2: Identifying Diesel Extractor VAS 5226
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Hose clamps up to 25 mm diameter 3094

Fig 3: Identifying Hose Clamps 3094
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Turbocharger tester VAG 1397A

Fig 4: Identifying Turbocharger Tester V.A.G 1397 A
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Voltage tester VAG 1527B

Fig 5: Identifying Diode Test Lamp V.A.G 1527 B
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Release tool T10238

Fig 6: Identifying Release Tool T10238
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Torque wrench (5-50 Nm) VAG 1331

Fig 7: Identifying Torque Wrench (5 To 50 Nm) V.A.G 1331
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Engine and transmission jack VAG 1383A

Fig 8: Identifying Engine & Transmission Jack VAG 1383 A
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Fig 9: Identifying Special Removal/Installation Tools (1 Of 2)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

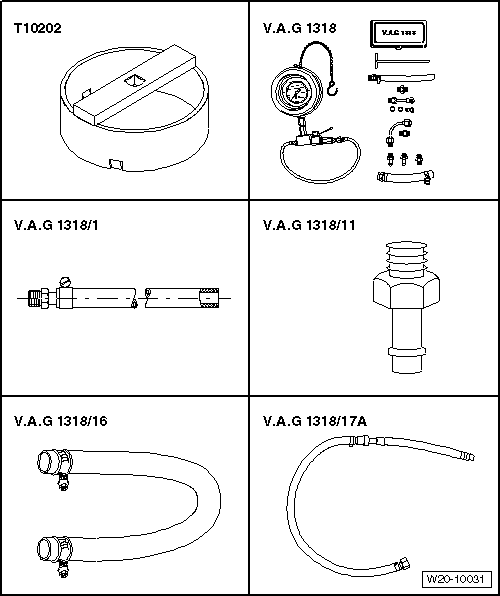

Wrench T10202
Fuel injection pressure gauge VAG 1318
Pressure gauge adapter VAG 1318/1
Adapter VAG 1318/11
Hose adapter VAG 1318/16
Adapter set VAG 1318/17A

Fig 10: Identifying Special Removal/Installation Tools (2 Of 2)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

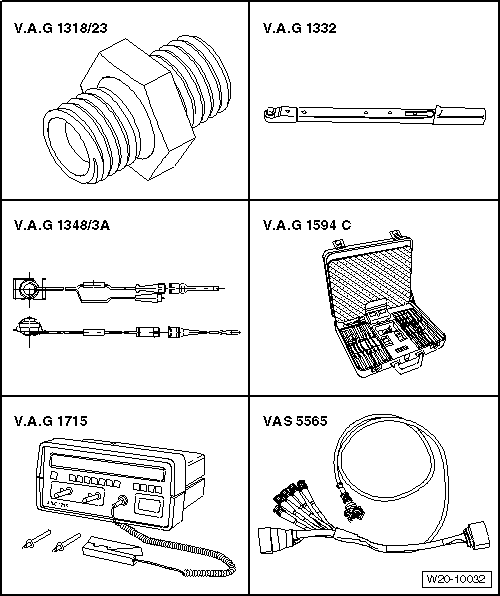

Fuel line feed adapter VAG 1318/23
Torque wrench (40-200 Nm) VAG 1332
Remote control VAG 1348/3A
Connector test set VAG 1594C
Multi-meter VAG 1715
Test instrument adapter/DSO (5-pin) VAS 5565
