Accelerator Pedal Module

WARNING: This page is about a different car, the 2008 Volkswagen R32. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Release tool T10238

Removing

-- Remove the steering column cover fasteners -arrows- and cover.

Fig 1: Identifying Steering Column Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pry out the cap -item 4- in ACCELERATOR PEDAL MODULE ASSEMBLY OVERVIEW using a screwdriver.

-- Remove the bolt.

-- Slide the T10238 as shown into the openings designated for it until it stops and remove the accelerator pedal module.

Fig 2: Installing Release Tool T10238

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the electrical connector from the accelerator pedal module. Do this by pressing the connector securing element down.

Installing

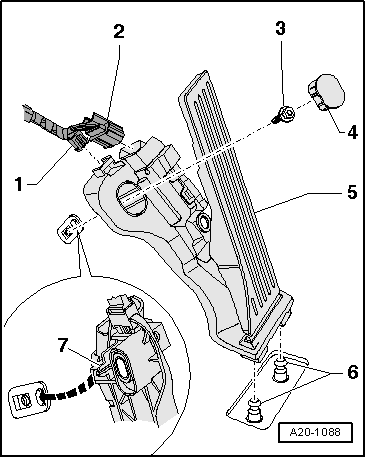

Fig 3: Identifying Connection Of Wiring And Electrical Harness To Accelerator Pedal Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Connect the electrical connector -2- to the accelerator pedal module.

The connector must engage audibly.

-- Press the accelerator pedal module onto the securing studs -6-.

-- Insert the centering pin -7- into the hole on the vehicle floor.

-- Secure the accelerator pedal module with the bolt -3-, tightening specification: 10 Nm, and install the cap -4-.

-- Reinstall the steering column cover.
