Current Draw

WARNING: This page is about a different car, the 2008 Volkswagen R32. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the rear seat bench. Refer to Removal and Installation .

-- Remove the cover -arrows- from the fuel delivery unit.

Fig 1: Identifying Cover From Fuel Delivery Unit

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Connect the VAG 1715 with current pickup -A- onto the wire -B- to the 5 pin electrical connector terminal 1.

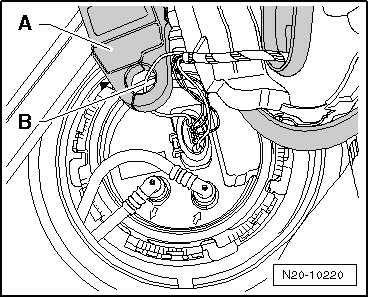

Fig 2: Identifying Current Probe Connected Around Cable Of 5-Pin Harness Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Start the engine and run at idle speed.

-- Measure the current draw of the fuel pump.

Specified value: Max. 9 amperes.

NOTE:

If the malfunction in the fuel system is sporadic, the test can also be performed during a road test, but a second person is required.

If the current draw is exceeded:

-- Fuel pump is faulty, replace the fuel delivery unit. Refer to FUEL DELIVERY UNIT .
