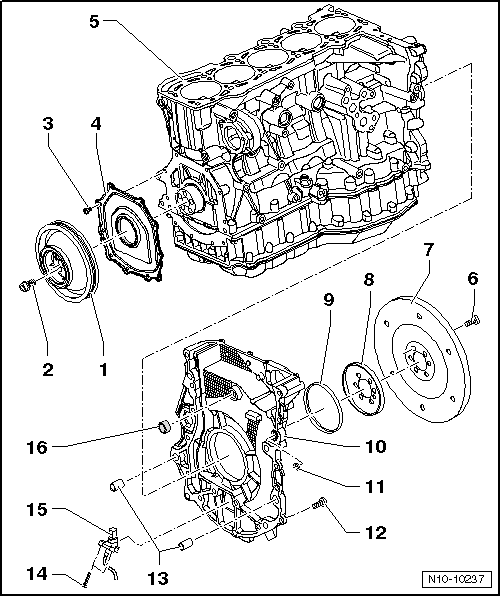

Sealing Flange And Drive Plate/Flywheel Overview
WARNING: This page is about a different car, the 2009 Volkswagen Rabbit, 2008 Volkswagen Rabbit, 2007 Volkswagen Rabbit, and 2006 Volkswagen Rabbit. However, it is still accessible from the selected car via links, so may be relevant.
- Vibration Damper
- There are different versions.
- Bolts
- 50 Nm + an additional 90° (1/4) turn.
- Always replace.
- Use a strength category 10.9 bolt only.
- Quantity: 5
- Bolt
- 10 Nm
- Sealing Flange, Belt Pulley Side
- With an integrated seal.
- Removing and installing, refer to SEALING FLANGE, BELT PULLEY SIDE .
- Cylinder Block
- Bolt
- 60 Nm + an additional 90° (1/4) turn.
- Always replace.
- Drive Plate/Flywheel
- To remove, lock the crankshaft using the locking pin T40069.
- The flywheel must not be pried out or the sealing flange will be damaged.
- Drive plate removing and installing. Refer to DRIVE PLATE .
- Flywheel removing and installing, refer to FLYWHEEL .
- Sensor Wheel
- For the engine speed sensor.
- With a position holder.
- Seal, Transmission Side
- Removing and installing, refer to SEAL, TRANSMISSION SIDE .
- Sealing Flange, Transmission Side
- Removing and installing, refer to SEALING FLANGE, TRANSMISSION SIDE .
- O-ring
- Always replace.
- Bolt
- 25 Nm
- Alignment Sleeves
- Bolt
- 5 Nm
- Engine Speed Sensor -G28-
- Seal
- Always replace.
