Engine Overview, Rear

WARNING: This page is about a different car, the 2009 Volkswagen Rabbit, 2008 Volkswagen Rabbit, 2007 Volkswagen Rabbit, and 2006 Volkswagen Rabbit. However, it is still accessible from the selected car via links, so may be relevant.

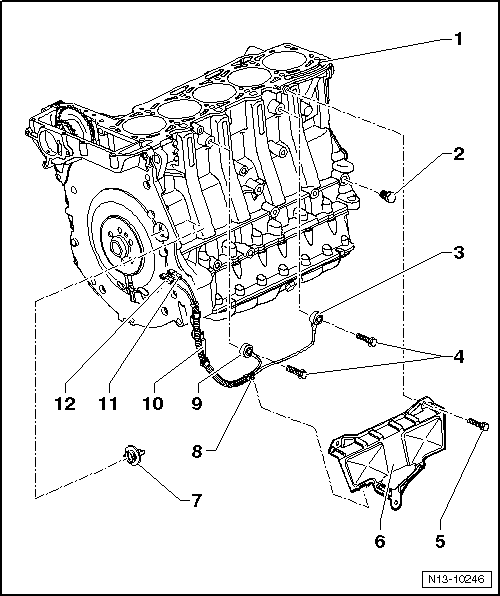

Fig 1: Attachments, Assembly Overview - Part III - Engine Rear
GWWN13-10246Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Cylinder Block
  2. Locking Bolt
    • 30 Nm
    • With a rolled seal.
    • The bore in the cylinder block is used for locking the crankshaft using the locking pin T40069.
  3. Knock Sensor 1 -G61-
    • Note the installed position: The wire connection points downward vertically.
  4. Bolt
    • 20 Nm
    • Tightening specification affects the function of the knock sensor.
  5. Bolt
    • 10 Nm
  6. Cover
  7. Plug
  8. Wire Clip
    • Clipped to the cover plate.
  9. Knock Sensor 2 -G66-
    • Note the installed position: The wire connection points 45° toward the right on the outside.
  10. Wire Bracket
    • Bolted to the Secondary Air Injection (AIR) valve.
  11. Connector
    • Green for knock sensor 1.
    • Installed position, refer to Fig 2.
    • Contacts are gold plated.
  12. Connector
    • Gray for knock sensor 2.
    • Installed position, refer to Fig 2.
    • Contacts are gold plated.

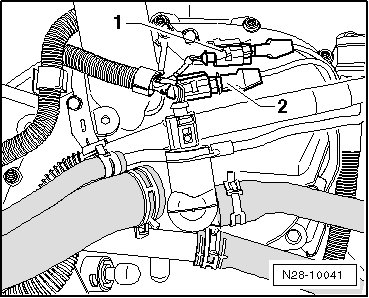

Fig 2: Installation Position Of Harness Connectors For Knock Sensors
GWWN28-10041Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Green for knock sensor 1
  2. Gray for knock sensor 2
