Special Tools

WARNING: This page is about a different car, the 2009 Volkswagen Rabbit, 2008 Volkswagen Rabbit, 2007 Volkswagen Rabbit, and 2006 Volkswagen Rabbit. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Hose Clamps up to 40 mm 3093
Shackle 10-222 A/12

Fig 1: Identifying Shackle 10 - 222 A/12
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Crankshaft Adapter T03003

Fig 2: Crankshaft Adapter T03003
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Socket SW 15V/175

Fig 3: Identifying Special Tool -- Socket Insert SW 15V/175
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Hose Clamps up to 25 mm Dia. 3094

Fig 4: 3094 Hose Clamps
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Torque Wrench (40-200 Nm) V.A.G 1332

Fig 5: Identifying Torque Wrench 40-200 Nm VAG 1332
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Fig 6: Identifying Special Service Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Hose Clip Pliers VAS 6340
Hose Clip Pliers VAS 6362
Engine-/Gearbox Jack V.A.G 1383 A
Tensioning Strap T10038
Step Ladder VAS 5085
Engine Holder Bracket T03000

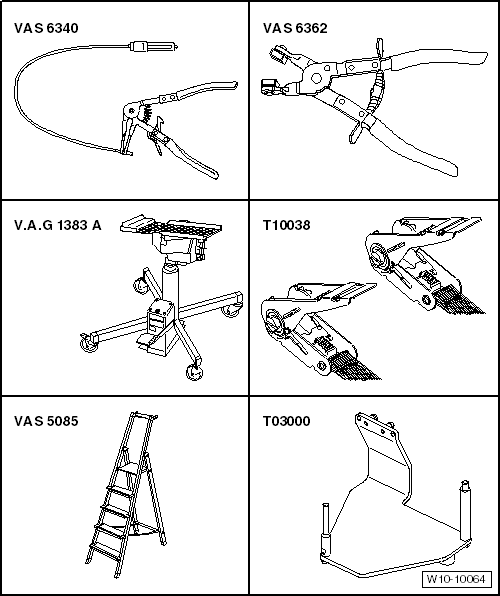

Fig 7: Identifying Special Tools -- Engine, Securing To Assembly Stand

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Lifting Tackle 3033
Shop Crane - Load Cap = 700-1200 KG VAS 6100
Engine and Transmission Holder VAS 6095
Engine Lateral Bracket T03001
Transport Arm T03002
