Special Tools

WARNING: This page is about a different car, the 2009 Volkswagen GTI and 2008 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Open End Spanner Insert AF 10 -V.A.G 1783/1-
Compression Tester -V.A.G 1763-
Spark Plug Removal Tool -3122 B-
Valve Seal Removal Tool -3364-
Valve Stem Seal Driver -3365-
Adapter -T40012-
Valve Cotters Asm/Disasm Device -VAS 5161-
Guide Plate for FSI Engine -VAS 5161/19B-
Engine Sling -2024 A-
Engine Support -T10014-
Torque Wrench (40-200 Nm) -V.A.G 1332-
Shop Crane - Load Cap = 700-1200KG -VAS 6100-
Engine Bung Set -VAS 6122-
Drip Tray for -VAS 6100- -VAS 6208-
Polydrive Bit and Drive Socket -T10070-
Thrust Piece -T10368-
Dial Gauge Holder -VW 387-

Fig 1: Identifying Dial Gauge Holder VW 387
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Dial Gauge 0-10 mm -VAS 6079-

Fig 2: Identifying Dial Gauge VAS 6079
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Torque Wrench (5-60 Nm) -V.A.G 1783-

Fig 3: Identifying Torque Wrench V.A.G 1783
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Bracket for Engine 10-222 A/1 (Eos only)

Fig 4: Identifying Engine Bracket 10-222 A/1
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Thrust Piece -T10354-

Fig 5: Identifying Thrust Piece T10354
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Pulling Hook -T20143/2-

Fig 6: Identifying Extractor Hook T20143
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Puller -T10394-

Fig 7: Identifying Puller T10055
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Puller -T10055-

Fig 8: Identifying Puller T10055 With Adapter T10055/3
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Adapter for the Dial Gauge -T10170- or -T10170 A-

Fig 9: Identifying Dial Gauge Adapter -T10170- or -T10170 A-
Courtesy of VOLKSWAGEN UNITED STATES, INC.

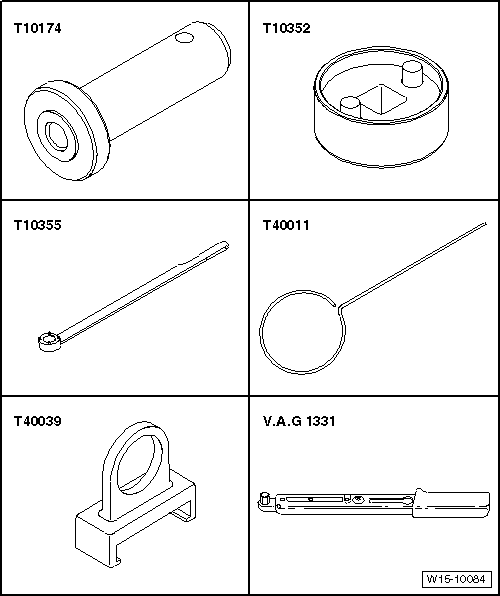

Fig 10: Identifying Thrust Piece -T10174-, Torque Wrench -V.A.G 1331- And Special Tools

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools and workshop equipment required

Thrust Piece -T10174-
Assembly Tool -T10352-
Counter Hold Tool -T10355-
Locking Pin -T40011-
Ignition Coil Puller -T40039-
Torque Wrench (5-50 Nm) -V.A.G 1331-

Fig 11: Identifying Engine Support Bridge And Special Tools

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools and workshop equipment required

Engine Support Bridge 10-222 A
Bracket with Spindle and Hook 10-222 A/10
Shackle 10-222 A/12
Frame 10-222 A/13 (GTI only)
Locking Pin -T10060 A-
Bits -T10099-
