Special tools and workshop equipment required

Adapter for oil filling VAS 6262
Drip tray for VAS 6100 VAS 6208
Torque wrench (5-50 Nm) VAG 1331

Fig 1: Identifying Torque Wrench (5 To 50 Nm) V.A.G 1331
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Vehicle diagnosis, testing and information system VAS 5051B

Fig 2: Identifying Vehicle Diagnosis, Testing And Information System VAS 5051B
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Vehicle diagnosis and service system VAS 5052

Fig 3: Identifying VAS 5052 Vehicle Diagnostic And Service Information System
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Sleeve VW 423

Fig 4: Identifying Sleeve VW 423
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Pulling hook T20143

Fig 5: Extractor Hook T20143
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Used oil collecting and extracting device VAG 1782

Fig 6: Identifying Oil Extractor V.A.G 1782
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Adapter 10-222A/18

Fig 7: Identifying Adapter 10 - 222 A/18
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Tensioning strap T10038

Fig 8: Identifying Special Tools -- Tensioning Belt T10038
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Socket and key T10061

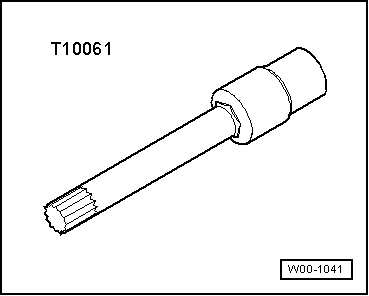

Fig 9: Socket And Key T10061
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Assembly tool T10071

Fig 10: Identifying Alignment Fixture T10071
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Bracket T10338

Fig 11: Identifying Bracket T10338
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Transmission support 3282

Fig 12: Transmission Support 3282
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Adjustment plate 3282/42A

Fig 13: Identifying Adjustment Plate 3282/42 A
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Engine and transmission jack VAG 1383A

Fig 14: Engine & Transmission Jack VAG 1383 A
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Fig 15: Identifying Special Tools -- Transmission (Passat 2006 With 3.2L V6 Engine (All Wheel Drive)), Removing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Engine support bridge 10-222A
Bracket with spindle and hook 10-222A/10
Hose clamps up to 25 mm dia. 3094 or
Hose clamps up to 40 mm 3093
Ball joint puller 3287A
Insert tool 18 mm T10179
Locating pins T10096
