Exhaust Pipe With Catalytic Converter Overview
WARNING: This page is about a different car, the 2009 Volkswagen Rabbit, 2008 Volkswagen Rabbit, 2007 Volkswagen Rabbit, and 2006 Volkswagen Rabbit. However, it is still accessible from the selected car via links, so may be relevant.

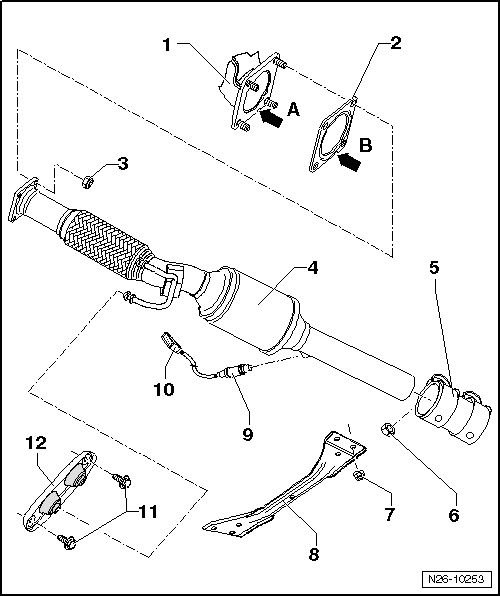

Fig 1: Front Exhaust Pipe With Catalytic Converter And Attachments (Engine Code: BGP), Assembly Overview
- Exhaust Manifold
- Coat the stud bolts with hot bolt paste.
- Gasket
- Always replace.
- Note the installation position:
Gasket recess -arrow A- must be located at the exhaust manifold recess -arrow B-.
- Nut
- 25 Nm
- Always replace.
- Exhaust Pipe with Catalytic Converter
- Protect from shocks and impact stress.
- With the coupling element.
- Do not bend the coupling element more than 10° - otherwise it may get damaged.
- Removing and installing, refer to EXHAUST PIPE WITH CATALYTIC CONVERTER .
- Align the exhaust system free of tension. Refer to EXHAUST SYSTEM, ALIGNING .
- Clamp
- Before tightening, ensure the exhaust system is free of tension. Refer to EXHAUST SYSTEM, ALIGNING .
- Installed position, refer to Fig 2.
- Nut
- 25 Nm
- Tighten the nuts evenly.
- Nut
- 23 Nm
- Front Cross Member
- Oxygen Sensor after Three Way Catalytic Converter -G130-
- 55 Nm
- When reusing an old oxygen sensor again, only use hot bolt paste to grease the threads. Do not let the paste get onto the slits of the oxygen sensor body.
- Connector
- Brown, 4 pin
- Installed position, refer to Fig 3.
- Bolt
- 25 Nm
- Suspended Mount
- Replace if damaged.

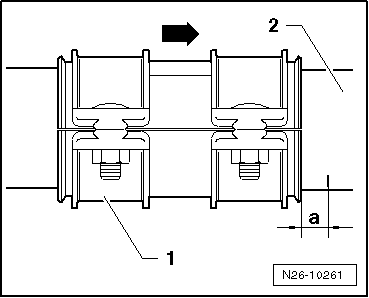

The -arrow- points in the direction of travel.
-- Align the clamp -1- to the mark on the pipe -2-.
-a - = 5 mm
The bolts must not project beyond the lower edge of the clamp.
The connector is located to the right, on the vehicle floor under the cover.
- Bracket
- Oxygen sensor after three way catalytic converter connector, brown

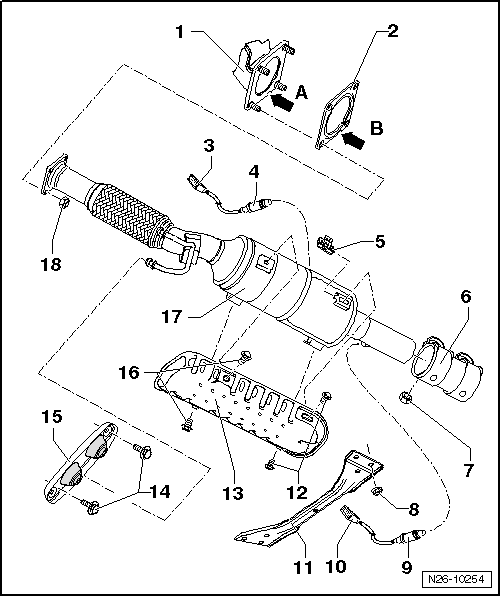

Fig 1: Front Exhaust Pipe With Catalytic Converter And Attachments (Engine Code BGQ), Assembly Overview
- Exhaust Manifold
- Coat the stud bolts with hot bolt paste.
- Gasket
- Always replace.
- Note the installed position:
Gasket recess -arrow A- must be located at exhaust manifold recess -arrow B-.
- Connector
- Black, 4 pin
- Oxygen Sensor in Bank 1 Center Three Way Catalytic Converter -G465-
- 55 Nm
- When reusing an old oxygen sensor again, only use hot bolt paste to grease the threads. Do not let the paste get onto the slits of the oxygen sensor body.
- Spring Nut
- Insert from the front.
- Clamp
- Before tightening, ensure the exhaust system is free of tension. Refer to EXHAUST SYSTEM, ALIGNING .
- Installed position, refer to Fig 2.
- Nut
- 25 Nm
- Tighten the nuts evenly.
- Nut
- 23 Nm
- Oxygen Sensor after Three Way Catalytic Converter -G130-
- 55 Nm
- When reusing an old oxygen sensor again, only use hot bolt paste to grease the threads. Do not let the paste get onto the slits of the oxygen sensor body.
- Connector
- Brown, 4 pin
- Installed position, refer to Fig 3.
- Front Cross Member
- Bolt
- 5 Nm
- Heat Shield
- For the catalytic converter.
- Bolt
- 25 Nm
- Suspended Mount
- Replace if damaged.
- Bolt
- 10 Nm
- Exhaust Pipe with Catalytic Converter
- Protect from shocks and impact stress.
- With the coupling element.
- Do not bend the coupling element more than 10° - otherwise it may get damaged.
- Removing and installing, refer to EXHAUST PIPE WITH CATALYTIC CONVERTER .
- Align the exhaust system free of tension. Refer to EXHAUST SYSTEM, ALIGNING .
- Nut
- 25 Nm
- Always replace.
The -arrow- points in the direction of travel.
-- Align the clamp -1- to the mark on the pipe -2-.
-a - = 5 mm
The bolts must not project beyond the lower edge of the clamp.
Fig 3: Disconnecting 4-Pin Electrical Harness Connector From Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC) G130
The connector is located to the right, on the vehicle floor under the cover.
- Oxygen sensor after three way catalytic converter connector, brown
- Bracket
- Oxygen sensor in bank 1 center three way catalytic converter connector, black
