Exhaust Manifold Overview

WARNING: This page is about a different car, the 2009 Volkswagen Rabbit, 2008 Volkswagen Rabbit, 2007 Volkswagen Rabbit, and 2006 Volkswagen Rabbit. However, it is still accessible from the selected car via links, so may be relevant.

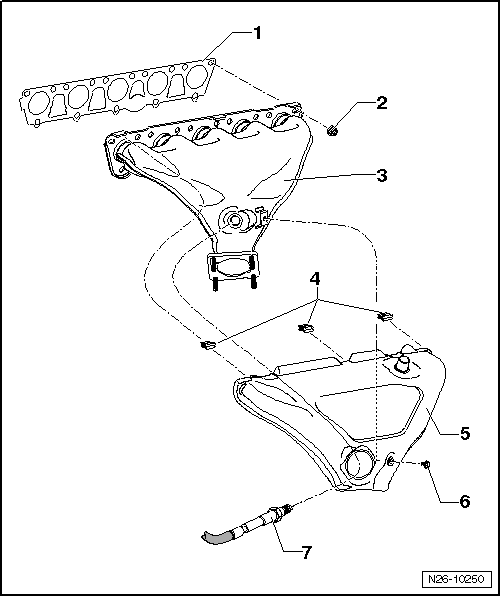

Fig 1: Exhaust Manifold With Attachments, Assembly Overview
GWWN26-10250Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Gasket
    • Always replace.
  2. Nut
    • 25 Nm
    • Always replace.
  3. Exhaust Manifold
    • Coat the stud bolts on the cylinder head with hot bolt paste.
    • Remove upward.
  4. Clip
  5. Heat Shield
  6. Bolt
    • 10 Nm
  7. Heated Oxygen Sensor -G39-
    • 55 Nm
    • Use the ring spanner 7-piece set 3337 for removal and installation.
    • When reusing an old oxygen sensor again, only use hot bolt paste to grease the threads. Do not let the paste get onto the slits of the oxygen sensor body.
    • Connector color: Black.
