Special Tools

WARNING: This page is about a different car, the 2009 Volkswagen Rabbit, 2008 Volkswagen Rabbit, 2007 Volkswagen Rabbit, and 2006 Volkswagen Rabbit. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Cooling System Tester V.A.G 1274 B

Fig 1: Cooling System Tester V.A.G 1274 B
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Adapter V.A.G 1274/9

Fig 2: Adapter V.A.G 1274/9
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

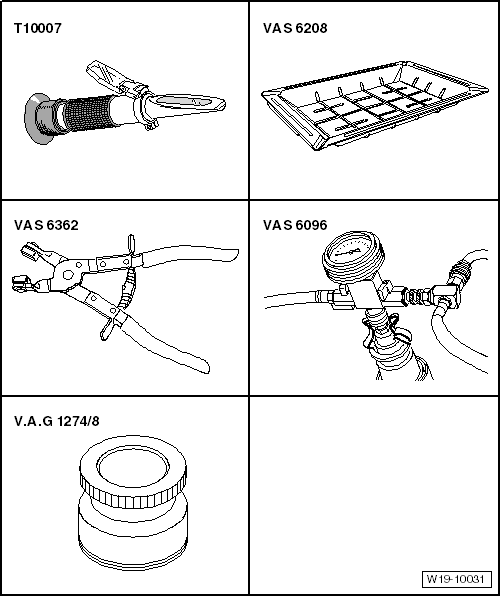

Fig 3: Identifying Special Tools -- Refractometer, Drip Tray, Hose Clip Pliers, Cooling System Charge Unit & Adapter

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Adapter V.A.G 1274/8
Drip Tray For VAS 6100 VAS 6208
Hose Clip Pliers VAS 6362
Cooling System Charge Unit VAS 6096
Refractometer T10007

Fig 4: Identifying Special Tools -- Coolant Pump, Removing And Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Engine Support Bridge 10-222 A
Engine Support Adapter 10-222 A/3
Engine Support Feet 10-222 A/8
Shackle 10-222 A/12
Torque Wrench (5-50 Nm) V.A.G 1331
Torque Wrench (40-200 Nm) V.A.G 1332
