Selector Mechanism Overview, From 03.09

WARNING: This page is about a different car, the 2009 Volkswagen Rabbit, 2008 Volkswagen Rabbit, 2007 Volkswagen Rabbit, and 2006 Volkswagen Rabbit. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Move the selector lever into the "P" position and set the parking brake before working with the engine running.

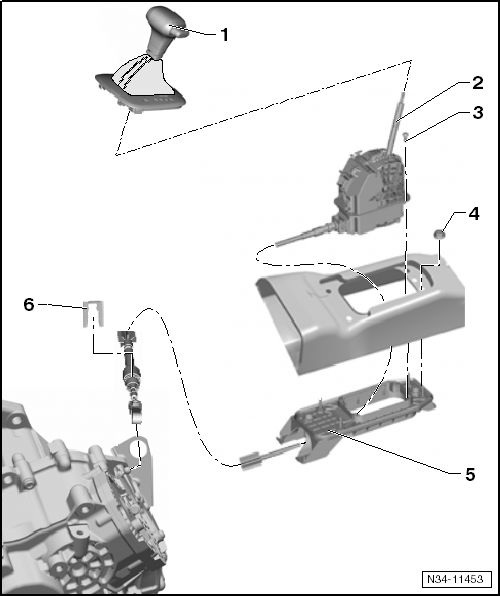

Fig 1: Selector Mechanism Overview, From 03.09

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Selector Handle with Cover
- Do not remove the handle unnecessarily. Unclip only the cover for the emergency release. Refer to SELECTOR LEVER, MANUAL RELEASE .
- Removing and installing, refer to SELECTOR LEVER HANDLE .
Selector Lever and Selector Mechanism with Selector Lever Cable
- With the shift lock solenoid -N110-.
- Do not grease the cable.
- Removing and installing, refer to SELECTOR LEVER AND MECHANISM WITH SELECTOR LEVER CABLE, FROM 03.09 .
- Checking, refer to SELECTOR LEVER CABLE, CHECKING .
- Adjusting, refer to SELECTOR LEVER CABLE, ADJUSTING .
Bolt
- 8 Nm
Nut
- 8 Nm
- Quantity: 4
Selector Housing
Retainer
- Always replace after removing.
