Special Tools

WARNING: This page is about a different car, the 2009 Volkswagen GTI and 2008 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Hose Clip Pliers -VAS 6362-
Engine Bung Set -VAS 6122-
Multipoint Socket -T10035-
Insert Tool 18 mm -T10179-
Socket SW15 V/175
Shop Crane - Load Cap = 700-1200KG -VAS 6100-
Engine and Transmission Holder -VAS 6095-
Bracket for Engine 10-222 A/1 (Eos only)

Fig 1: Identifying Bracket for Engine 10-222 A/1 (Eos Only)
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Engine Support -T10359-

Fig 2: Identifying Engine Support -T10359-
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 3: Identifying Engine Support Bridge -10-222 A- And Special Tools

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools and workshop equipment required

Engine Support Bridge 10-222 A
Bracket with Spindle and Hook 10-222 A/10
Shackle 10-222 A/12
Adapter 10-222 A/13 (GTI only)
Torque Wrench (5-50 Nm) -V.A.G 1331-
Torque Wrench (40-200 Nm) -V.A.G 1332-

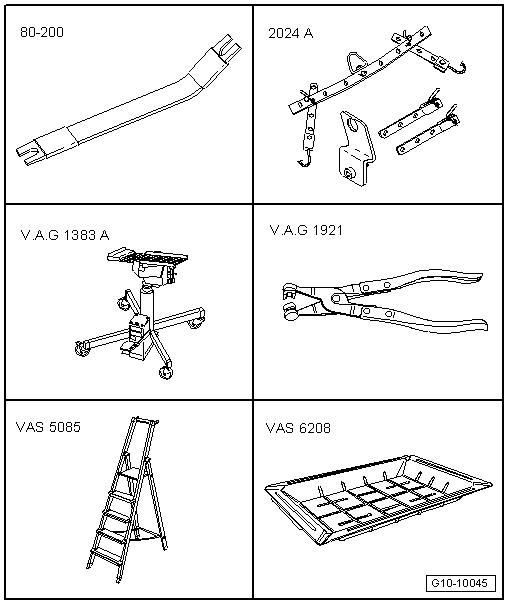

Fig 4: Identifying Engine Sling And Additional Shop Tools

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools and workshop equipment required

Pry Lever-Rmv Outside Mirror -80-200-
Engine Sling -2024 A-
Engine-/Gearbox Jack -V.A.G 1383 A-
Hose Clip Pliers -V.A.G 1921-
Step Ladder -VAS 5085-
Drip Tray for -VAS 6100- -VAS 6208-
