Special tools and workshop equipment required

Guide Sleeve -T20097-
Micrometer 75-100 mm -VAS 6071-
Cylinder Gauge -VAS 6078-
Dial Gauge Holder -VW 387-

Fig 1: Identifying Dial Gauge Holder VW 387
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Dial Gauge 0-10 mm -VAS 6079-

Fig 2: Identifying Dial Gauge VAS 6079
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Bracket for Engine 10-222 A/1 (Eos only)

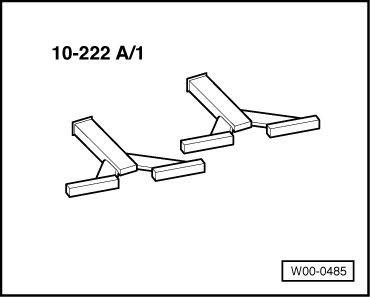

Fig 3: Identifying Bracket for Engine 10-222 A/1 (Eos only)
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Counter Hold Tool -T10355-

Fig 4: Identifying Counter Hold Tool -T10355-
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Flywheel Retainer -3067-

Fig 5: Identifying 3067 Counter-Hold Tool
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Flywheel Lock Adapter -VW 558-

Fig 6: Identifying Counterhold VW 558
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Kukko Support 22/1

Fig 7: Identifying Kukko Support 22/1
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Kukko Extractor 14.5-18.5 mm 21/2

Fig 8: Identifying Kukko Extractor 14.5-18.5 mm 21/2
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Drift -VW 207 C-

Fig 9: Identifying Drift -VW 207 C-
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 10: Identifying Engine Support Bridge And Special Tools

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools and workshop equipment required

Engine Support Bridge 10-222 A
Bracket with Spindle and Hook 10-222 A/10
Shackle 10-222 A/12
Adapter 10-222 A/13 (GTI only)
Locking Pin -T10060 A-
Torque Wrench (5-50 Nm) -V.A.G 1331-
