Special tools and workshop equipment required

Kukko puller (12-14.5 mm)21/2
Connecting pin T10027

Fig 1: Connecting Pin T10027
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Assembly tool T10122

Fig 2: Identifying Pulling Fixture T10122
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Pulling hook T20143

Fig 3: Extractor Hook T20143
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Puller T10055 with adapter T10055/3

Fig 4: Identifying Puller T10055
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Centering mandrel 3176 or Drift VW 207C

Fig 5: 3176 Centering Mandrel
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Piston insertion funnel T10147

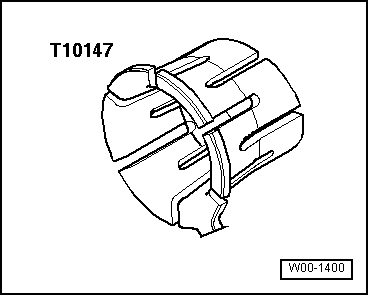

Fig 6: Identifying Funnel T10147
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Fig 7: Identifying Special Tools - Sealing Flange For Crankshaft (Harmonic Balancer Side), Replacing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

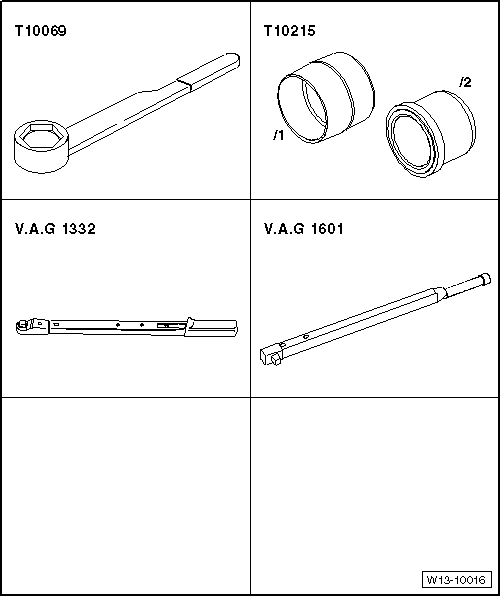

Special tools and workshop equipment required

Counter holder tool T10069
Assembly tool T10215
Torque wrench VAG 1601
Torque wrench (40-200 Nm) VAG 1332
