Piston, Installing

WARNING: This page is about a different car, the 2008 Volkswagen R32. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Piston insertion funnel T10147

NOTE:

If a new T10147 is used to install the pistons, first pass the piston with lubricated piston rings through the funnel twice and remove the resulting metal shavings if necessary. Only then install the piston with rings.

Procedure

-- Push the piston by hand into the lubricated T10147. The flat side of the piston crown must face toward the funnel pin -arrow-.

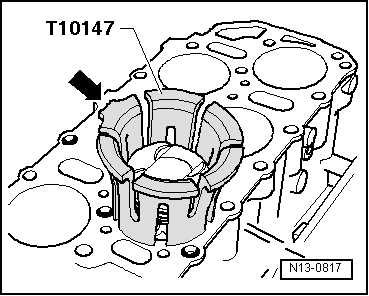

Fig 1: Identifying Piston Installation Tool T10147

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Hold the T10147 (with piston inserted) on the upper edge and press the piston down into the T10147 with both thumbs.

-- Push the piston down until it protrudes approximately 15 mm from the lower edge of the T10147.

-- Install the piston into the appropriate cylinder bore. The funnel pin -arrow- must point toward the center of the cylinder block.

-- Press the T10147 tightly against the cylinder block and push the piston in.
