Special Tools

WARNING: This page is about a different car, the 2008 Volkswagen R32. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Cooling system tester VAG 1274
Adapter VAG 1274/9
Engine support bridge 10-222 A
Shackle 10-222A/12
Adapter 10-222A/13
Adapter 10-222A/18
Bracket with spindle and hook 10-222A/10
Torque wrench (40-200 Nm) VAG 1332
Voltage tester VAG 1527B

Fig 1: Identifying Diode Test Lamp V.A.G 1527 B
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Connector test set VAG 1594C

Fig 2: Connector Test Set V.A.G 1594C
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

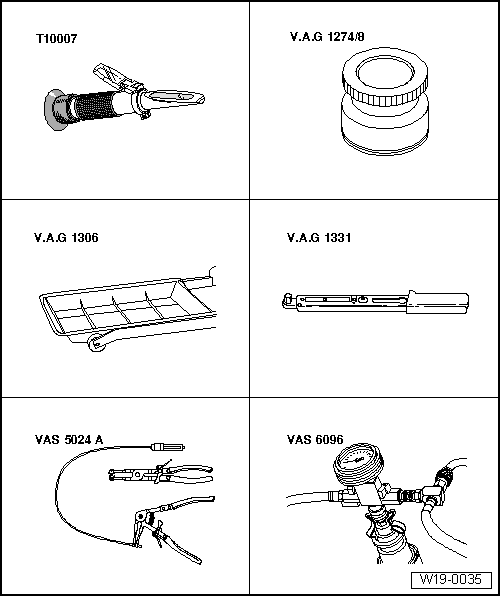

Fig 3: Identifying Special Tools -- Cooling System, Draining And Filling

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Refractometer T10007
Adapter VAG 1274/8
Drip tray VAG 1306 or drip tray for VAS 6100 VAS 6208
Torque wrench (5-50 Nm) VAG 1331
Spring type clip pliers VAS 5024A
Cooling system charge unit VAS 6096
