Coolant Pump

WARNING: This page is about a different car, the 2008 Volkswagen R32. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Engine support bridge 10-222 A with bracket with spindle and hook 10-222A/10, shackle 10-222A/12, adapter 10-222A/13 and adapter 10-222A/18
Refractometer T10007
Drip tray VAG 1306 or drip tray for VAS 6100 VAS 6208
Torque wrench (5-50 Nm) VAG 1331
Torque wrench (40-200 Nm) VAG 1332
Spring type clip pliers VAS 5024A

Removing

-- Drain the cooling system. Refer to DRAINING AND FILLING .

-- Remove the front section of the right wheel housing liner. Refer to FRONT WHEEL HOUSING LINER .

-- Remove the ribbed belt. Refer to RIBBED BELT .

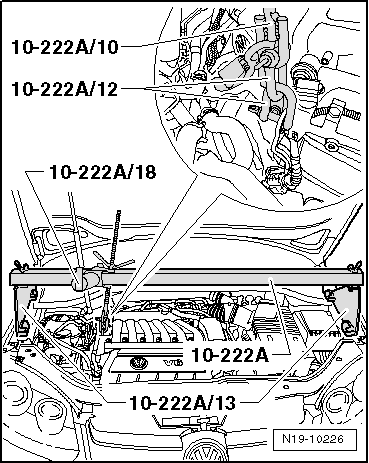

-- Install the 10-222A with the 10-222A/10, 10-222A/12, 10-222A/13 and the 10-222A/18 as shown and support the engine in the installed position at the right lifting eye.

Fig 1: Identifying Engine Support Bridge 10-222 A with Hooks 10-222 A/10, Shackle 10-222 A/12, Adapter 10-222 A/13 And Adapter 10-222 A/18

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

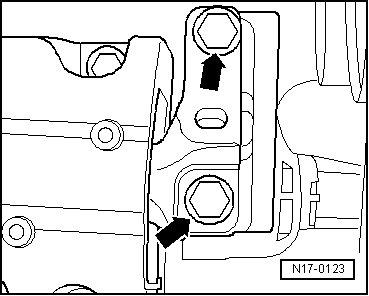

-- Remove the engine mount to engine mount bracket bolts -arrows-.

Fig 2: Identifying Engine Side Of Assembly Mounting At Engine Bracket At Top

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Only lower the engine 40 mm using the 10-222A.

-- Remove the coolant pump pulley. To do so, counter hold the pulley using a drift (standard).

-- Remove the coolant pump bolts -1-.

Fig 3: Coolant Pump Securing & Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

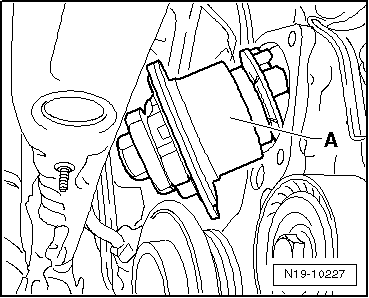

-- Remove the coolant pump -A- as shown.

Fig 4: Identifying Tip Out Coolant Pump

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

Installation is performed in the reverse order of removal, noting the following:

-- Lubricate the new O-ring with coolant.

-- Install the coolant pump.

-- Tighten the coolant pump bolts. Tightening specification: 8 Nm.

-- Install the coolant pump pulley and bolts. Tightening specification: 20 Nm.

-- Raise the engine again using the 10-222A and secure it with new engine mount to engine mount bracket bolts.

-- Align the engine mount as follows:

There must be a distance -a- of at least 10 mm present between the engine mount bracket -2- and the right longitudinal member.

Fig 5: Identifying Casting Edge On Engine Support Location
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Casting edge on the engine mount bracket -2- must stand parallel to the engine mount arm -1-.

NOTE:

Tightening specifications from the mount, refer to FASTENER TIGHTENING SPECIFICATIONS .

-- Install the ribbed belt. Refer to RIBBED BELT .

-- Fill the cooling system. Refer to DRAINING AND FILLING .
