Special Tools

Special tools and workshop equipment required

• Holding fixture VW 313
• Tube 42 mm dia. VW 516
• Thrust piece 40-105
• Transmission holder T10108
• Stop plate T10108/1
• Used oil collection and extraction device VAG 1782
  Fig 1: Identifying Oil Extractor V.A.G 1782

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Socket and extended bit T10107
  Fig 2: Identifying Multi-Point Socket T10107 A

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Pulling hook T20143
  Fig 3: Identifying Extractor Hook T20143

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Slide hammer-complete set VW 771
  Fig 4: Identifying Slide Hammer VW 771

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Pulling hook VW 771/37
  Fig 5: Identifying Additional Part -VW 771/37- For -VW 771-

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Thrust piece T10298
  Fig 6: Identifying Thrust Piece T10298

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Thrust piece T10243
  Fig 7: Identifying Thrust Piece T10243

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Fig 8: Identifying Special Tools -- Needle Bearing (Polygon Bearing) For Right Flanged Shaft, Replacing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Thrust plate VW 401
• Thrust plate VW 402
• Punch VW 407
• Thrust disc VW 412
• Wheel bearing assembly set 3253
• Assembly tool T10047

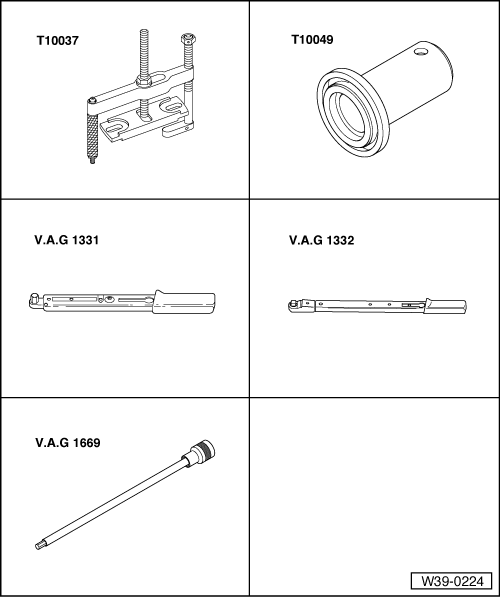

Fig 9: Identifying Special Tools -- Right Flange Shaft Sealing Ring (All Wheel Drive), Replacing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Puller T10037
• Thrust piece T10049
• Torque wrench (5-50 Nm) VAG 1331
• Torque wrench (40-200 Nm) VAG 1332
• Hex extension VAG 1669

Fig 10: Identifying Special Tools -- Bevel Box Output Flange Seal, Replacing (Bevel Box Removed)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Taper roller bearing puller VAG 1582
• Attachment VAG 1582/6A
• Torque wrench VAG 1601
• 2 arm puller Kukko 20/10 -1-
• Three arm puller Kukko 45-2
