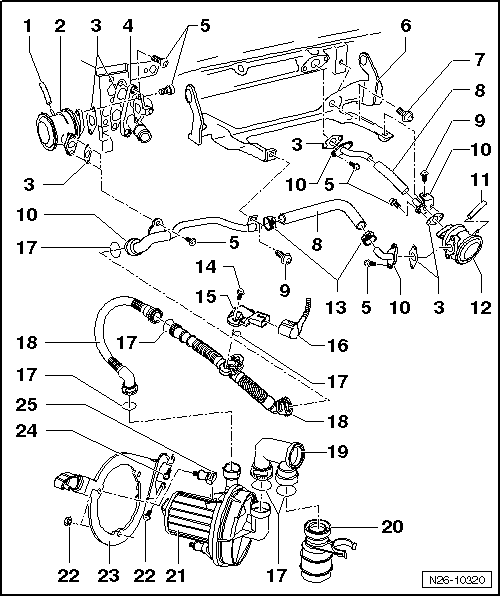

Secondary Air Injection System Components Assembly Overview
WARNING: This page is about a different car, the 2008 Volkswagen R32. However, it is still accessible from the selected car via links, so may be relevant.
For the Secondary Air Injection (AIR) solenoid valve and AIR solenoid valve 2. Refer to VACUUM SYSTEM ASSEMBLY OVERVIEW .
- for Secondary Air Injection (AIR) Solenoid Valve -N112-
- See -item 6- in VACUUM SYSTEM ASSEMBLY OVERVIEW .
- Left Combination Valve
- Checking, refer to SECONDARY AIR INJECTION COMBINATION VALVES, CHECKING .
- Remove the throttle valve control module to remove.
- Gasket
- Always replace.
- Connecting Piece
- For the combination valve.
- Bolt, 10 Nm
- Intake Manifold Support, Front
- Intake manifold removing and installing. Refer to INTAKE MANIFOLD .
- Bolt, 20 Nm
- Connecting Hose
- Bolt, 9 Nm
- Connecting Piece
- to Secondary Air Injection (AIR) Solenoid Valve 2 -N320-
- See -item 10- in VACUUM SYSTEM ASSEMBLY OVERVIEW .
- Right Combination Valve
- Checking, refer to SECONDARY AIR INJECTION COMBINATION VALVES, CHECKING .
- Remove the intake manifold to remove. Refer to INTAKE MANIFOLD .
- Spring Type Clip
- Bolt, 2 Nm
- Secondary Air Injection (AIR) Sensor 1 -G609-
- Electrical Connector
- O-ring
- Replace if damaged.
- Pressure Hose
- Ensure the hose is securely seated.
- Connecting Piece
- Air Filter Housing
- Clean if contaminated.
- Secondary Air Injection (AIR) Pump Motor -V101-
- Bolt, 10 Nm
- Bracket
- For the AIR pump motor.
- Bolt, 20 Nm
- Rubber Bushing
