Engine, removing and installing

Notes on removing, refer to Notes on removing

Securing engine to assembly stand, refer to Securing engine to assembly stand

Notes on installing, refer to Notes on installing

Tightening torques, refer to Torque specifications

Aligning engine and transmission mounts, refer to Engine and transmission mounts, aligning  under Engine and transmission mounts, aligning

Assembly mounting, refer to Assembly mounting

Additional information and repair work on vehicles with air conditioning, refer to Additional information and assembly work on vehicles with air conditioning  under Additional information and assembly work on vehicles with air conditioning

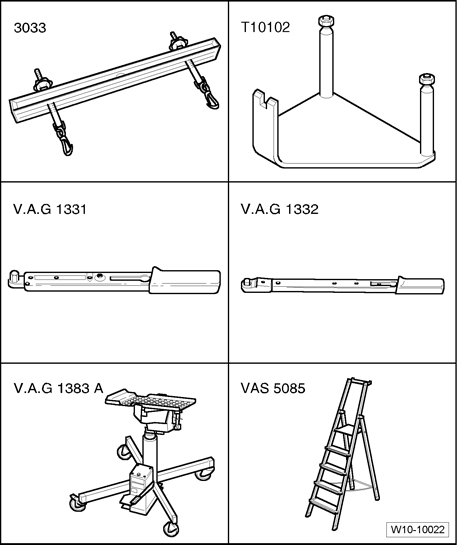

Fig 1: Identifying Special Tools - Engine, Removing And Installing (1 Of 2)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

• Lifting tackle 3033
• Engine bracket T10102
• Torque wrench V.A.G 1331
• Torque wrench V.A.G 1332

• Engine/transmission jack V.A.G 1383 A
• Step ladder VAS 5085

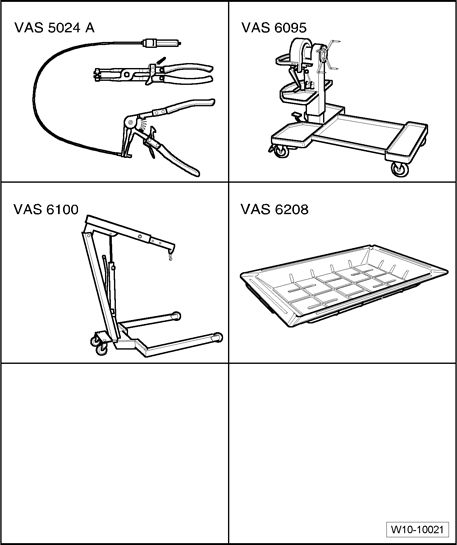

Fig 2: Identifying Special Tools - Engine, Removing And Installing (2 Of 2)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

• Spring-type clip pliers VAS 5024A
• Engine and transmission holder VAS 6095
• Shop crane VAS 6100
• Drip tray for workshop crane VAS 6208

• G 000 100 Grease (vehicles with manual transmission)
• Cable tie
