Mode 6

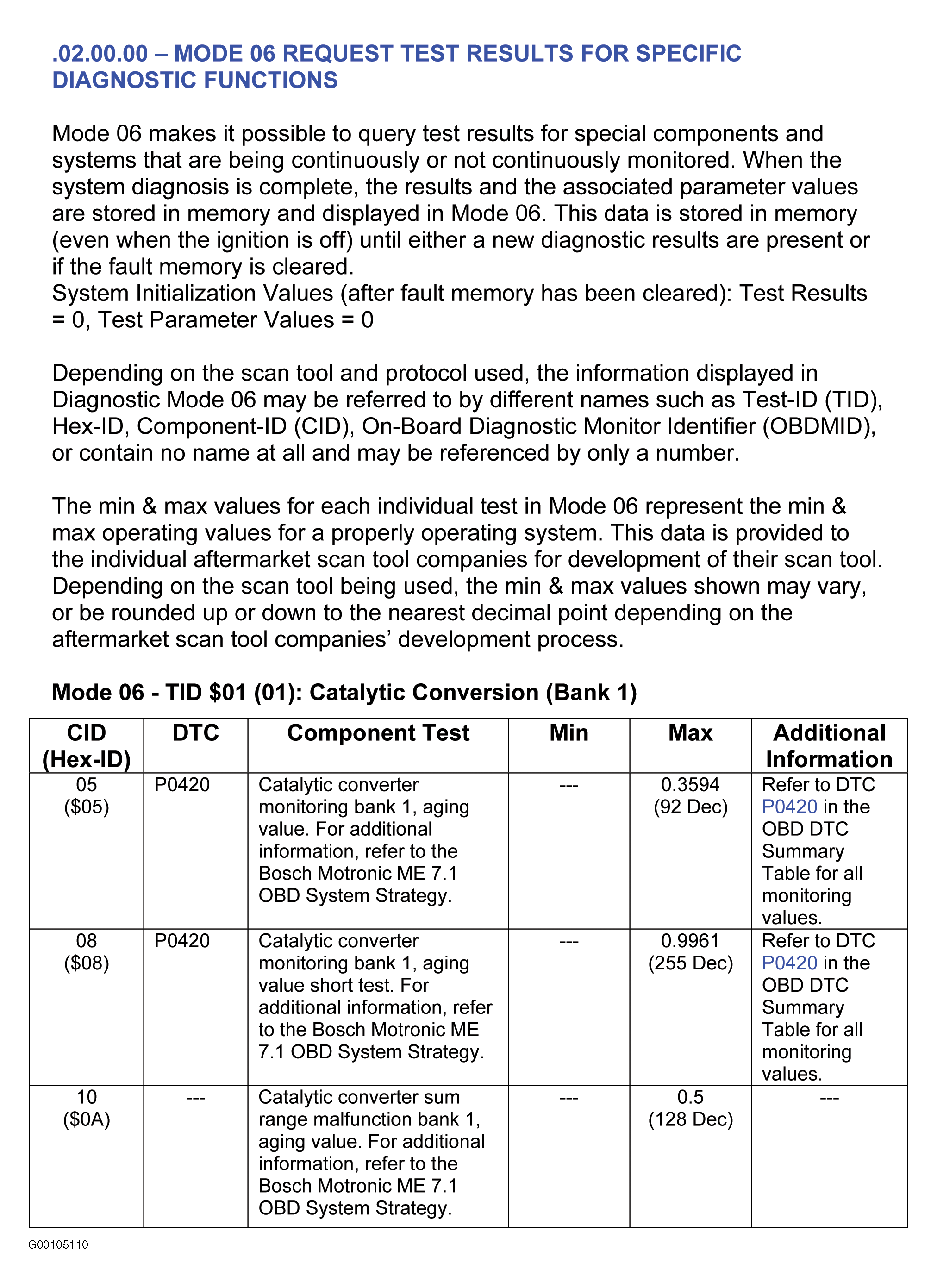

Fig 1: Mode 6 Data (1999-00 2.8L AFP) (1 Of 3)

G00105110

Courtesy of VOLKSWAGEN UNITED STATES, INC.

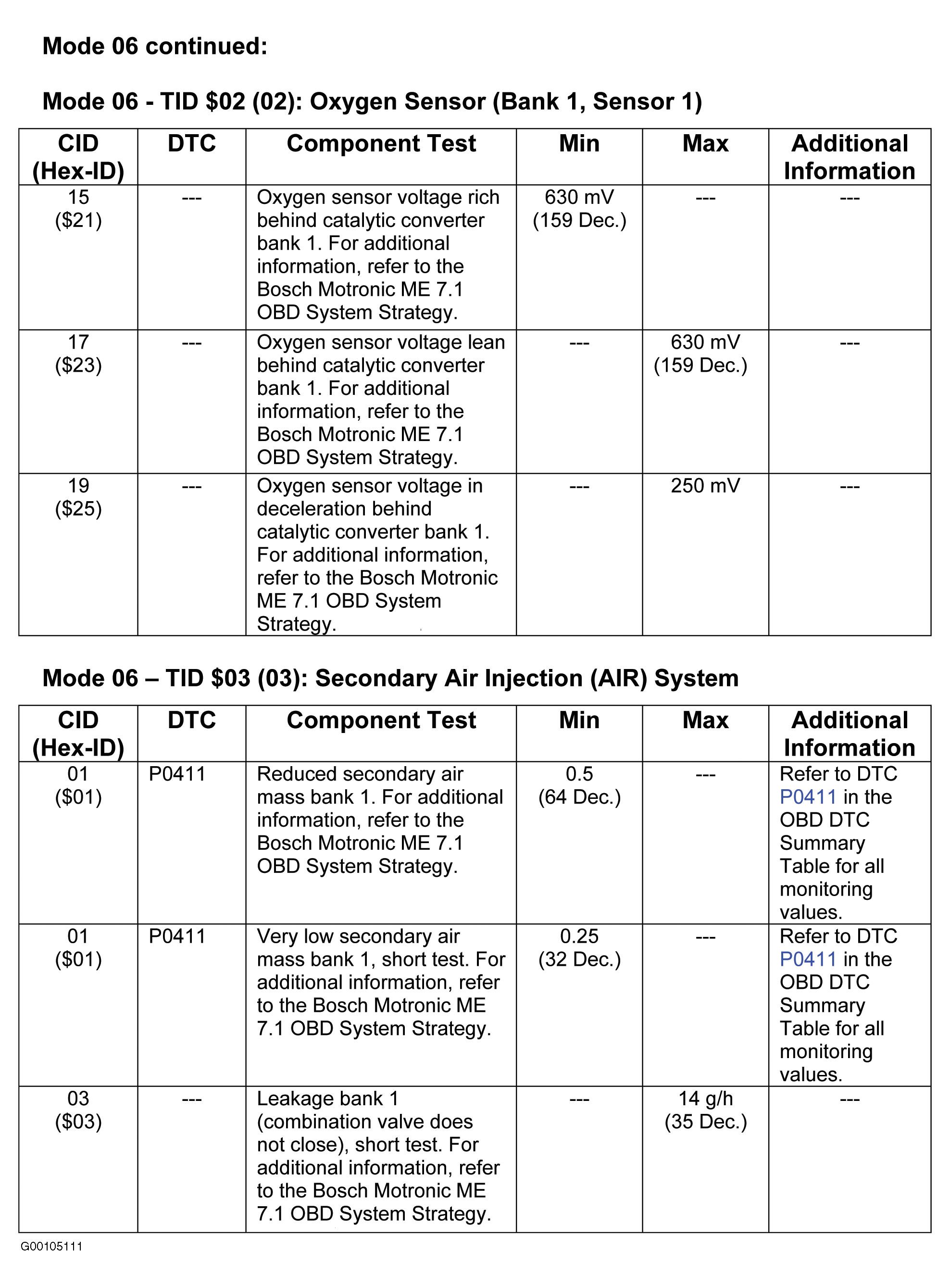

Fig 2: Mode 6 Data (1999-00 2.8L AFP) (2 Of 3)

G00105111

Courtesy of VOLKSWAGEN UNITED STATES, INC.

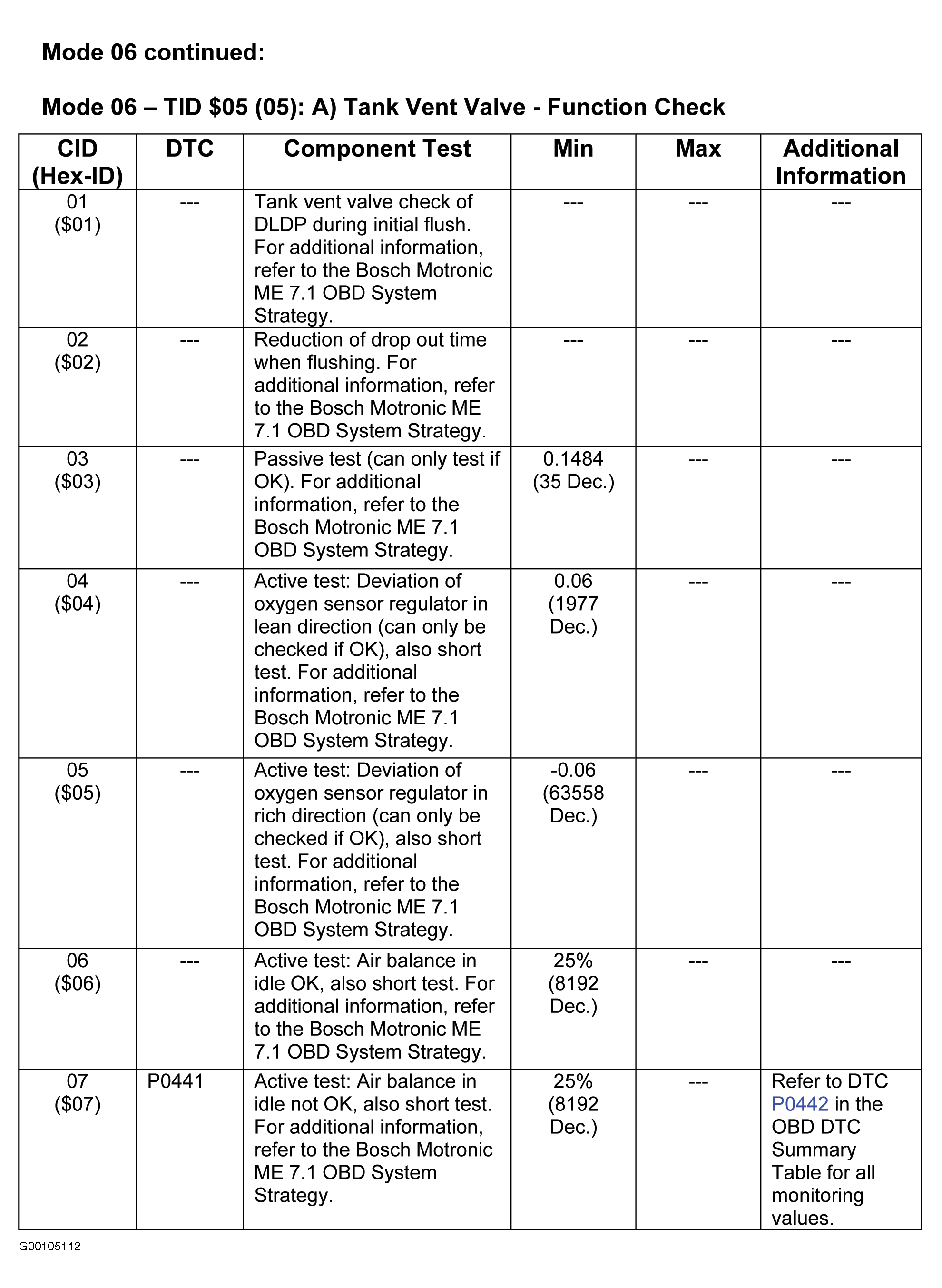

Fig 3: Mode 6 Data (1999-00 2.8L AFP) (3 Of 3)

G00105112

Courtesy of VOLKSWAGEN UNITED STATES, INC.

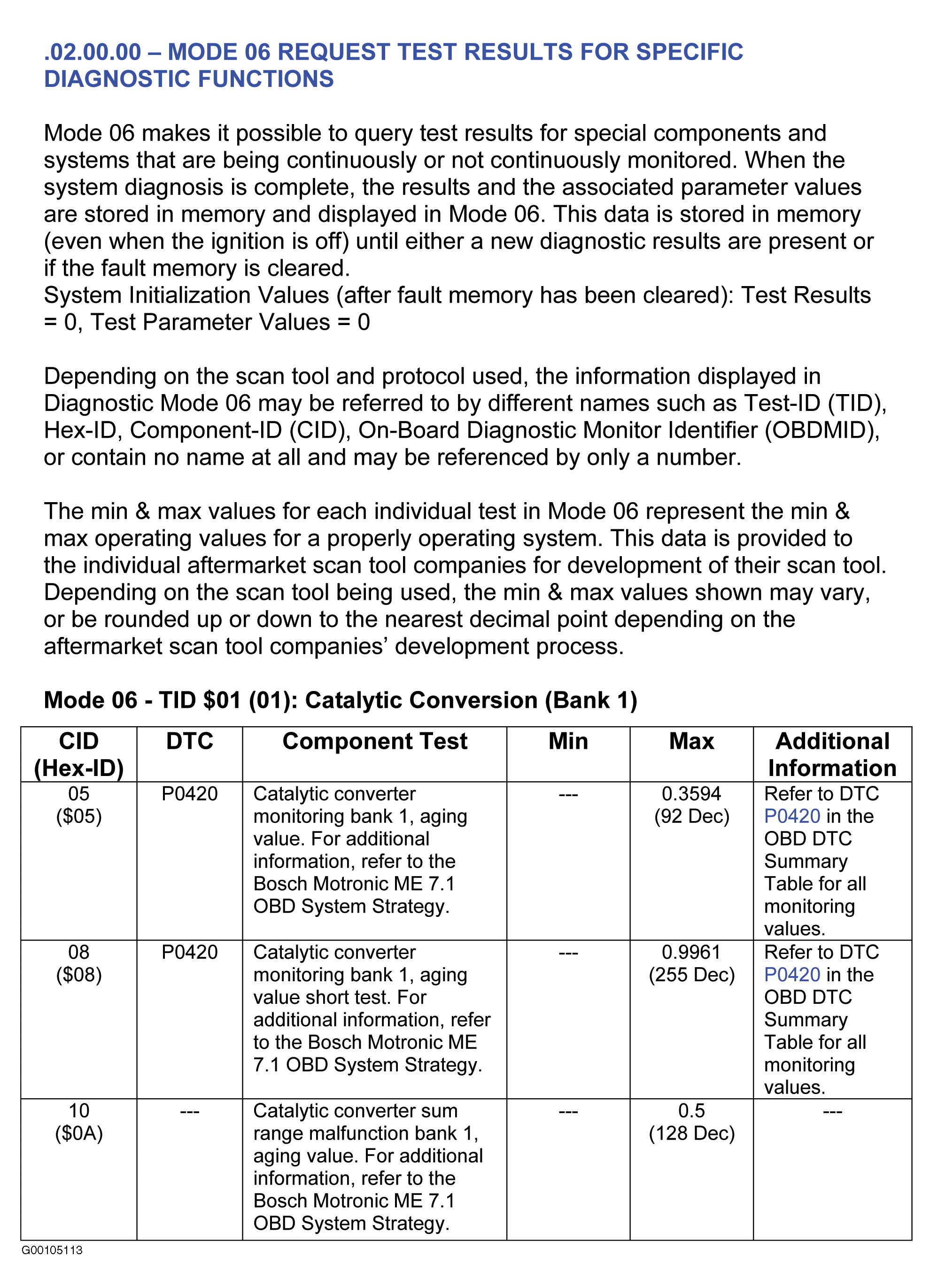

Fig 4: Mode 6 Data (2001 2.8L AFP) (1 Of 4)

G00105113

Courtesy of VOLKSWAGEN UNITED STATES, INC.

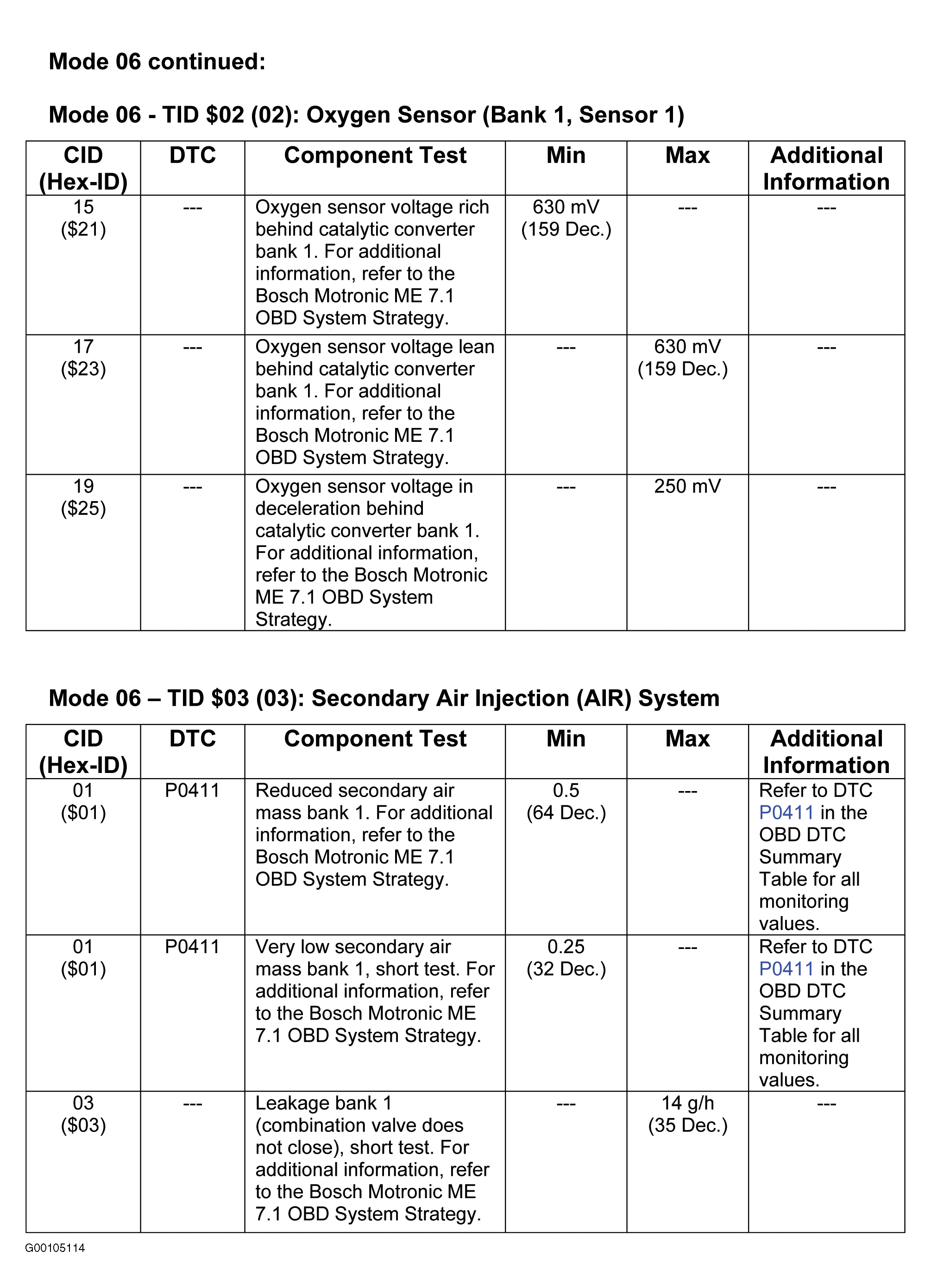

Fig 5: Mode 6 Data (2001 2.8L AFP) (2 Of 4)

G00105114

Courtesy of VOLKSWAGEN UNITED STATES, INC.

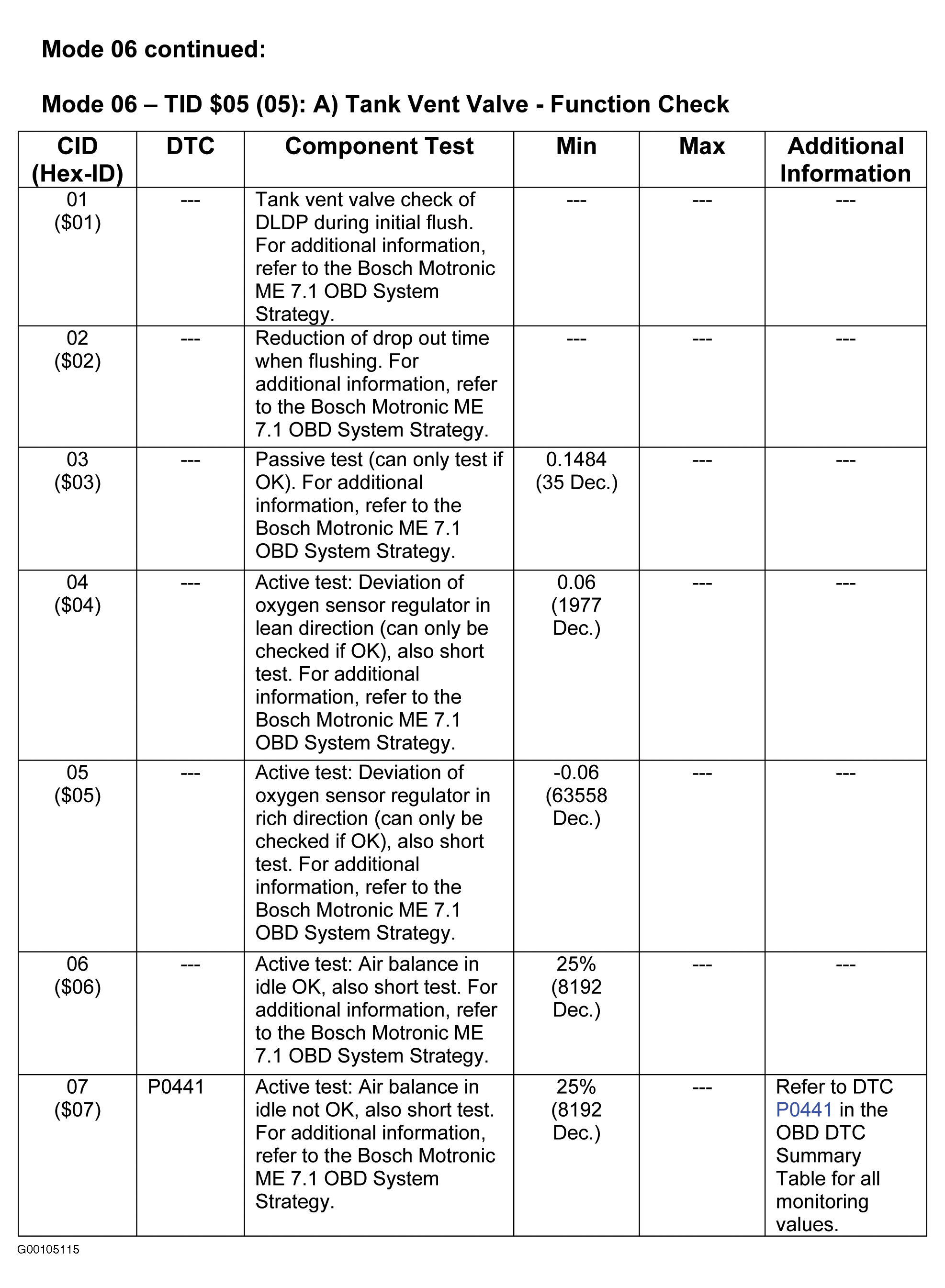

Fig 6: Mode 6 Data (2001 2.8L AFP) (3 Of 4)

G00105115

Courtesy of VOLKSWAGEN UNITED STATES, INC.

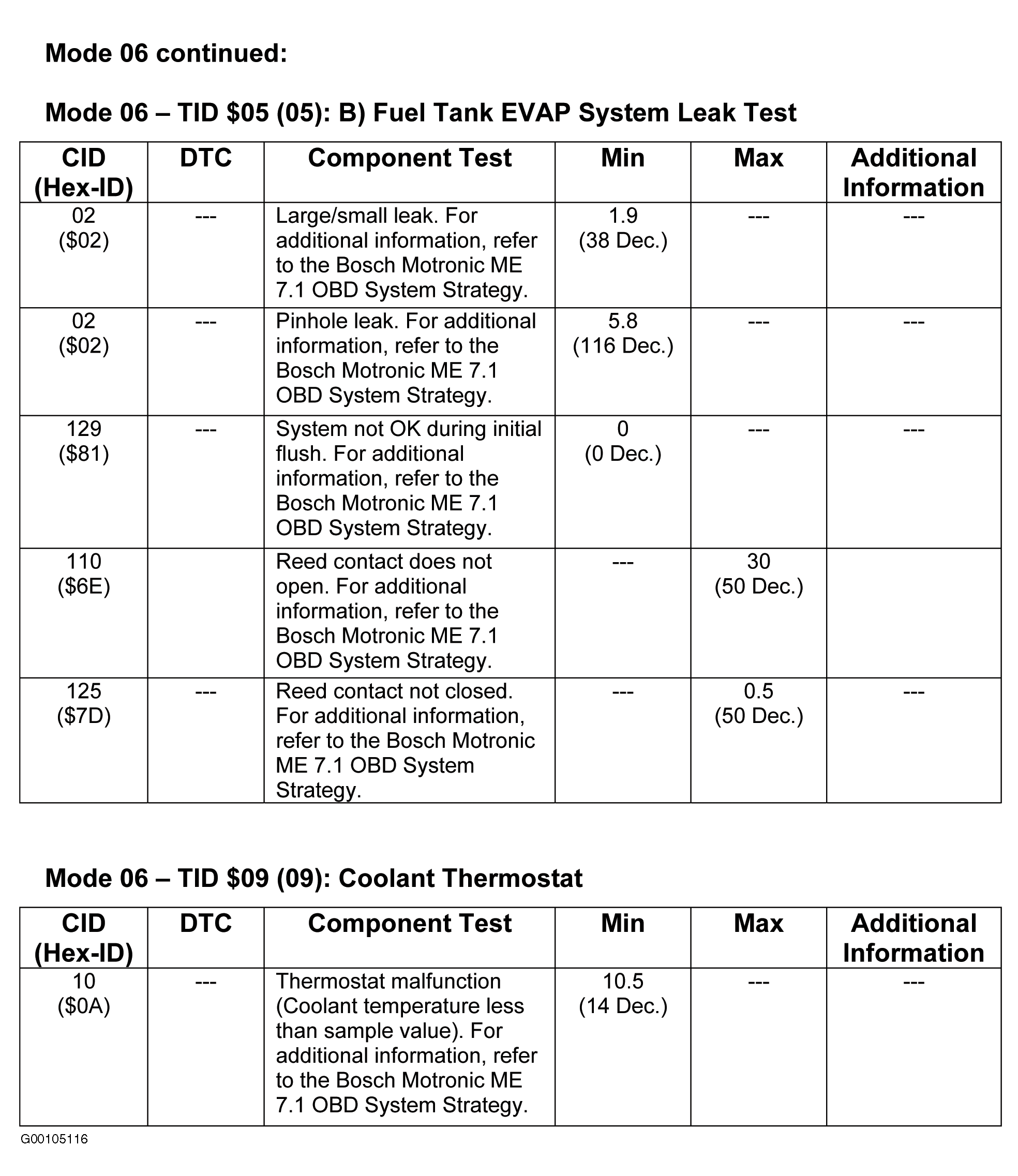

Fig 7: Mode 6 Data (2001 2.8L AFP) (4 Of 4)

G00105116

Courtesy of VOLKSWAGEN UNITED STATES, INC.

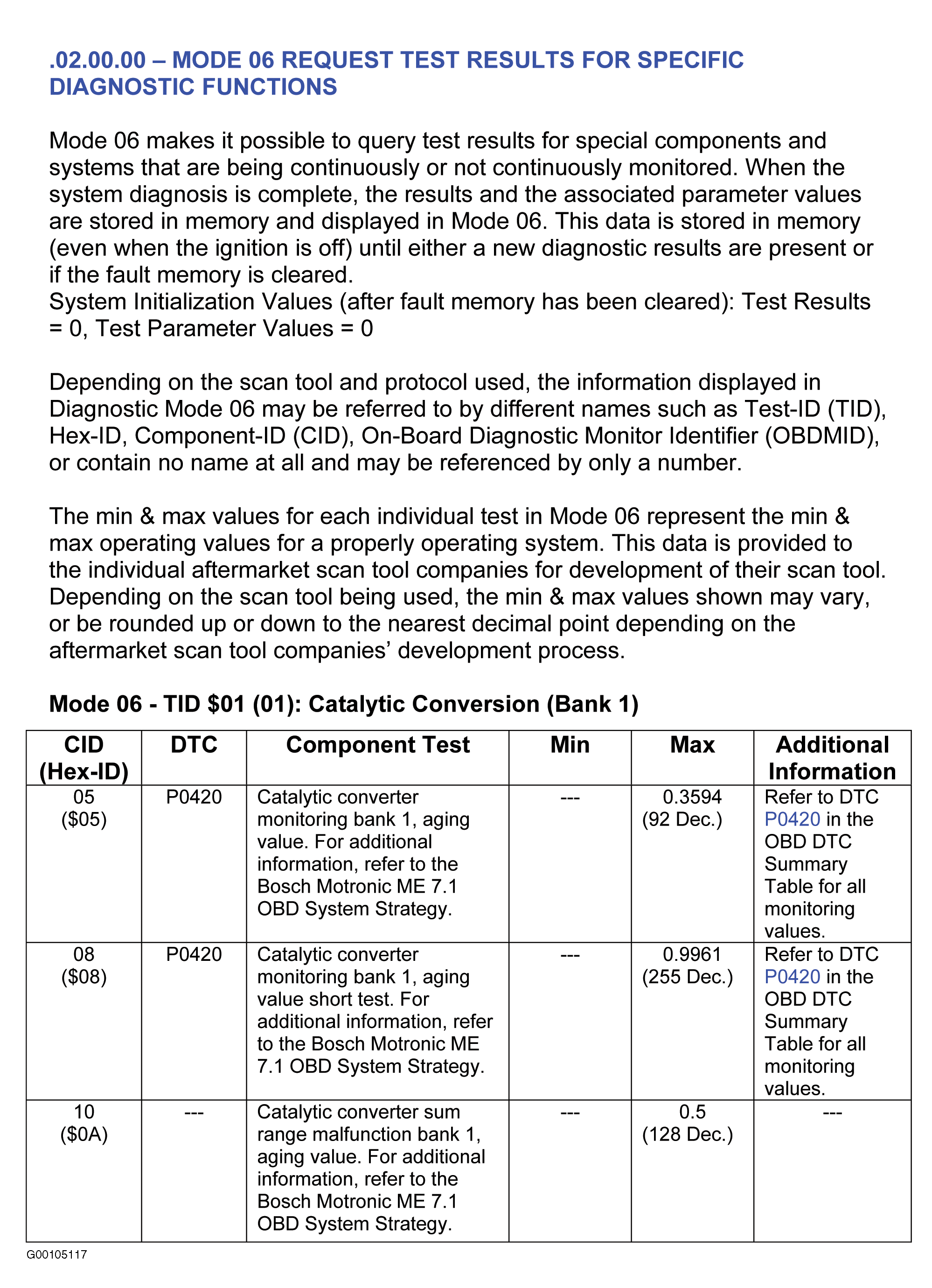

Fig 8: Mode 6 Data (2002 2.8L AFP) (1 Of 4)

G00105117

Courtesy of VOLKSWAGEN UNITED STATES, INC.

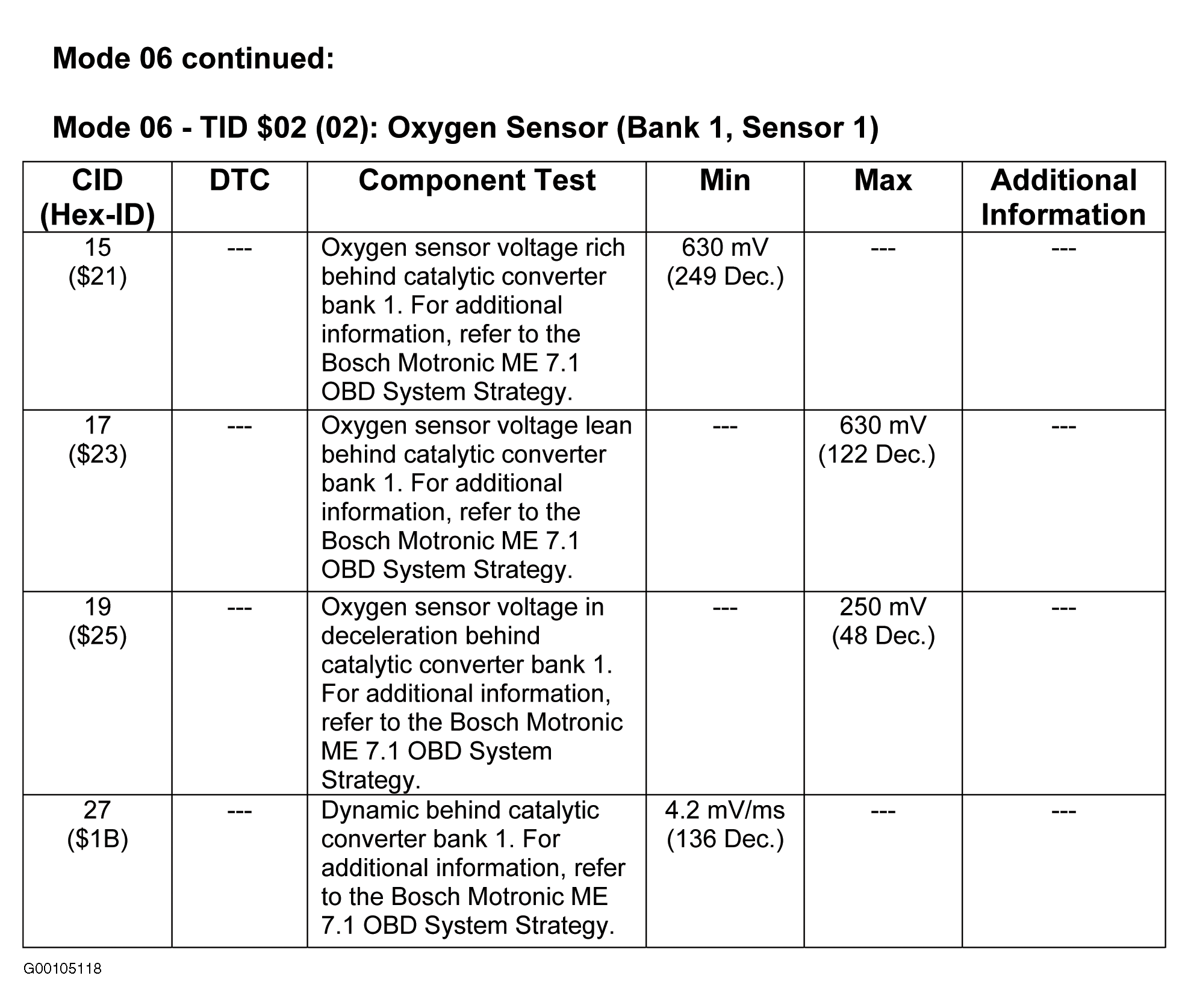

Fig 9: Mode 6 Data (2002 2.8L AFP) (2 Of 4)

G00105118

Courtesy of VOLKSWAGEN UNITED STATES, INC.

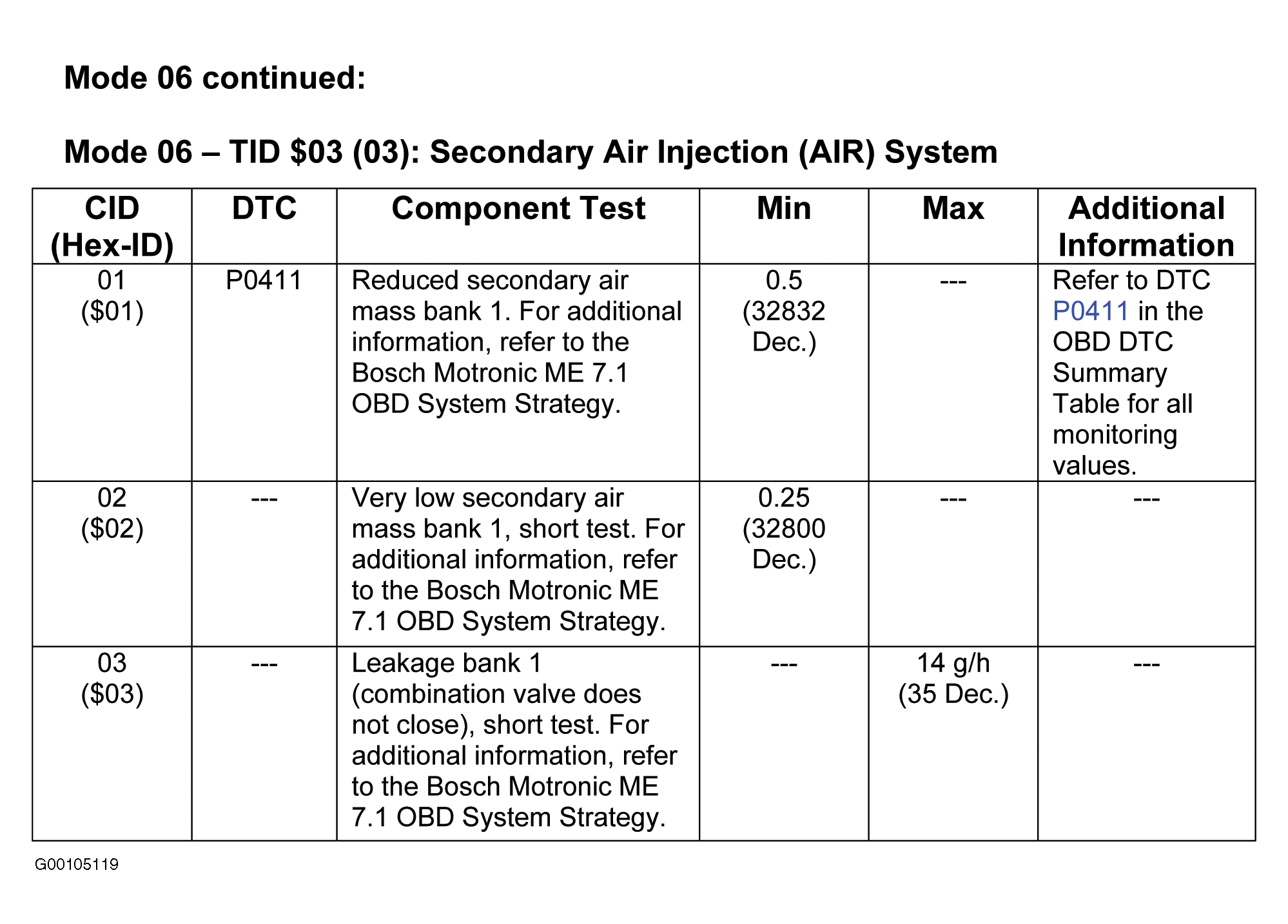

Fig 10: Mode 6 Data (2002 2.8L AFP) (3 Of 4)

G00105119

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 11: Mode 6 Data (2002 2.8L AFP) (4 Of 4)

G00105120

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 12: Mode 6 Data (2001-02 2.8L BDF) (1 Of 5)

G00105121

Courtesy of VOLKSWAGEN UNITED STATES, INC.

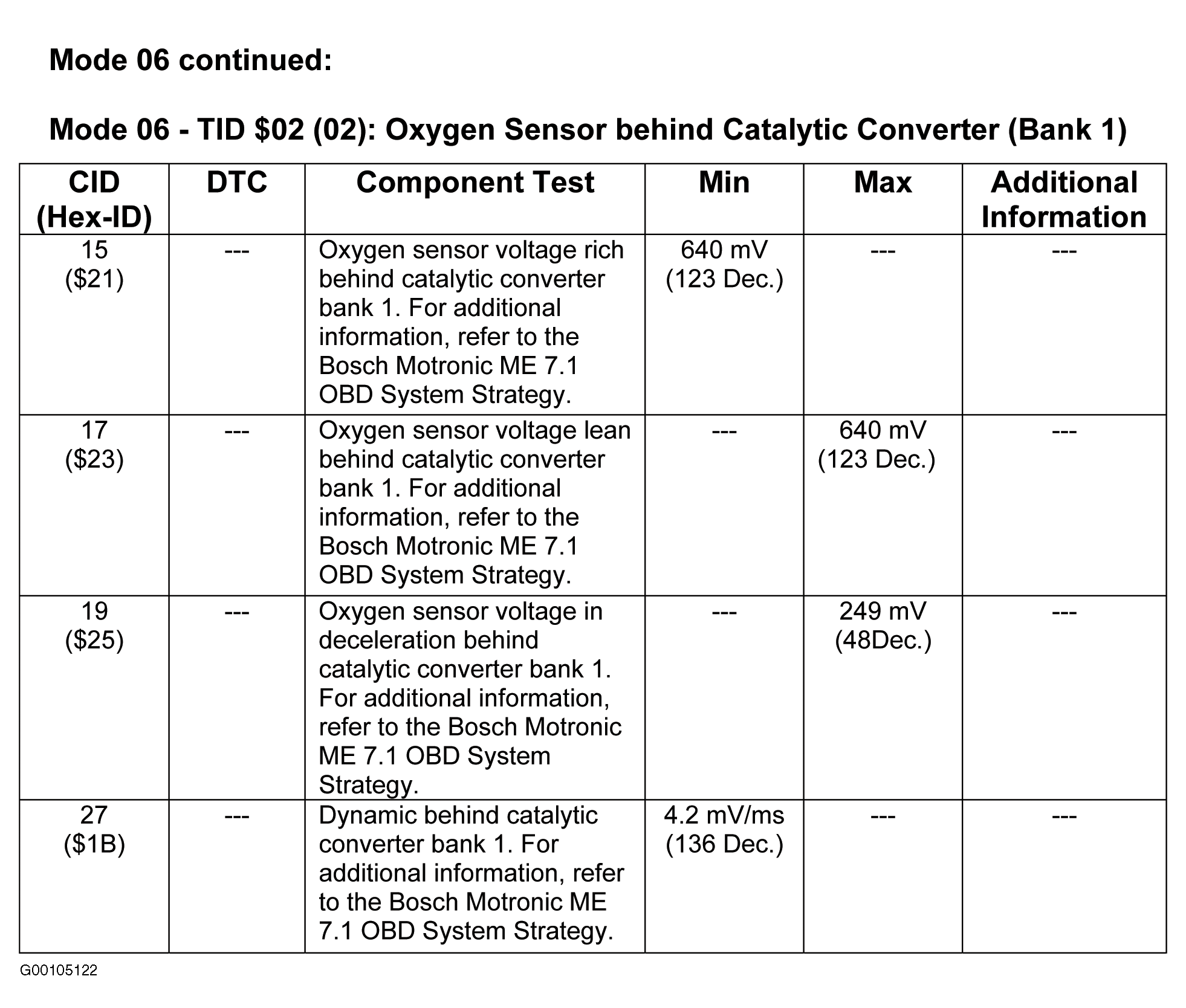

Fig 13: Mode 6 Data (2001-02 2.8L BDF) (2 Of 5)

G00105122

Courtesy of VOLKSWAGEN UNITED STATES, INC.

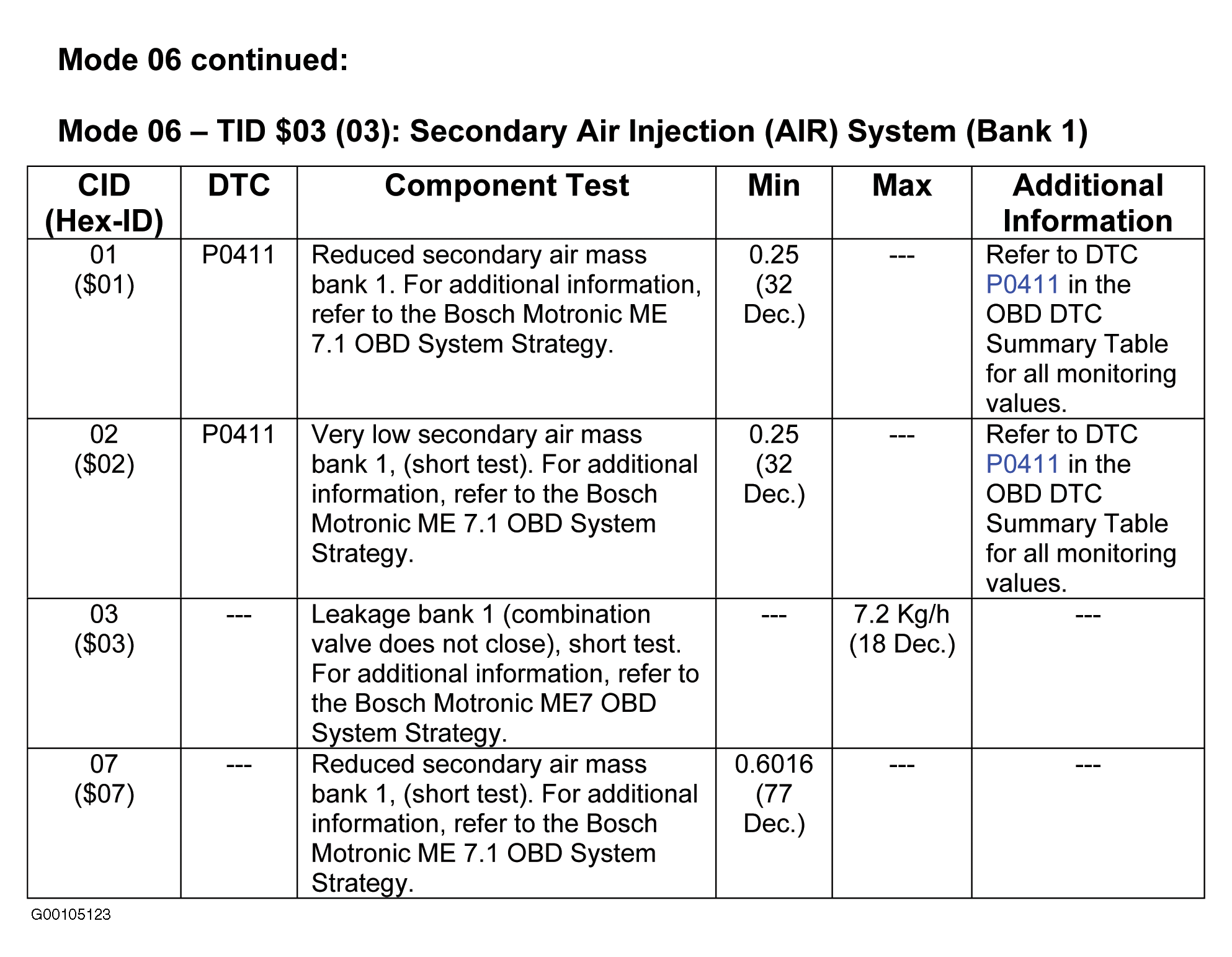

Fig 14: Mode 6 Data (2001-02 2.8L BDF) (3 Of 5)

G00105123

Courtesy of VOLKSWAGEN UNITED STATES, INC.

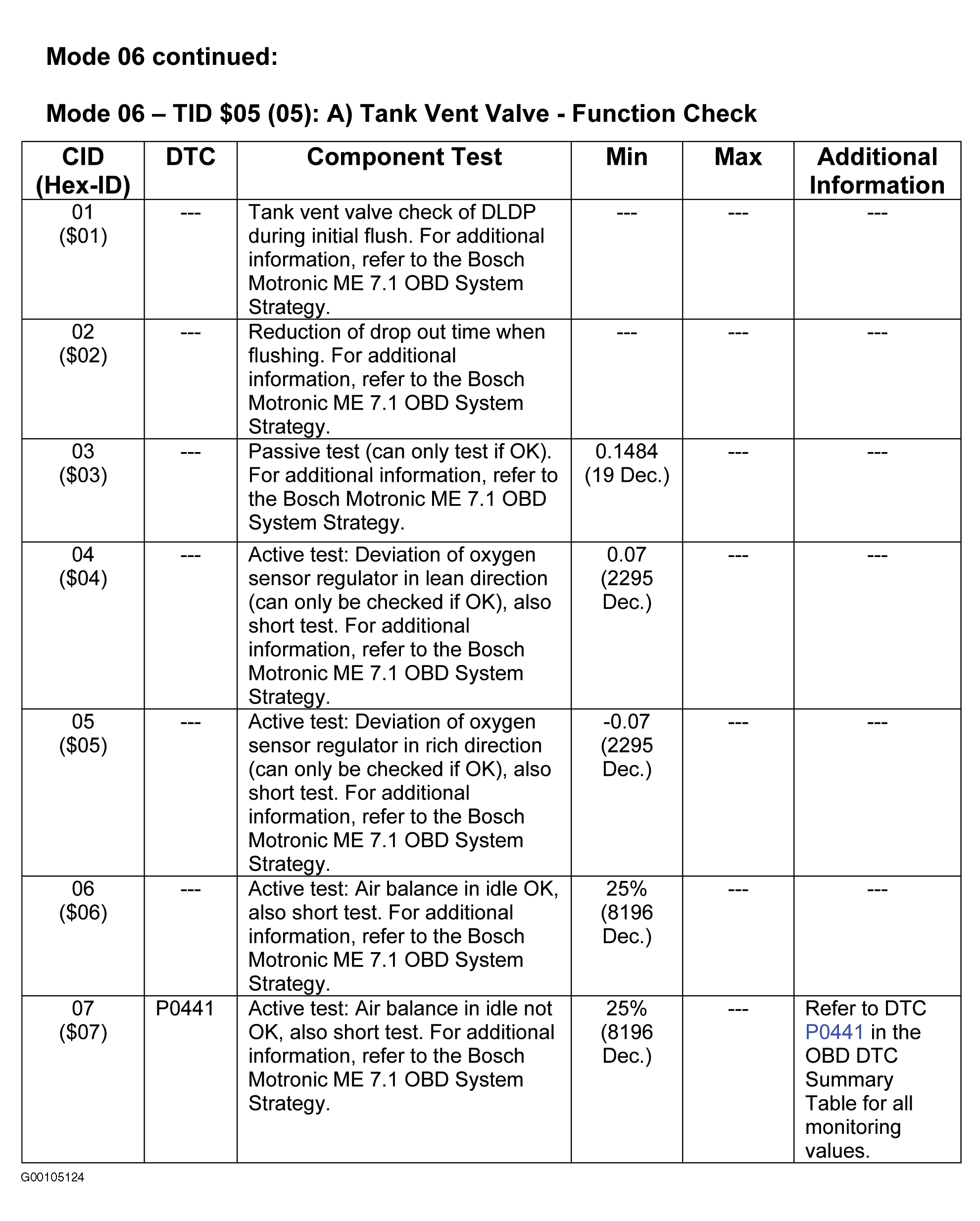

Fig 15: Mode 6 Data (2001-02 2.8L BDF) (4 Of 5)

G00105124

Courtesy of VOLKSWAGEN UNITED STATES, INC.

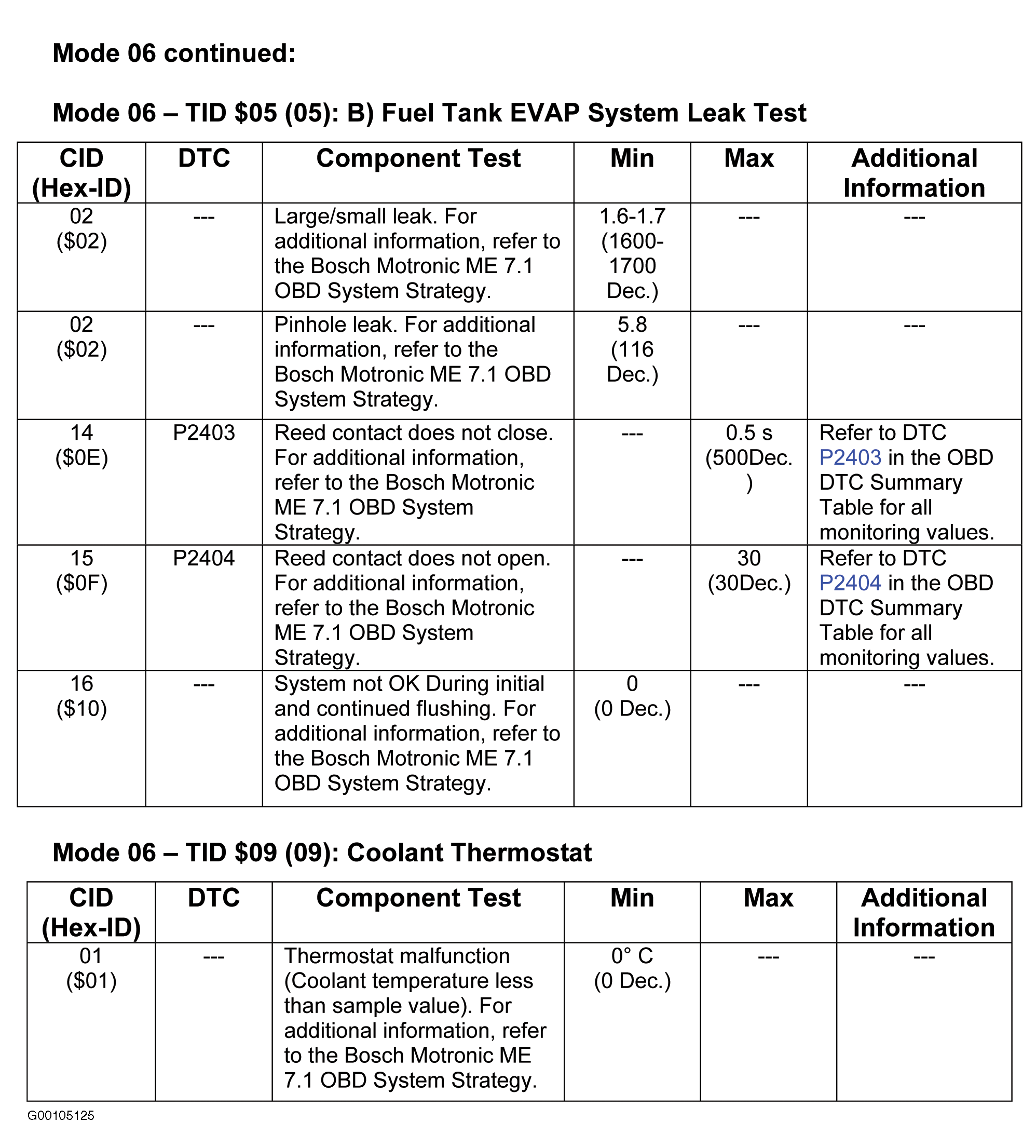

Fig 16: Mode 6 Data (2001-02 (2.8L BDF) (5 Of 5)

G00105125

Courtesy of VOLKSWAGEN UNITED STATES, INC.

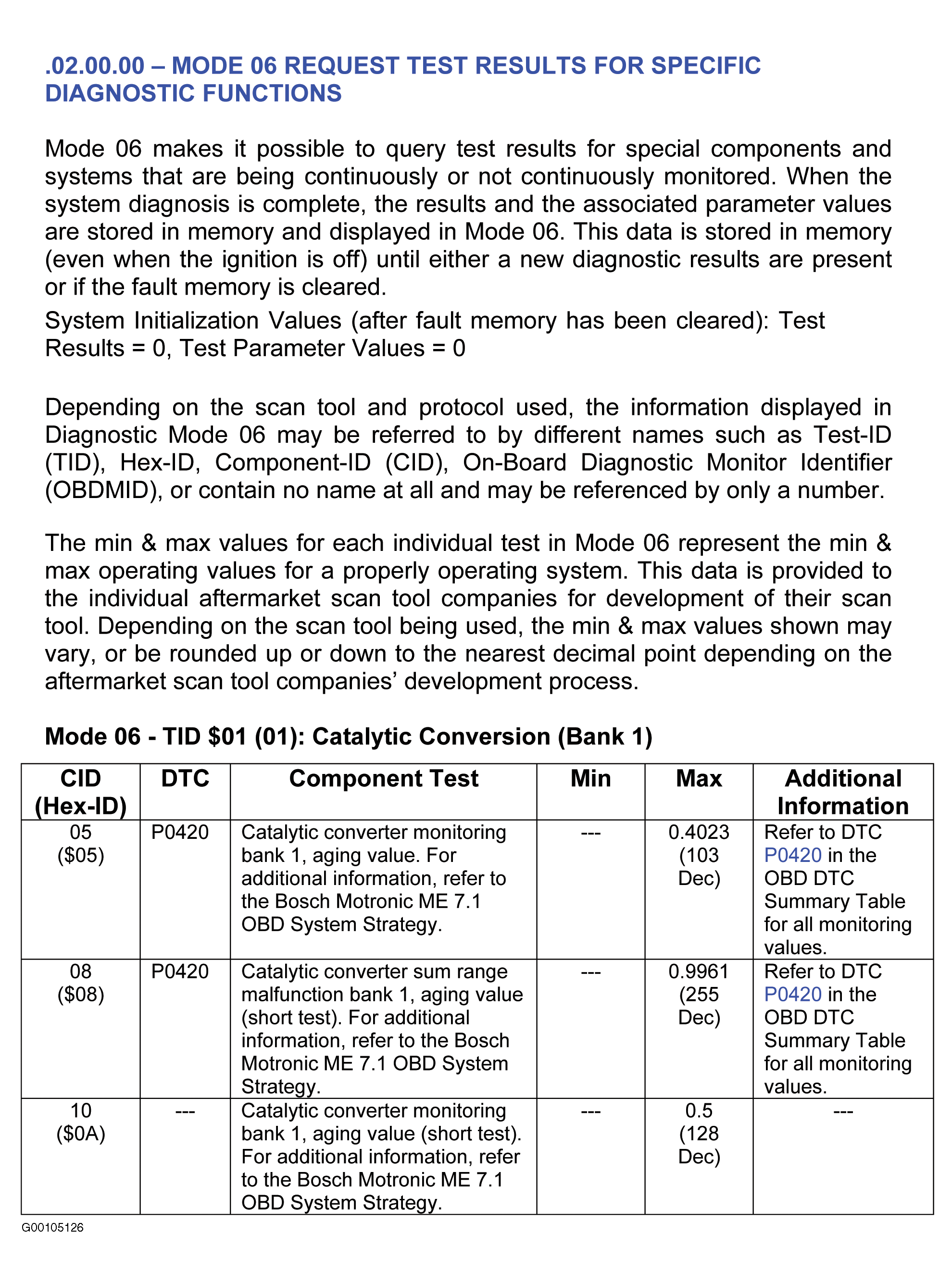

Fig 17: Mode 6 Data (2003-05 2.8L BDF) (1 Of 5)

G00105126

Courtesy of VOLKSWAGEN UNITED STATES, INC.

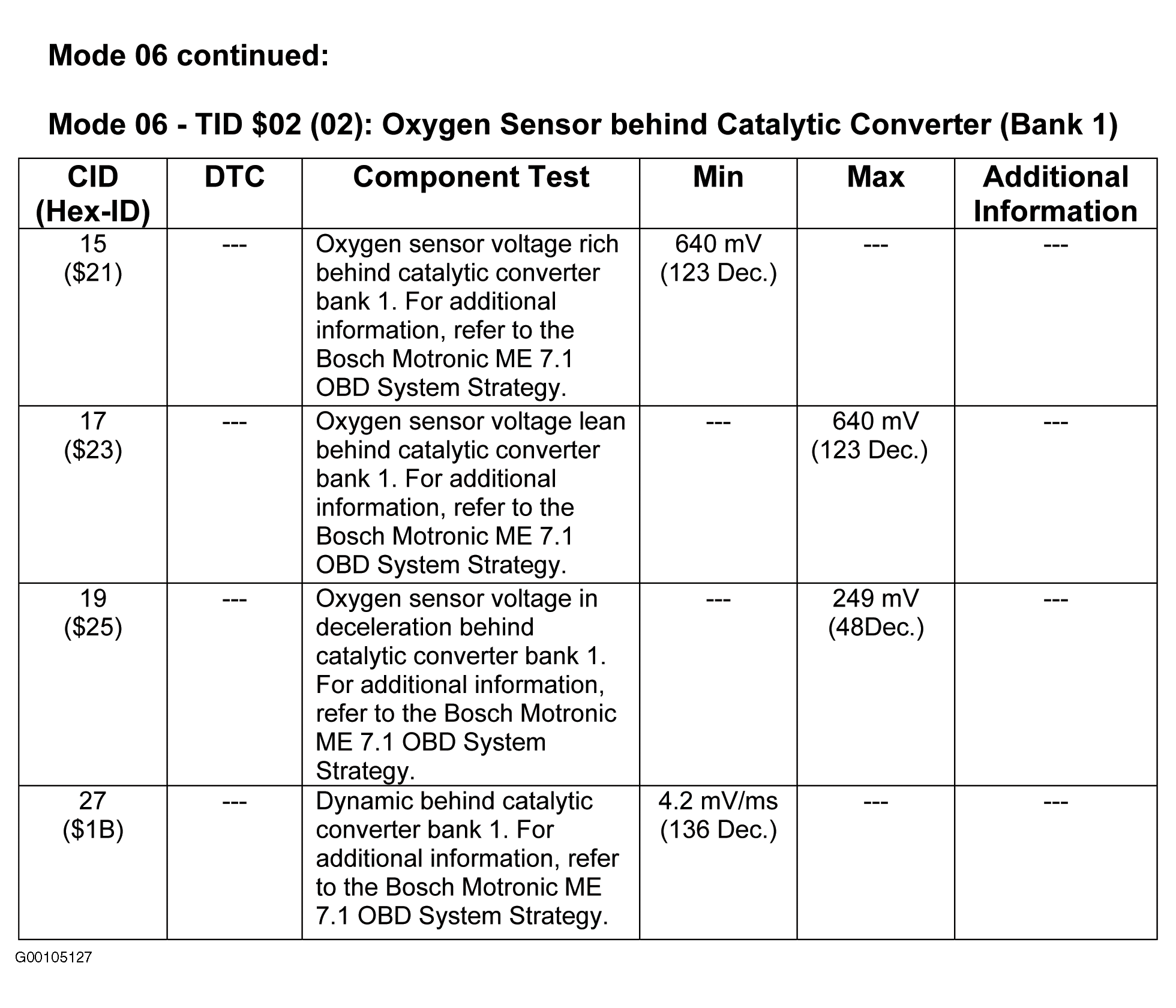

Fig 18: Mode 6 Data (2003-05 2.8L BDF) (2 Of 5)

G00105127

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 19: Mode 6 Data (2003-05 2.8L BDF) (3 Of 5)

G00105128

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 20: Mode 6 Data (2003-05 2.8L BDF) (4 Of 5)

G00105129

Courtesy of VOLKSWAGEN UNITED STATES, INC.

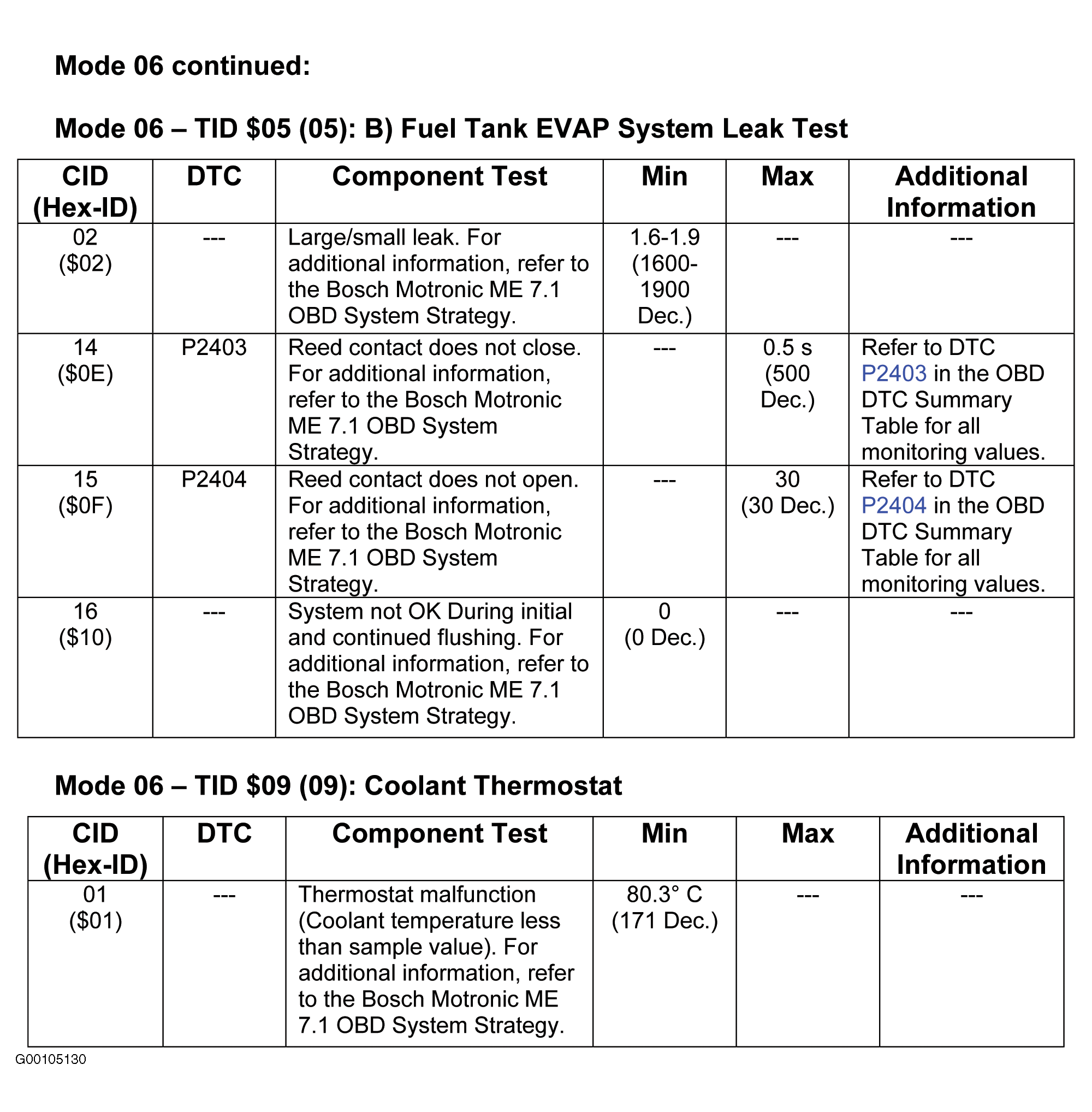

Fig 21: Mode 6 Data (2003-05 2.8L BDF) (5 Of 5)

G00105130

Courtesy of VOLKSWAGEN UNITED STATES, INC.

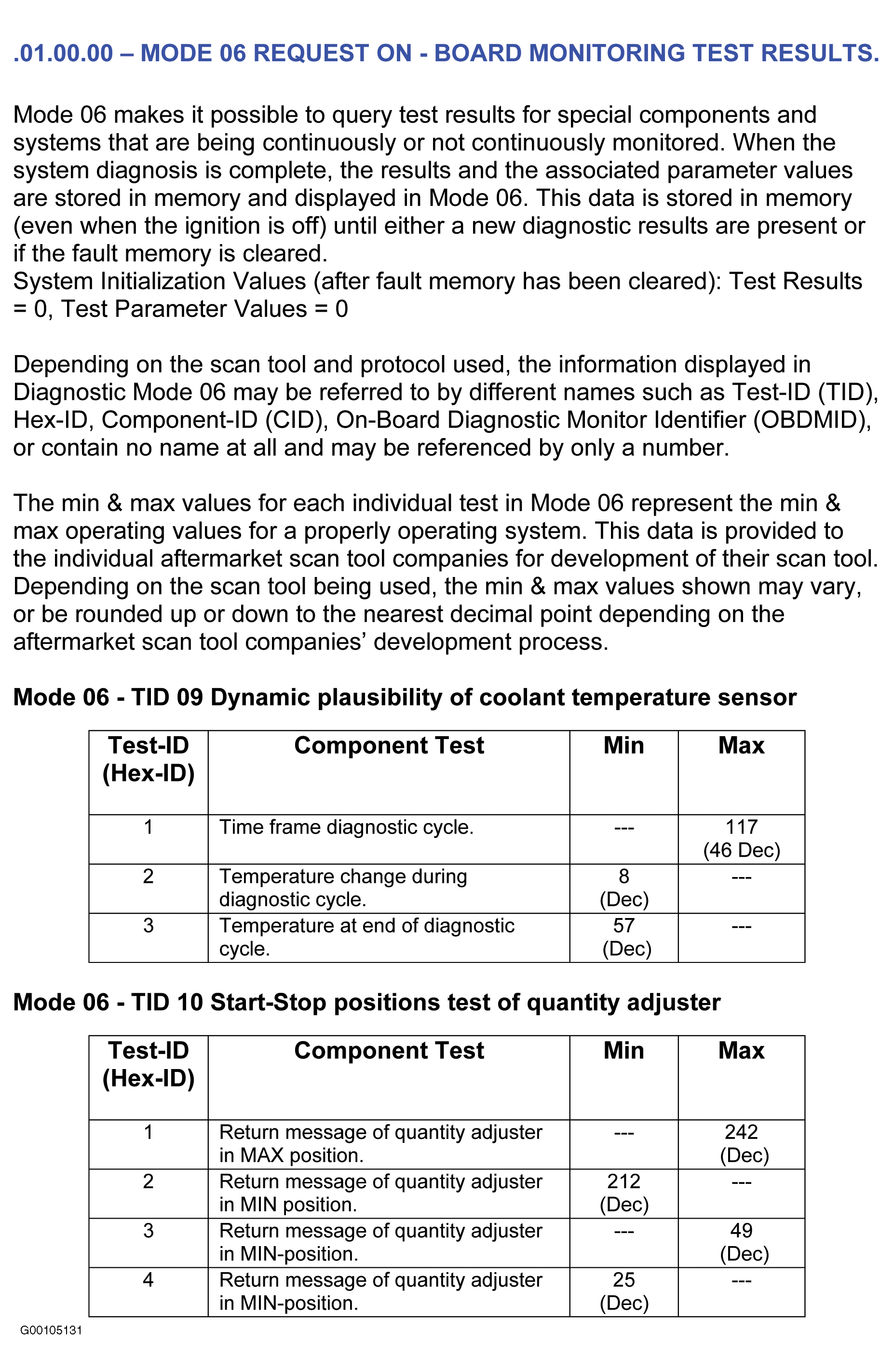

Fig 22: Mode 6 Data (1999-03 1.9L ALH) (1 Of 2)

G00105131

Courtesy of VOLKSWAGEN UNITED STATES, INC.

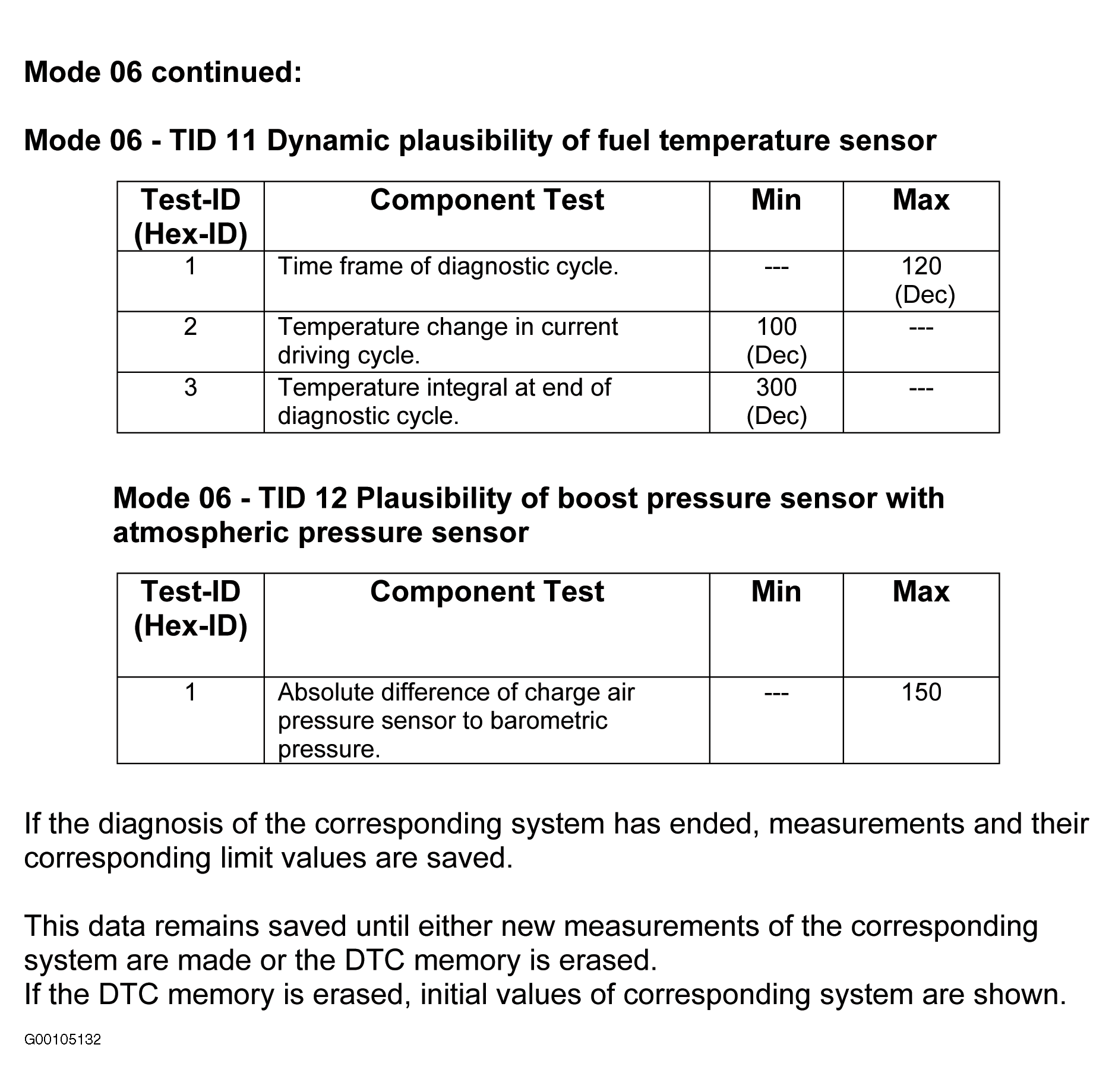

Fig 23: Mode 6 Data (1999-03 1.9L ALH) (2 Of 2)

G00105132

Courtesy of VOLKSWAGEN UNITED STATES, INC.

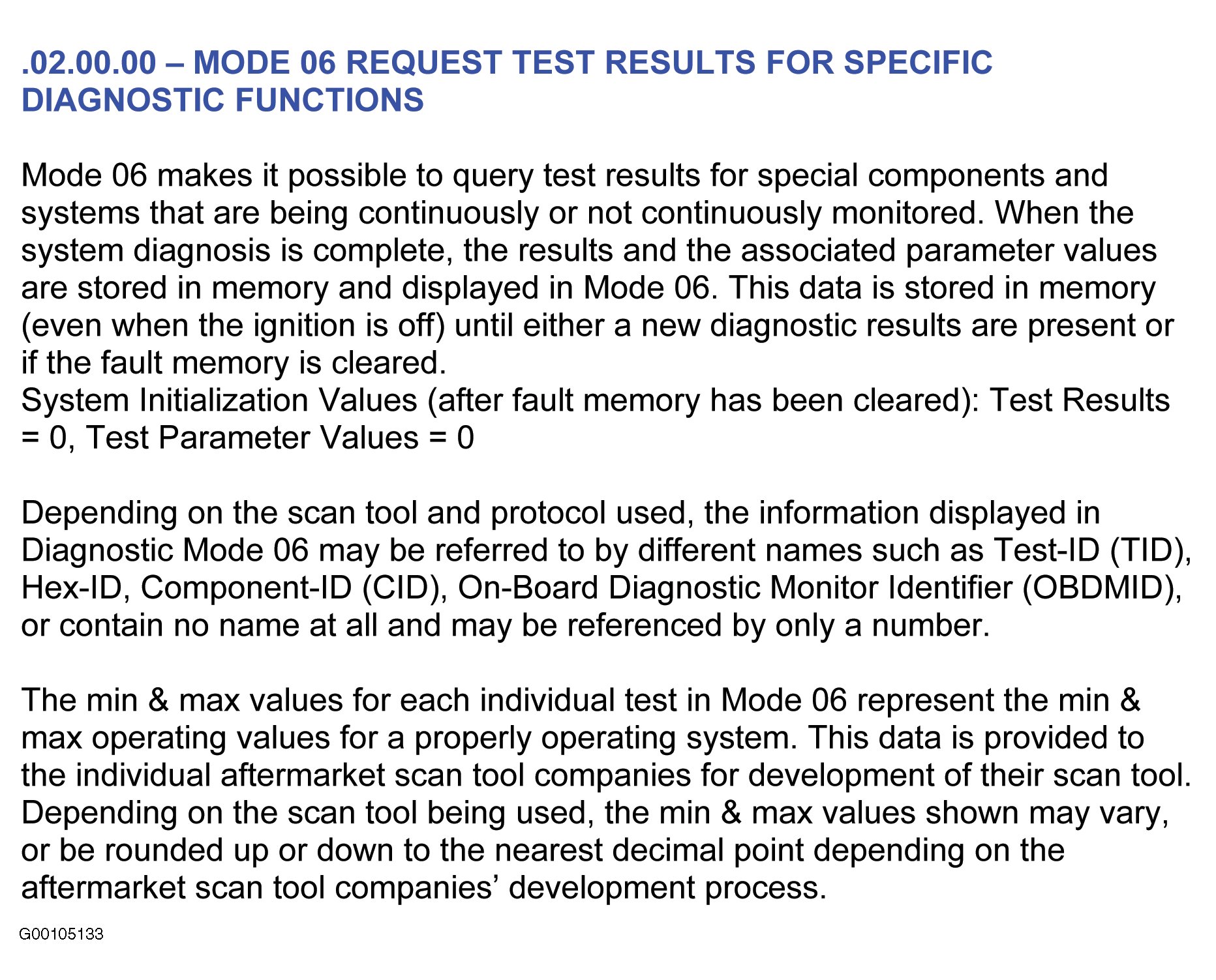

Fig 24: Mode 6 Data (2003 2.0L AZG) (1 Of 6)

G00105133

Courtesy of VOLKSWAGEN UNITED STATES, INC.

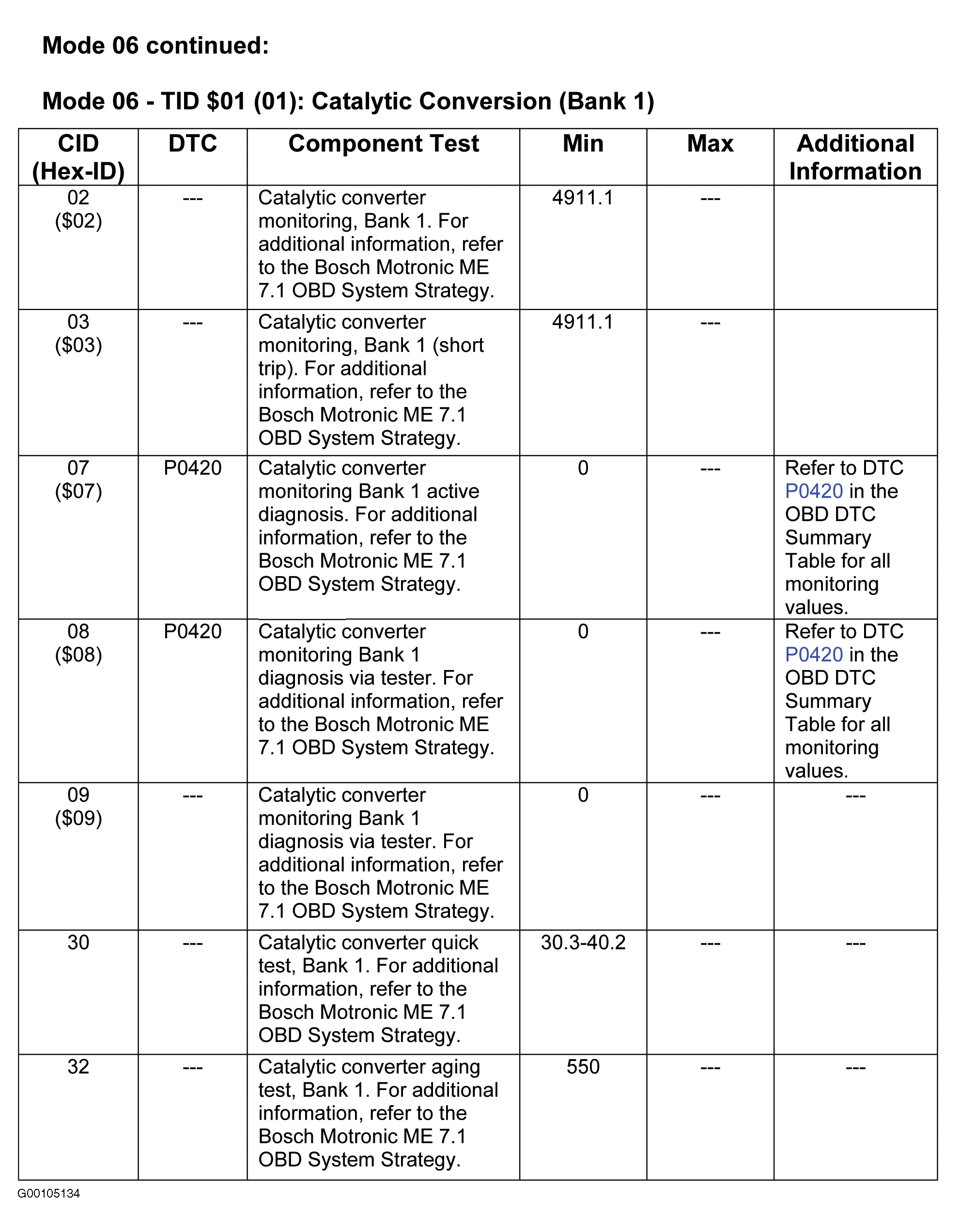

Fig 25: Mode 6 Data (2003 2.0L AZG) (2 Of 6)

G00105134

Courtesy of VOLKSWAGEN UNITED STATES, INC.

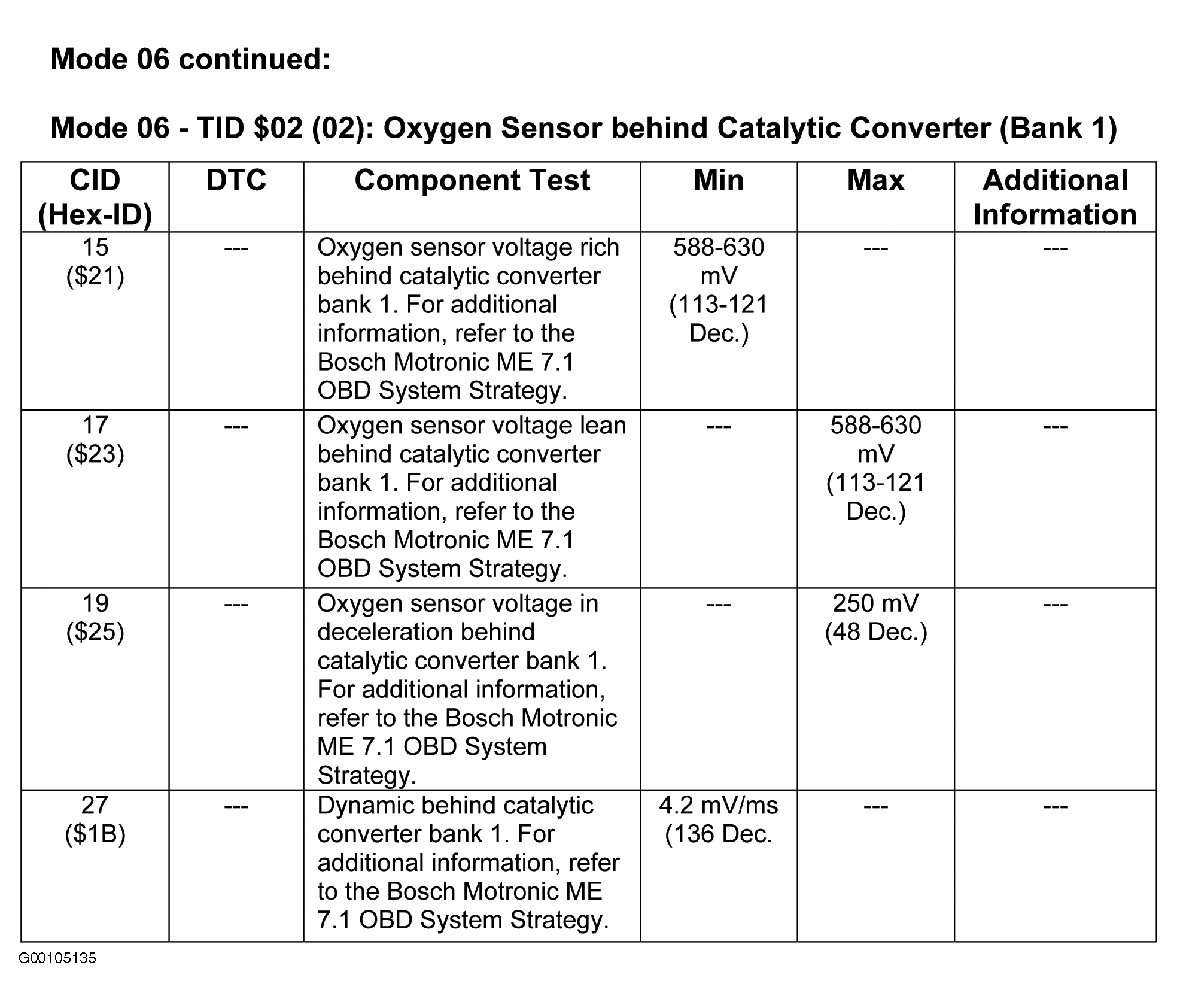

Fig 26: Mode 6 Data (2003 2.0L AZG) (3 Of 6)

G00105135

Courtesy of VOLKSWAGEN UNITED STATES, INC.

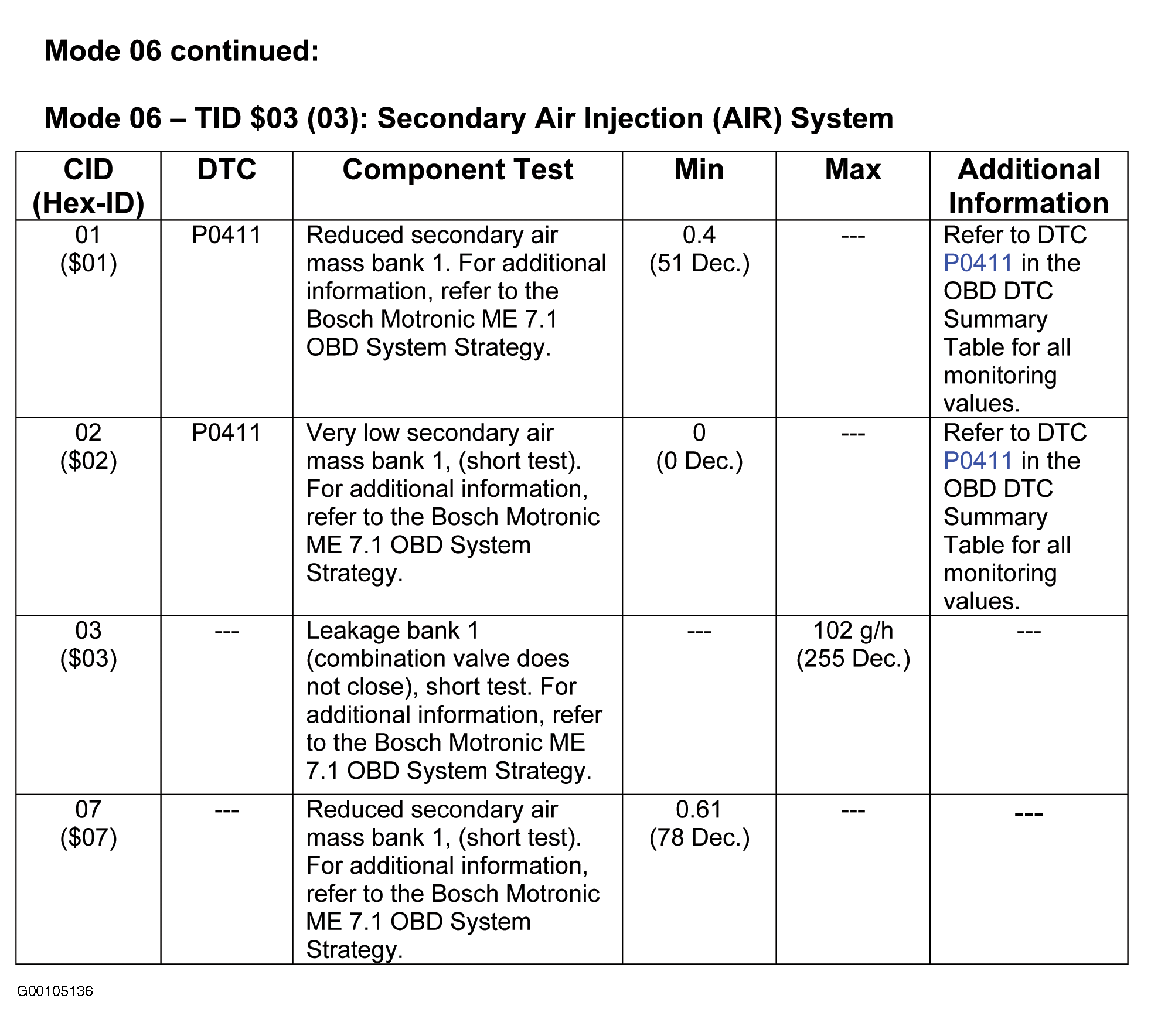

Fig 27: Mode 6 Data (2003 2.0L AZG) (4 Of 6)

G00105136

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 28: Mode 6 Data (2003 2.0L AZG) (5 Of 6)

G00105137

Courtesy of VOLKSWAGEN UNITED STATES, INC.

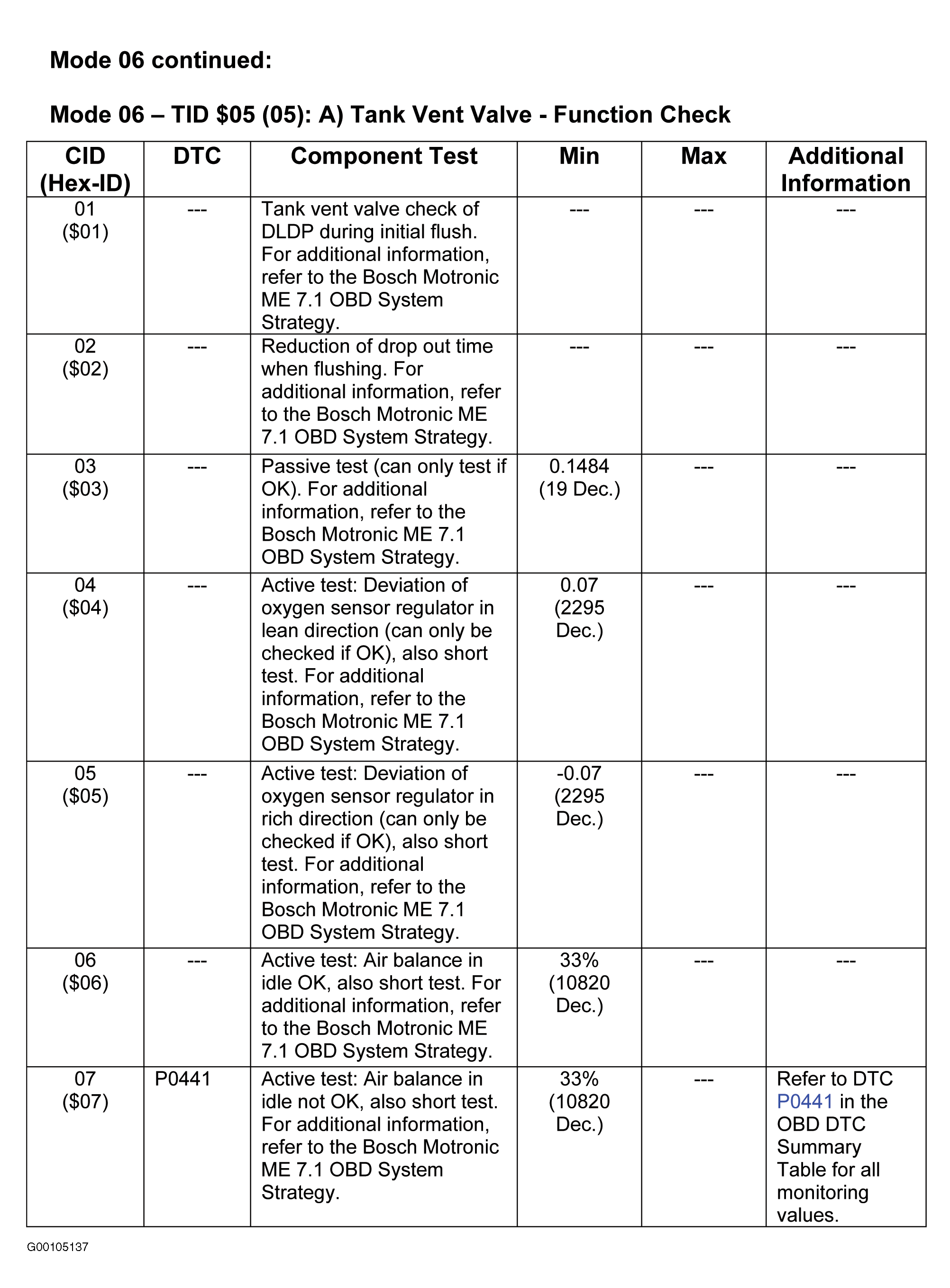

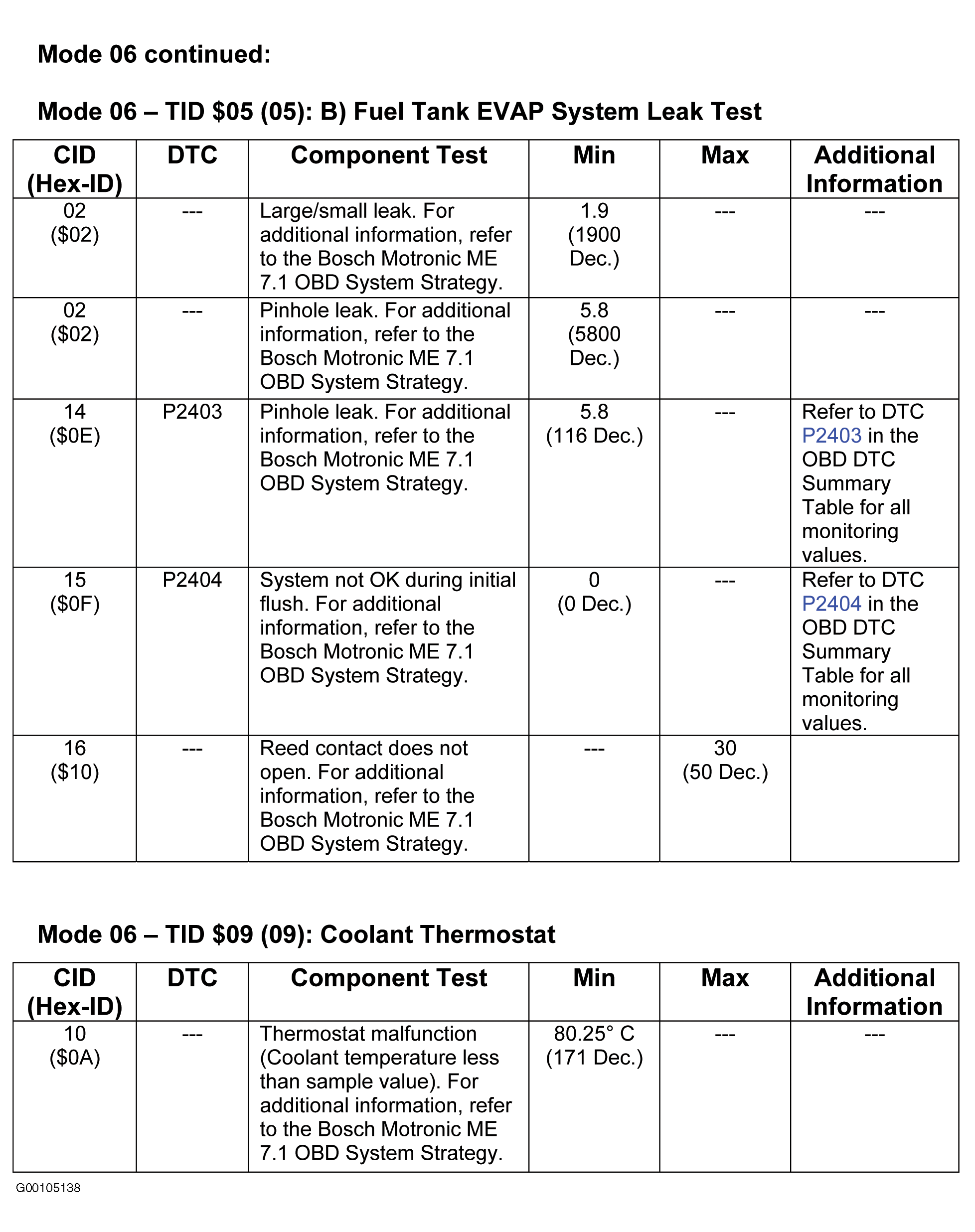

Fig 29: Mode 6 Data (2003 2.0L AZG) (6 Of 6)

G00105138

Courtesy of VOLKSWAGEN UNITED STATES, INC.

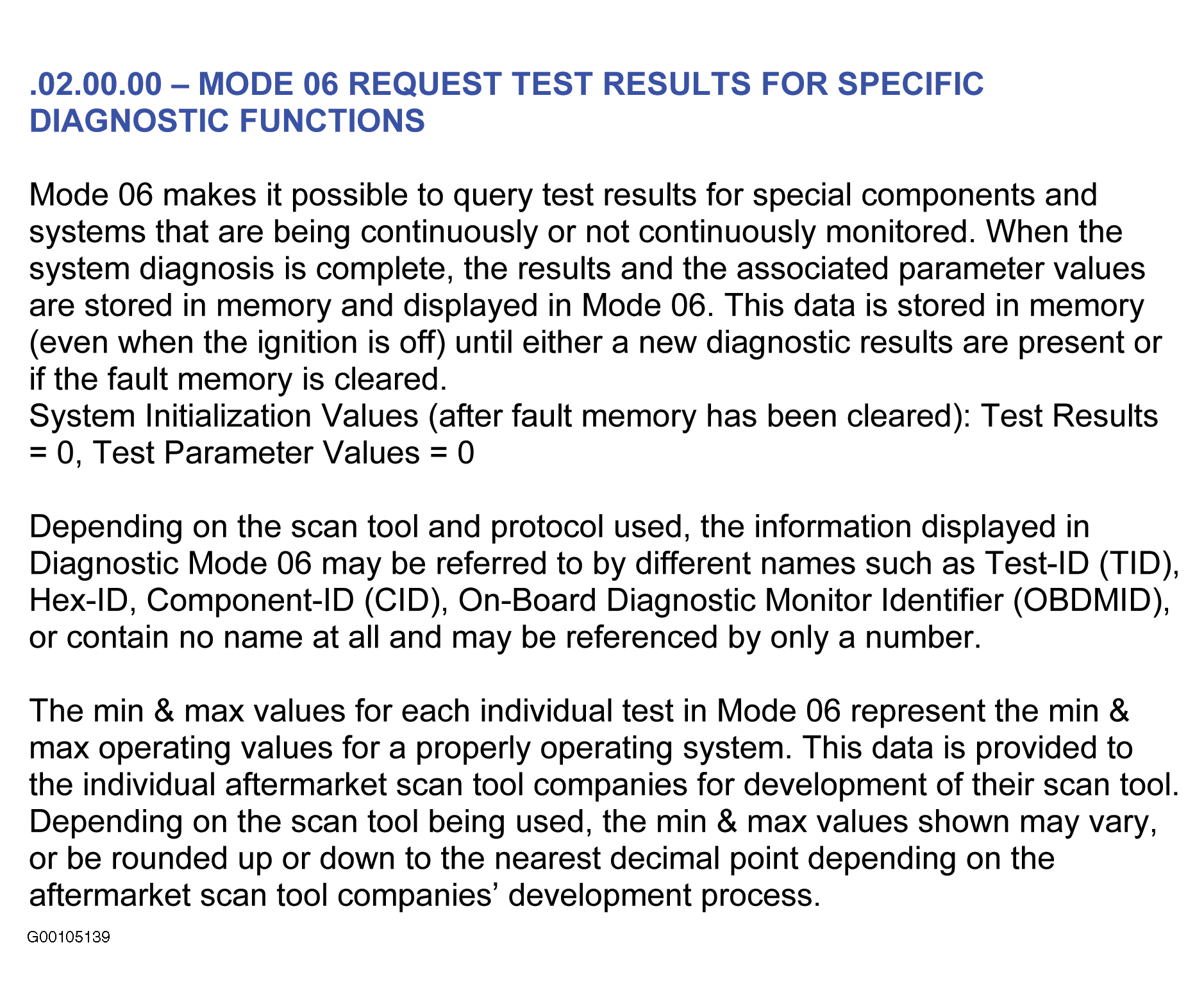

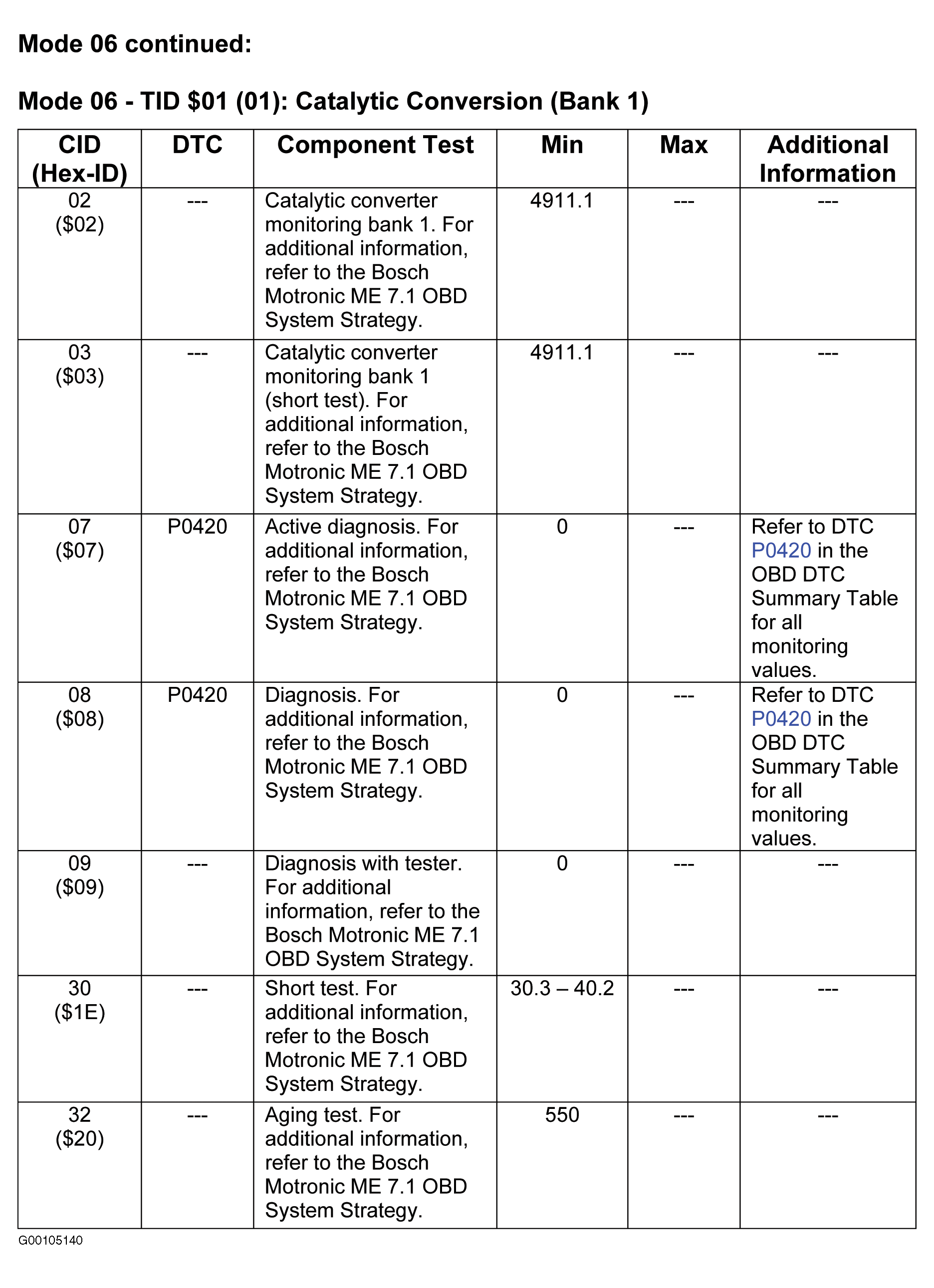

Fig 30: Mode 6 Data (2003-05 2.0L BBW) (1 Of 5)

G00105139

Courtesy of VOLKSWAGEN UNITED STATES, INC.

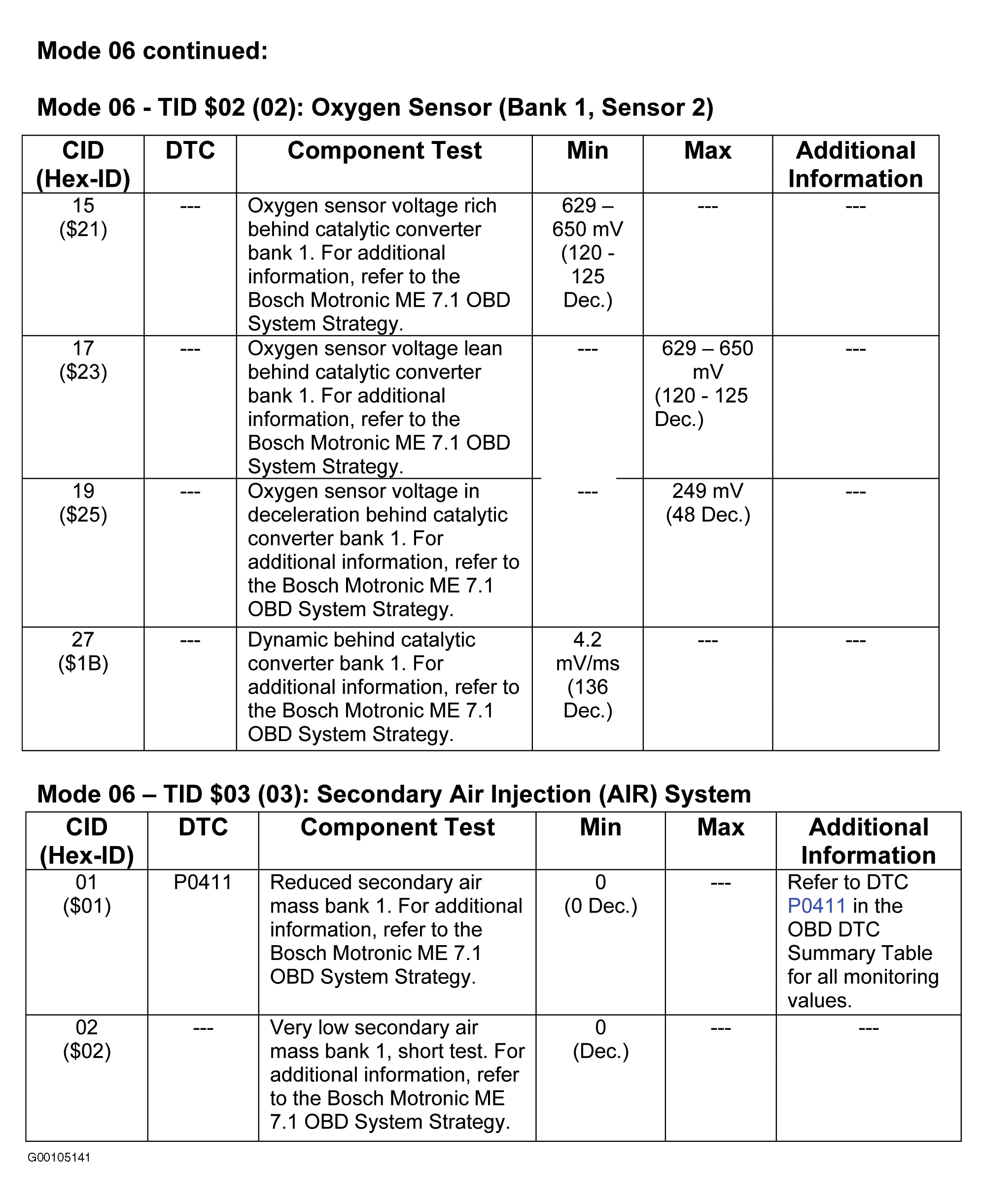

Fig 31: Mode 6 Data (2003-05 2.0L BBW) (2 Of 5)

G00105140

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 32: Mode 6 Data (2003-05 2.0L BBW) (3 Of 5)

G00105141

Courtesy of VOLKSWAGEN UNITED STATES, INC.

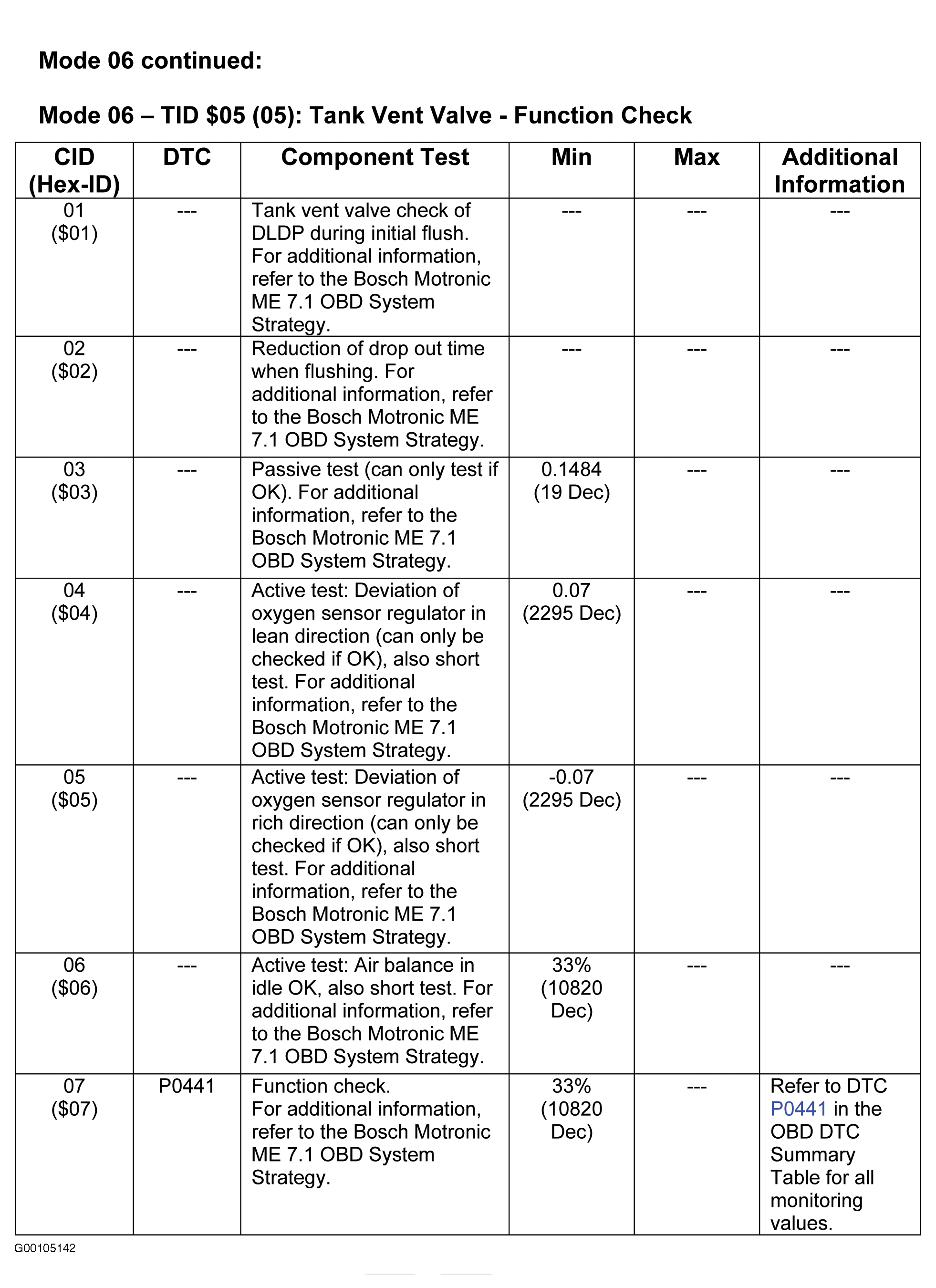

Fig 33: Mode 6 Data (2003-05 2.0L BBW) (4 Of 5)

G00105142

Courtesy of VOLKSWAGEN UNITED STATES, INC.

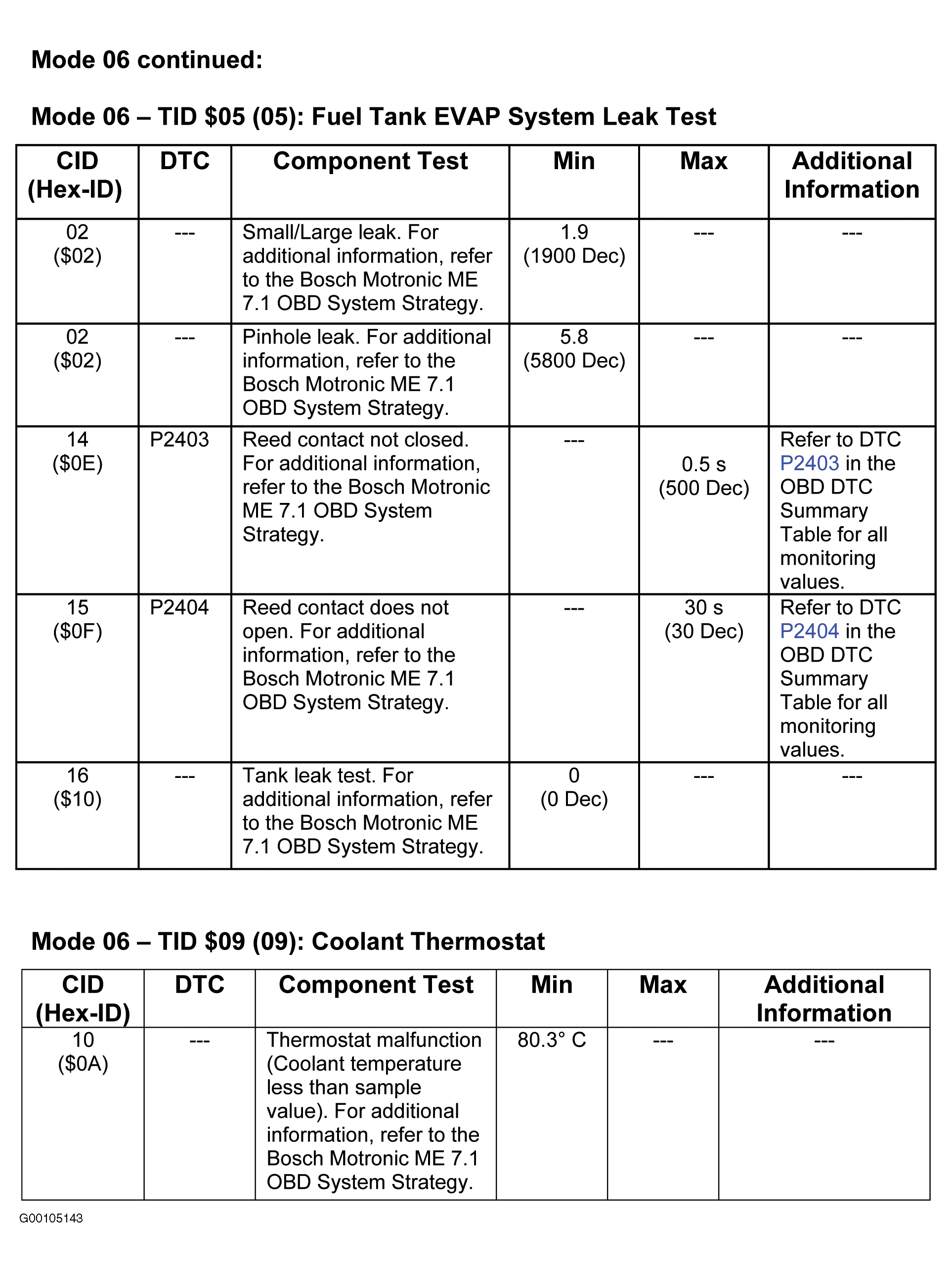

Fig 34: Mode 6 Data (2003-05 2.0L BBW) (5 Of 5)

G00105143

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 35: Mode 6 Data (2004-06 2.0L BEV) (1 Of 5)

G00105144

Courtesy of VOLKSWAGEN UNITED STATES, INC.

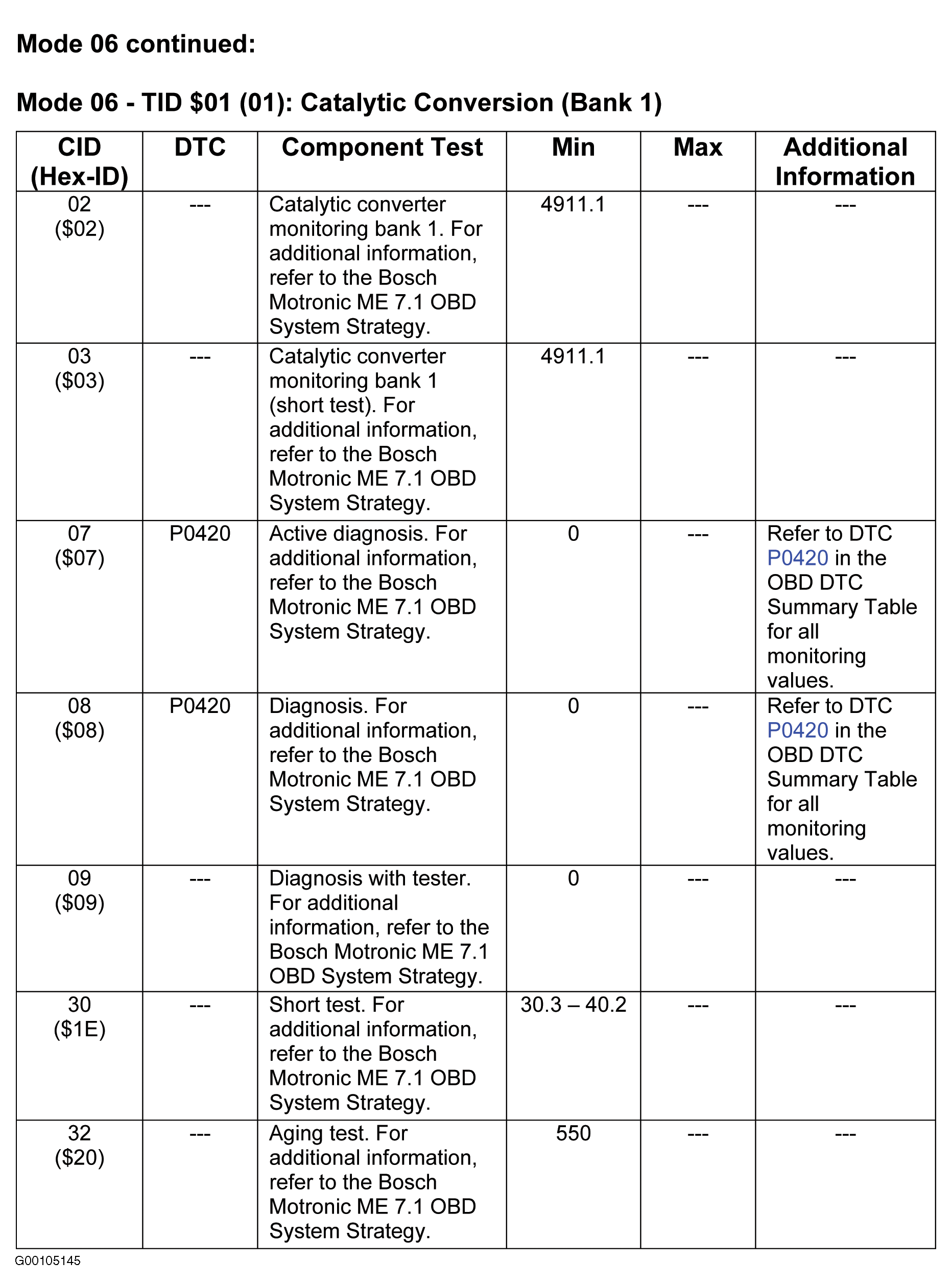

Fig 36: Mode 6 Data (2004-06 2.0L BEV) (2 Of 5)

G00105145

Courtesy of VOLKSWAGEN UNITED STATES, INC.

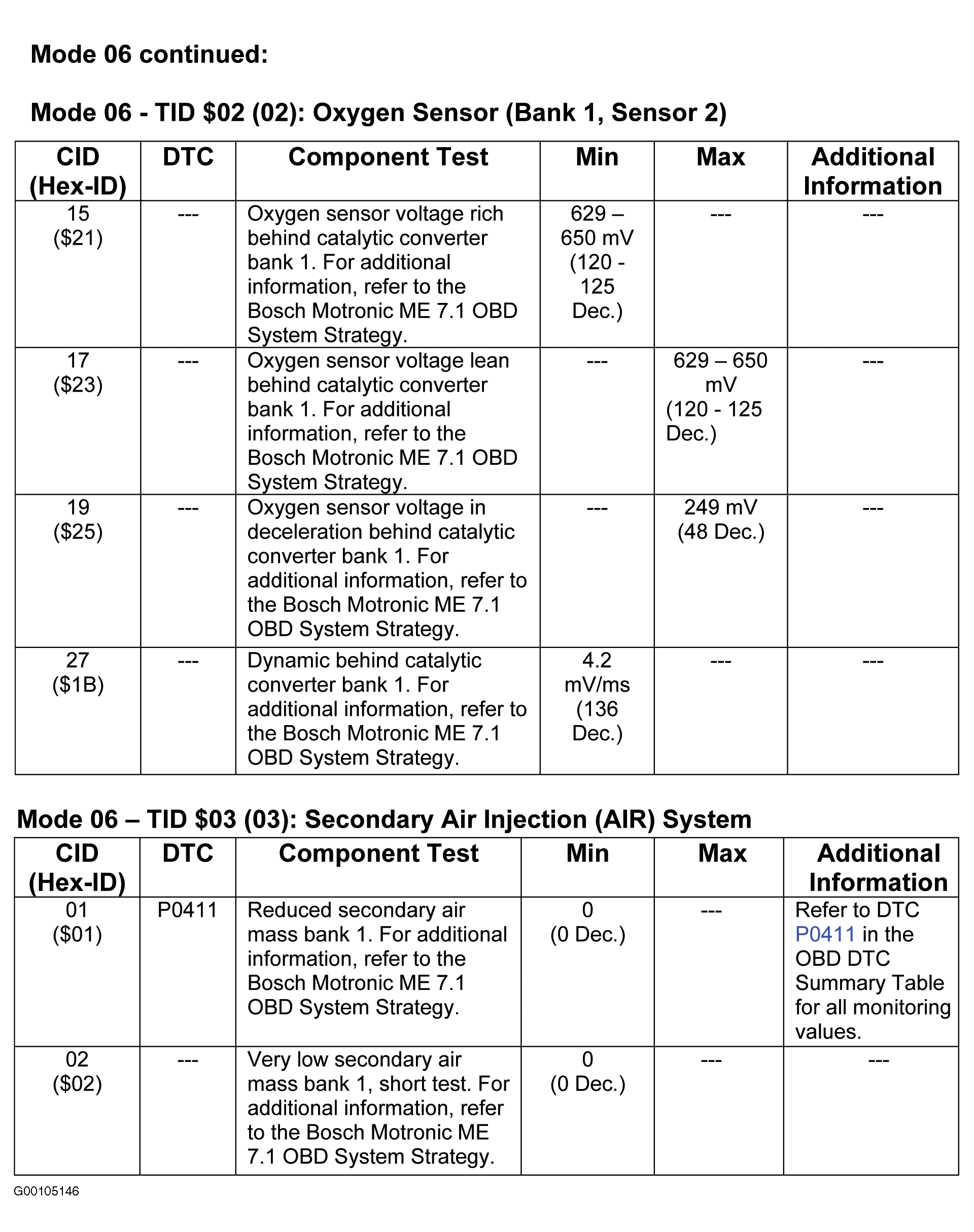

Fig 37: Mode 6 Data (2004-06 2.0L BEV) (3 Of 5)

G00105146

Courtesy of VOLKSWAGEN UNITED STATES, INC.

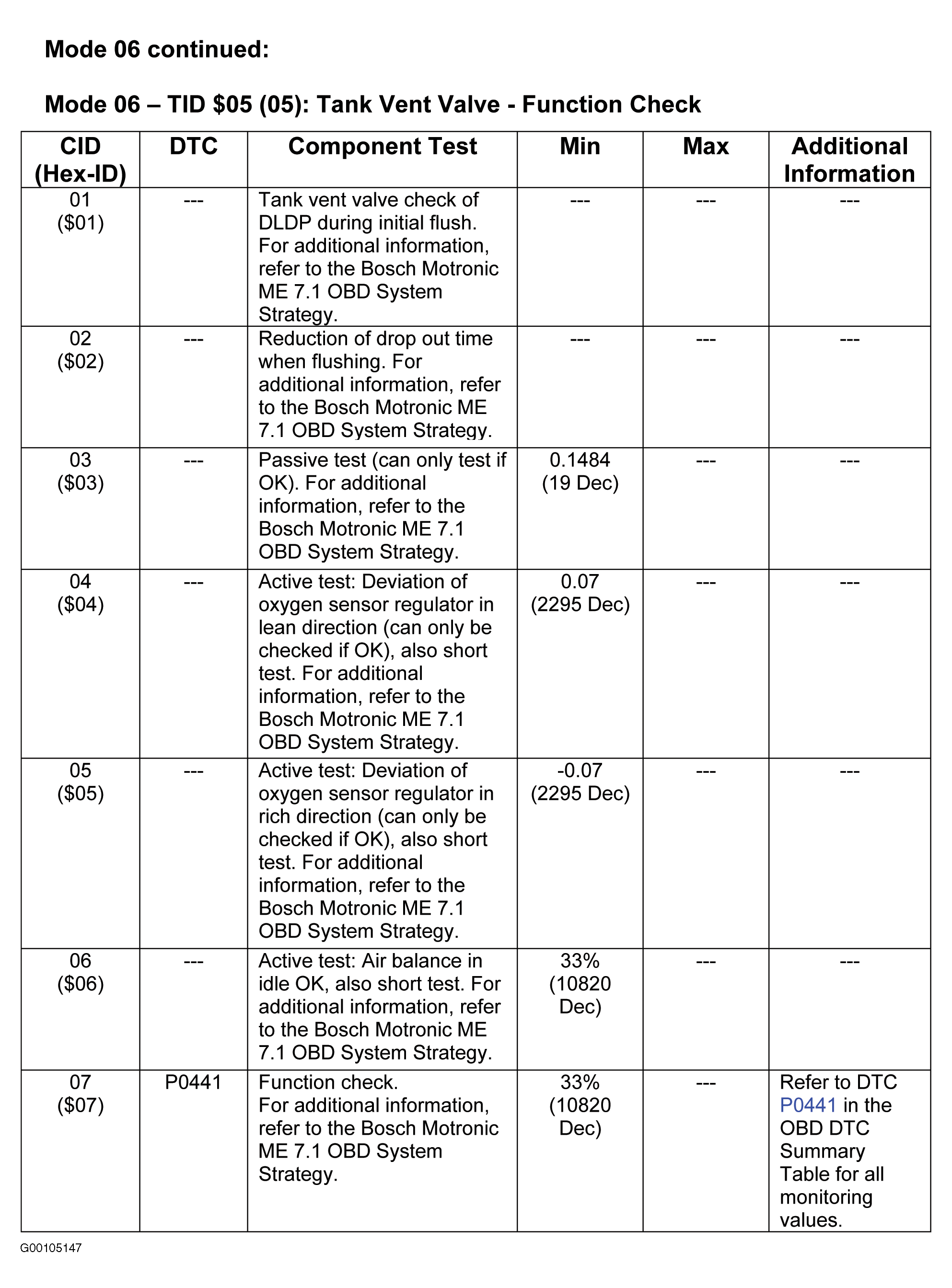

Fig 38: Mode 6 Data (2004-06 2.0L BEV) (4 Of 5)

G00105147

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 39: Mode 6 Data (2004-06 2.0L BEV) (5 Of 5)

G00105148

Courtesy of VOLKSWAGEN UNITED STATES, INC.

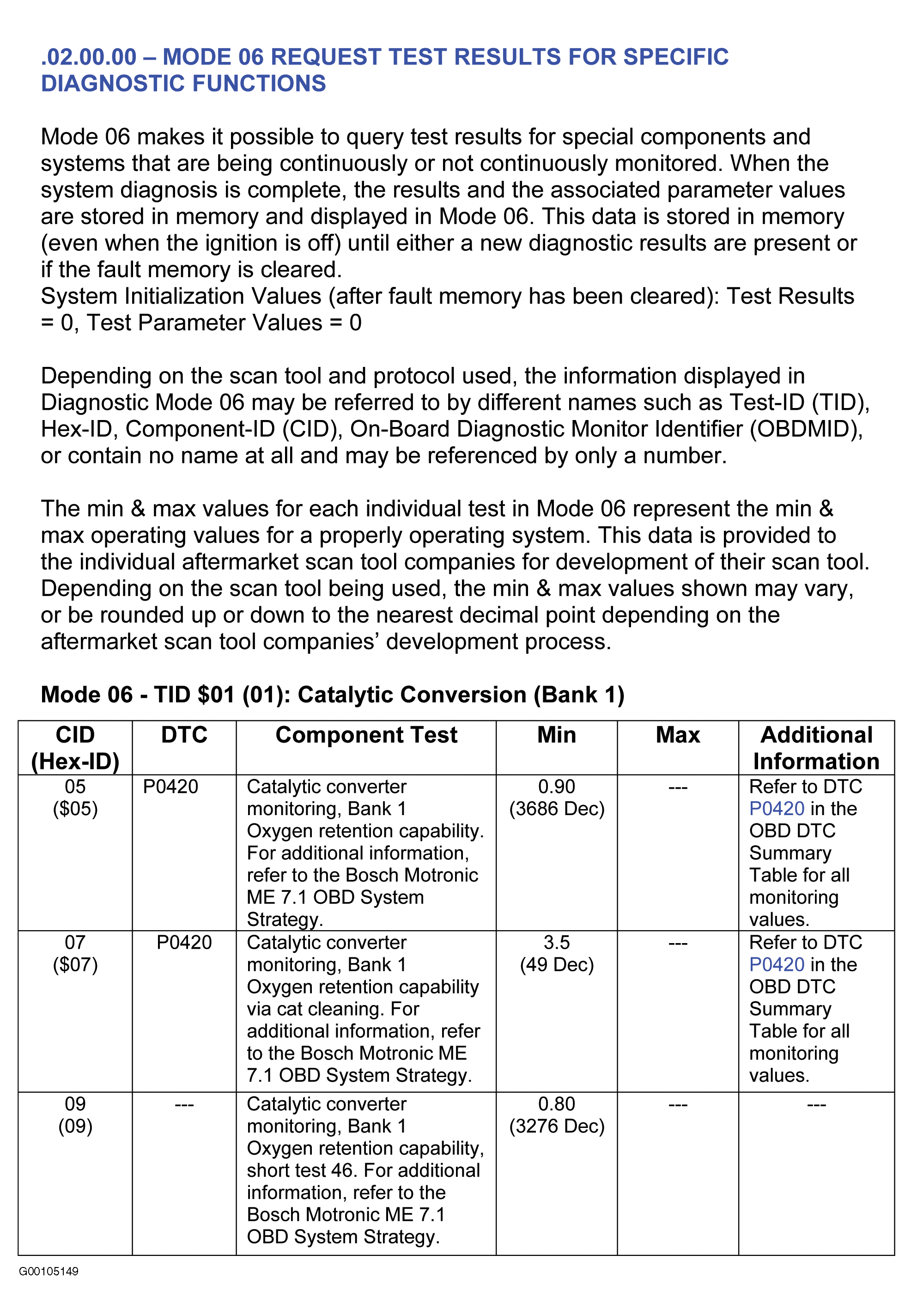

Fig 40: Mode 6 Data (2001-02 2.0L AZG) (1 Of 4)

G00105149

Courtesy of VOLKSWAGEN UNITED STATES, INC.

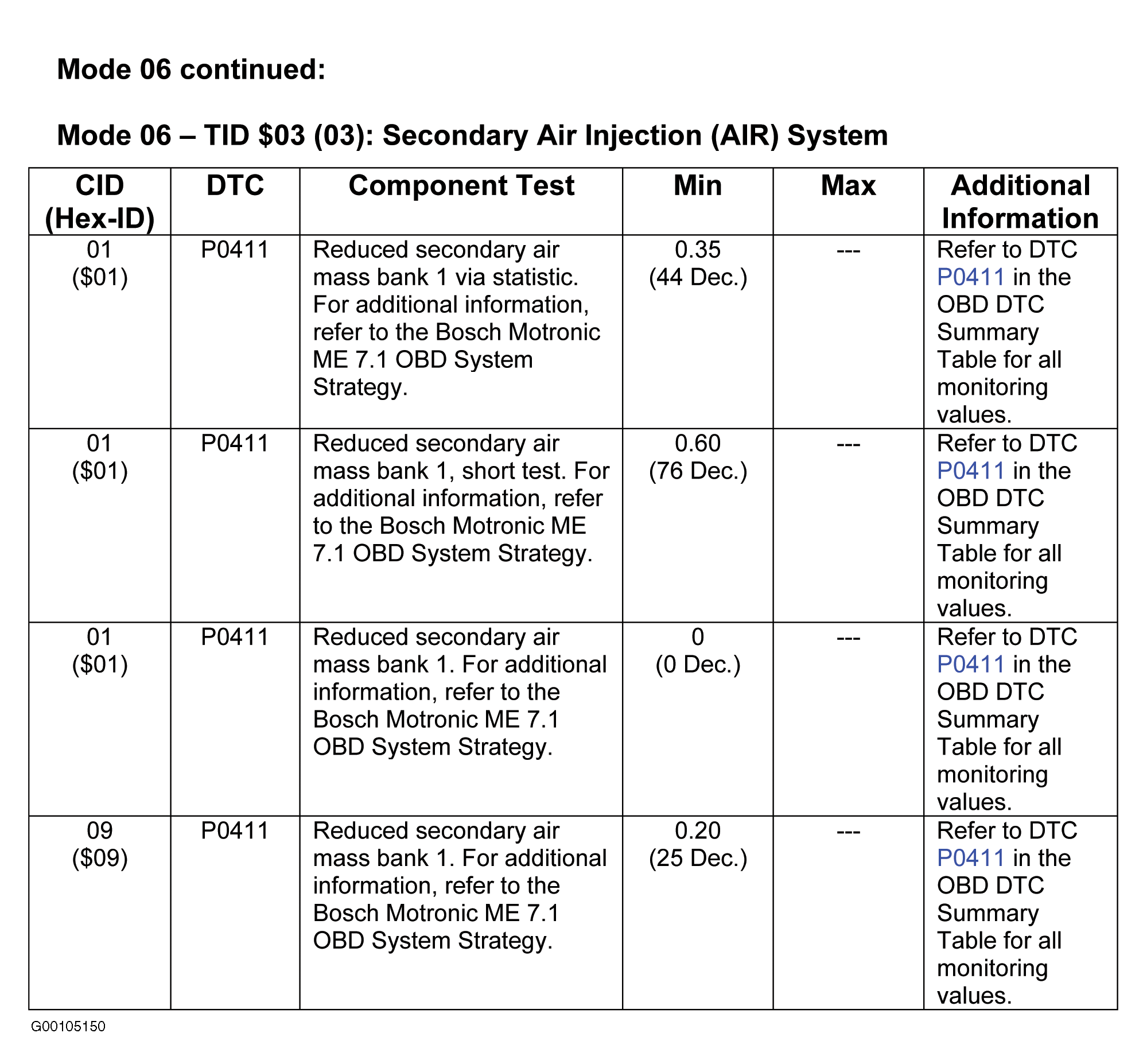

Fig 41: Mode 6 Data (2001-02 2.0L AZG) (2 Of 4)

G00105150

Courtesy of VOLKSWAGEN UNITED STATES, INC.

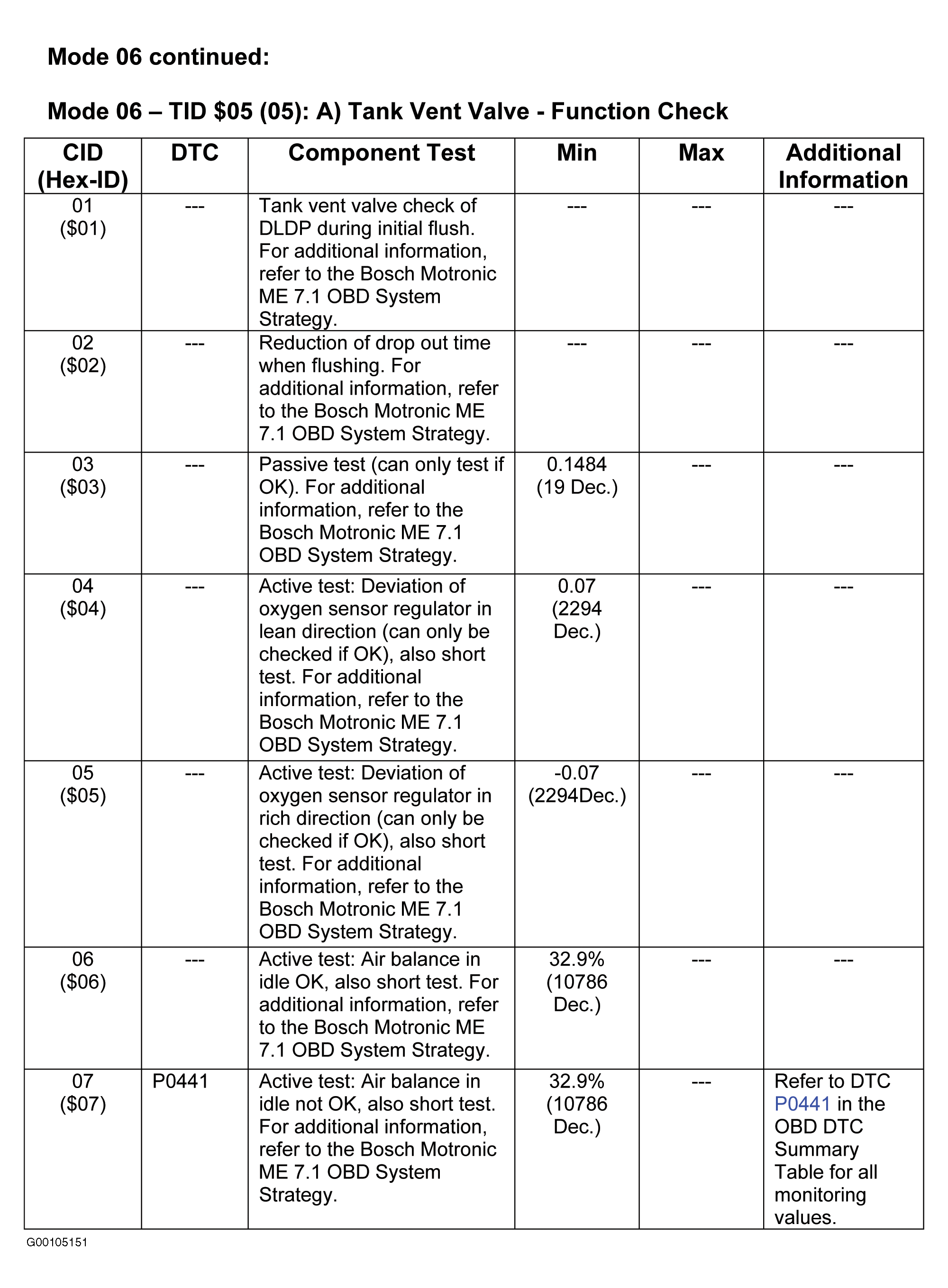

Fig 42: Mode 6 Data (2001-02 2.0L AZG) (3 Of 4)

G00105151

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 43: Mode 6 Data (2001-02 2.0L AZG) (4 Of 4)

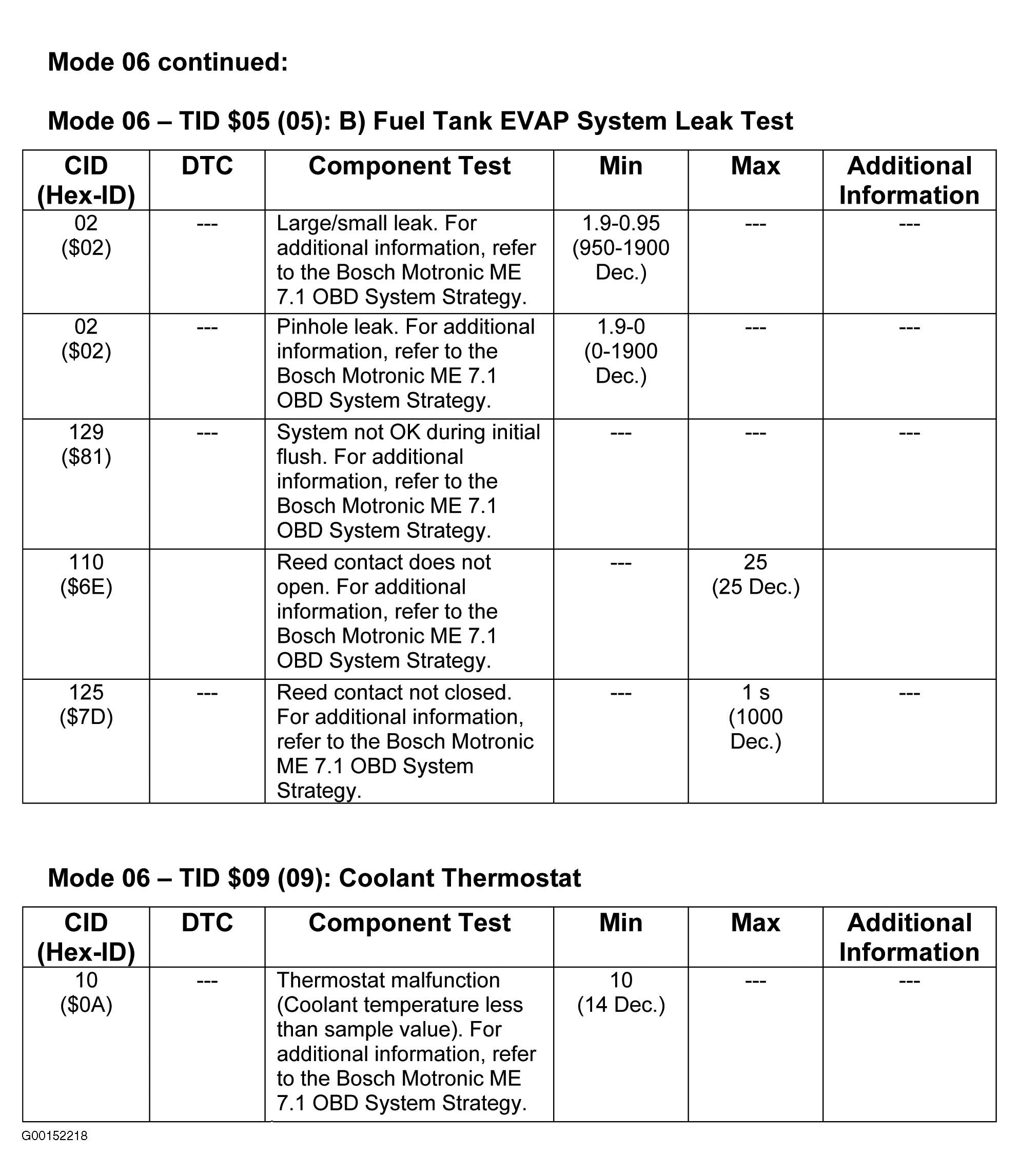

G00152218

Courtesy of VOLKSWAGEN UNITED STATES, INC.

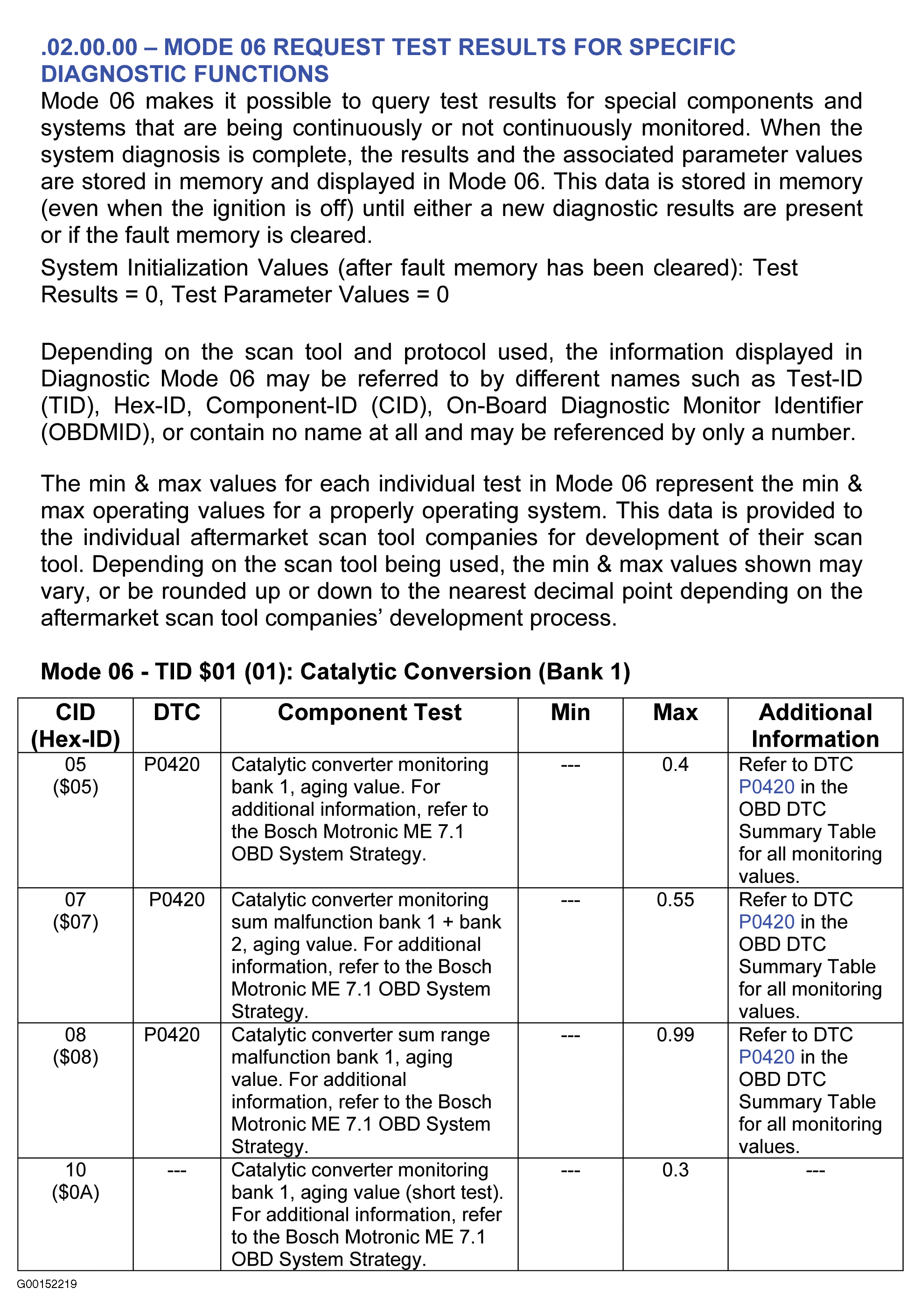

Fig 44: Mode 6 Data (2004 3.2L BJS) (1 Of 6)

G00152219

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 45: Mode 6 Data (2004 3.2L BJS) (2 Of 6)

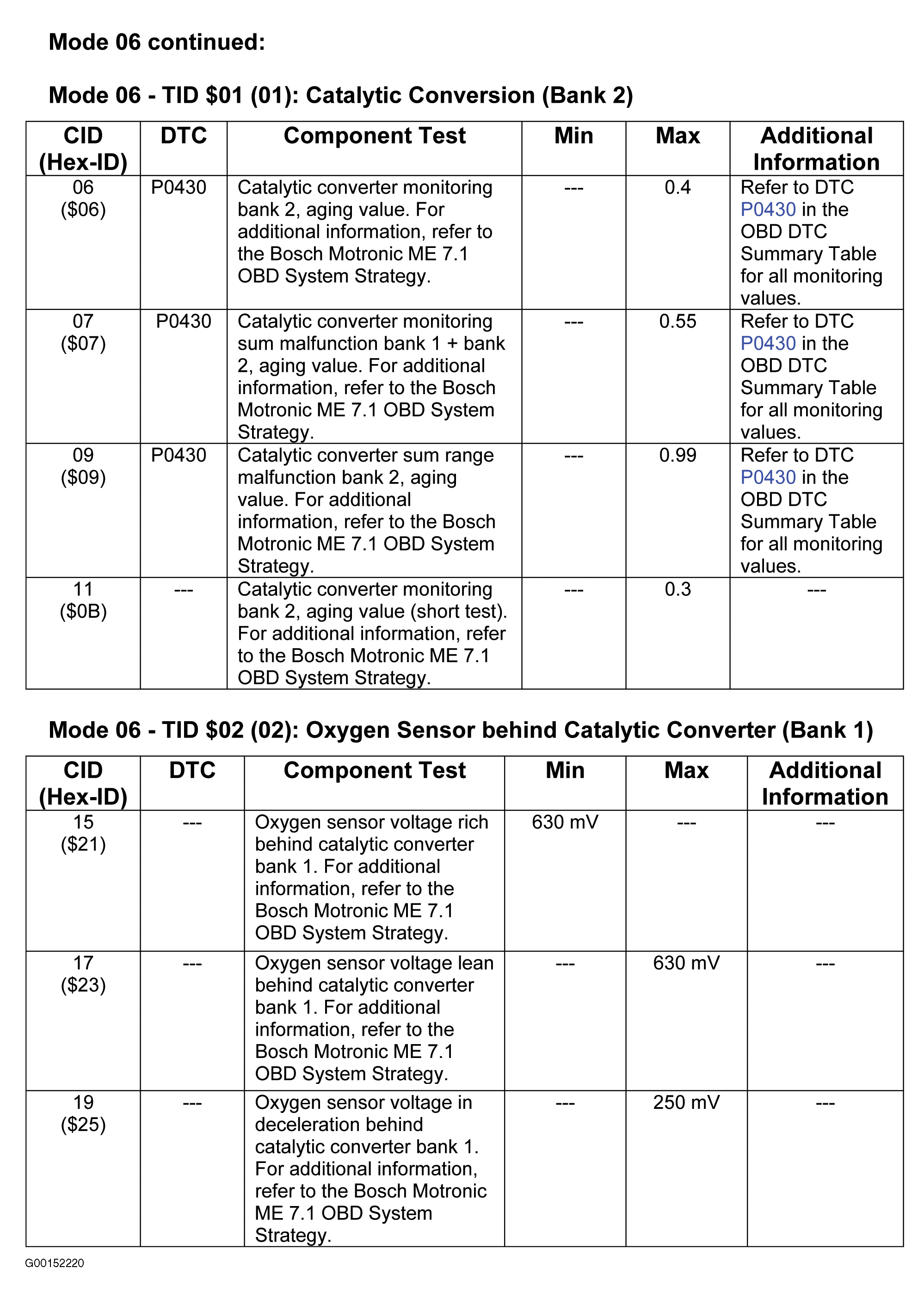

G00152220

Courtesy of VOLKSWAGEN UNITED STATES, INC.

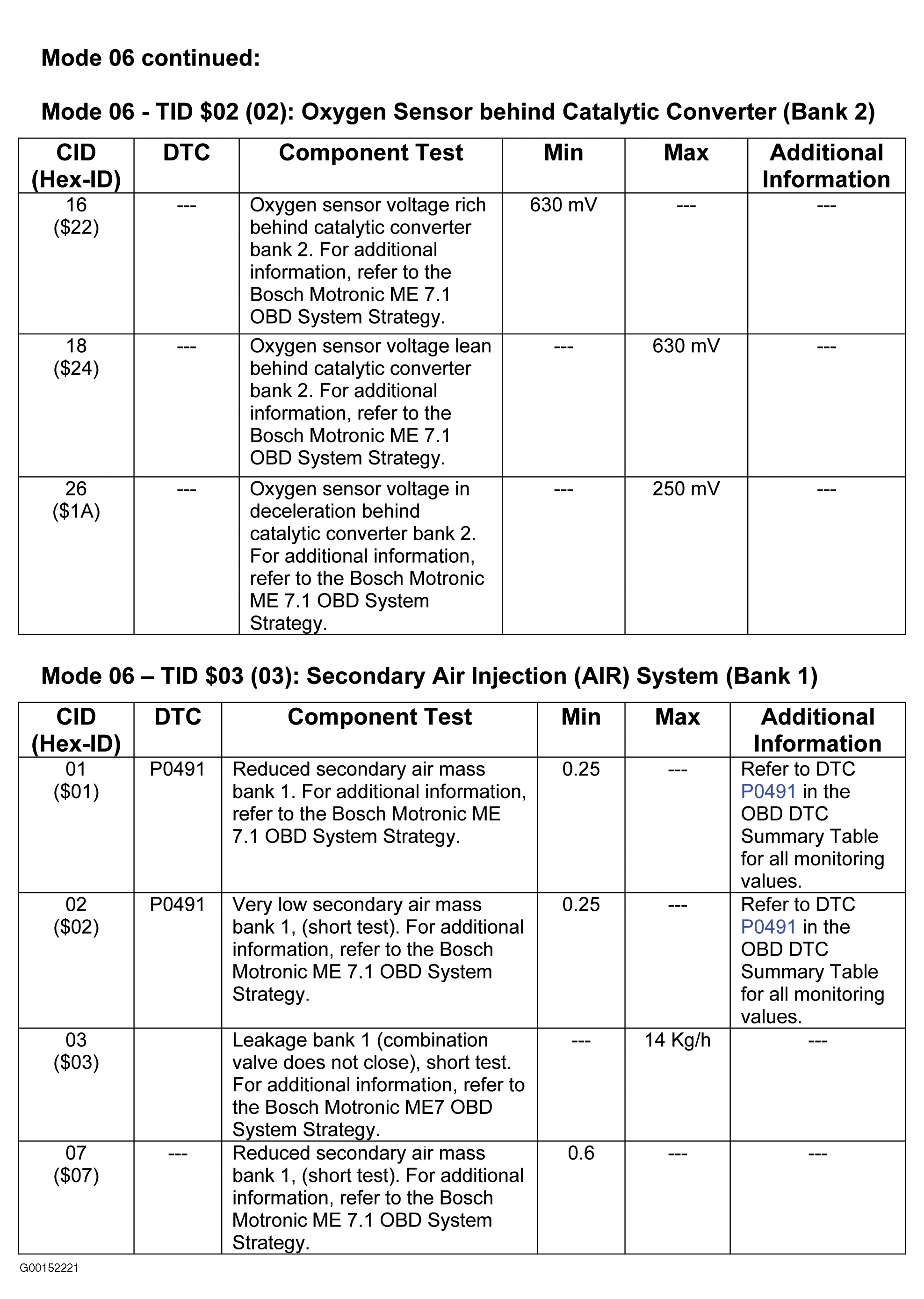

Fig 46: Mode 6 Data (2004 3.2L BJS) (3 Of 6)

G00152221

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 47: Mode 6 Data (2004 3.2L BJS) (4 Of 6)

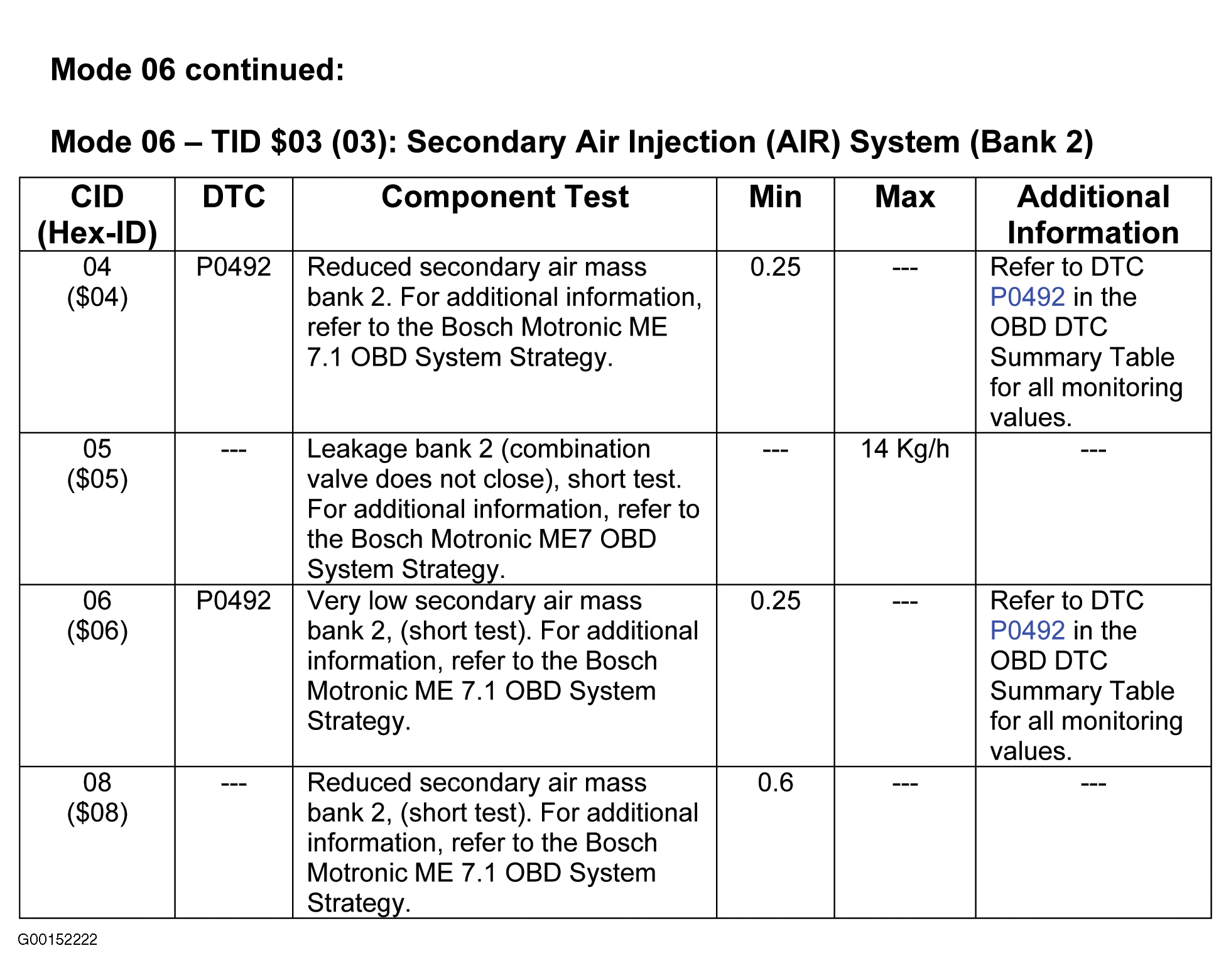

G00152222

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 48: Mode 6 Data (2004 3.2L BJS) (5 Of 6)

G00152223

Courtesy of VOLKSWAGEN UNITED STATES, INC.

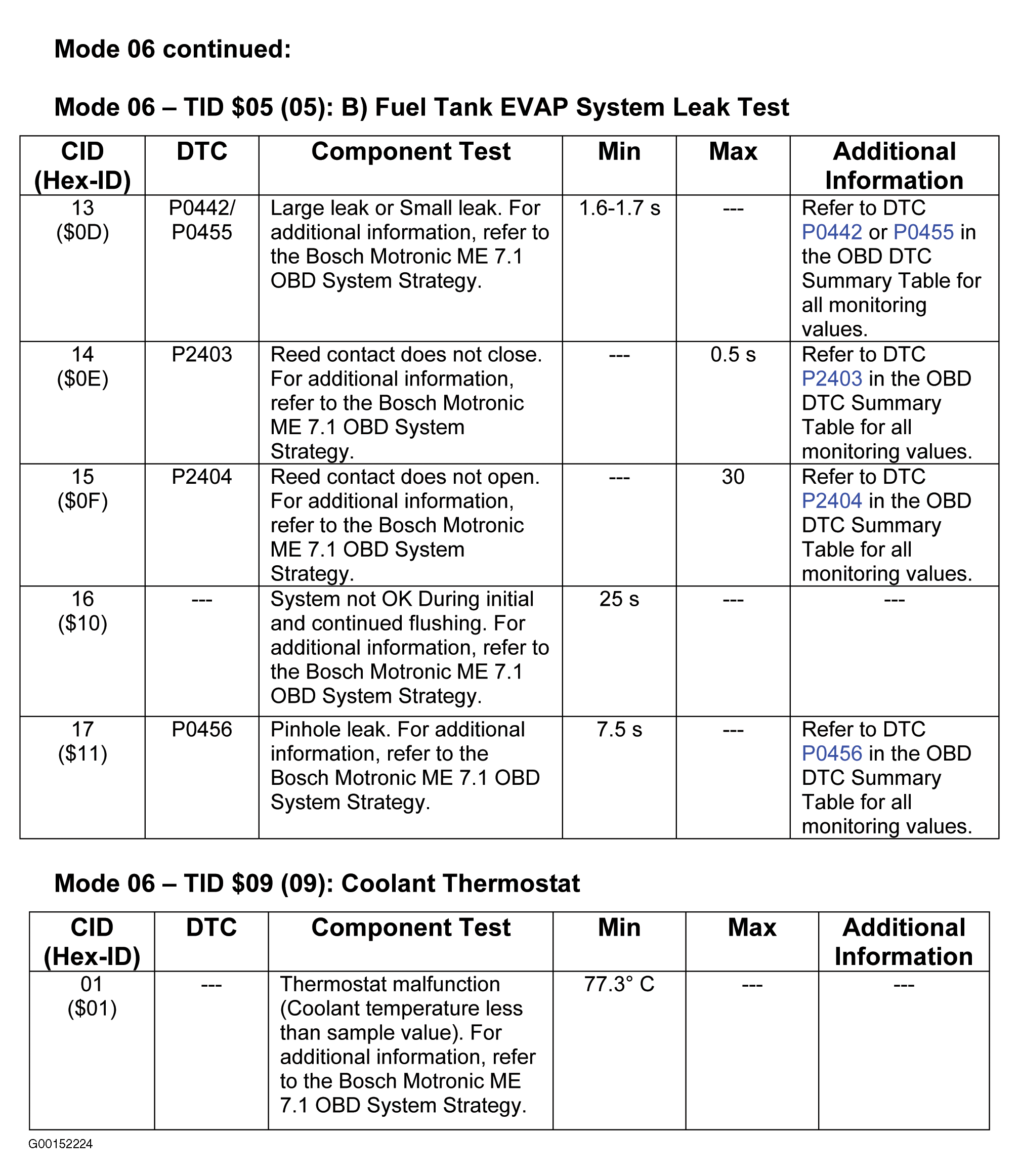

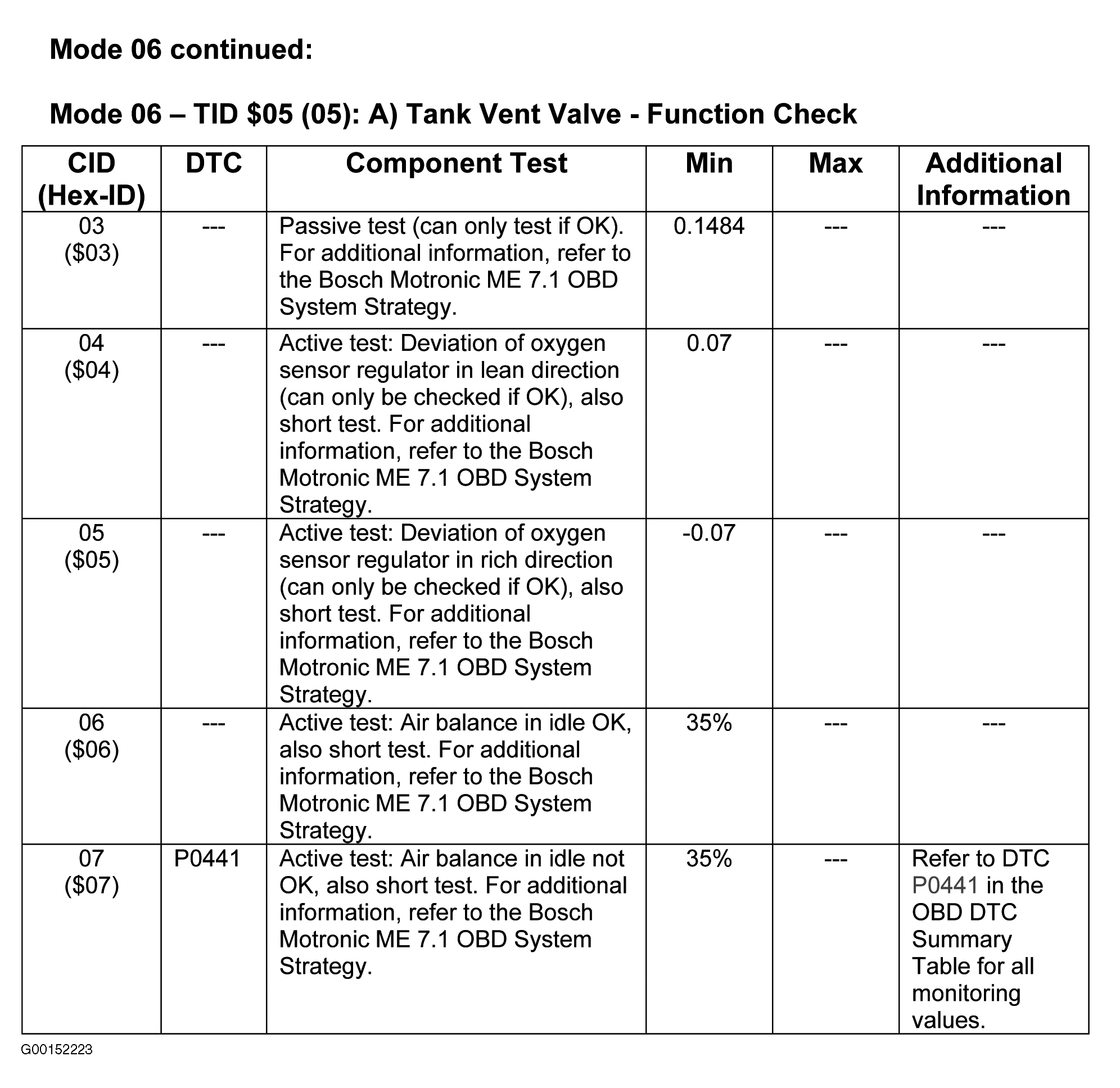

Fig 49: Mode 6 Data (2004 3.2L BJS) (6 Of 6)

G00152224

Courtesy of VOLKSWAGEN UNITED STATES, INC.

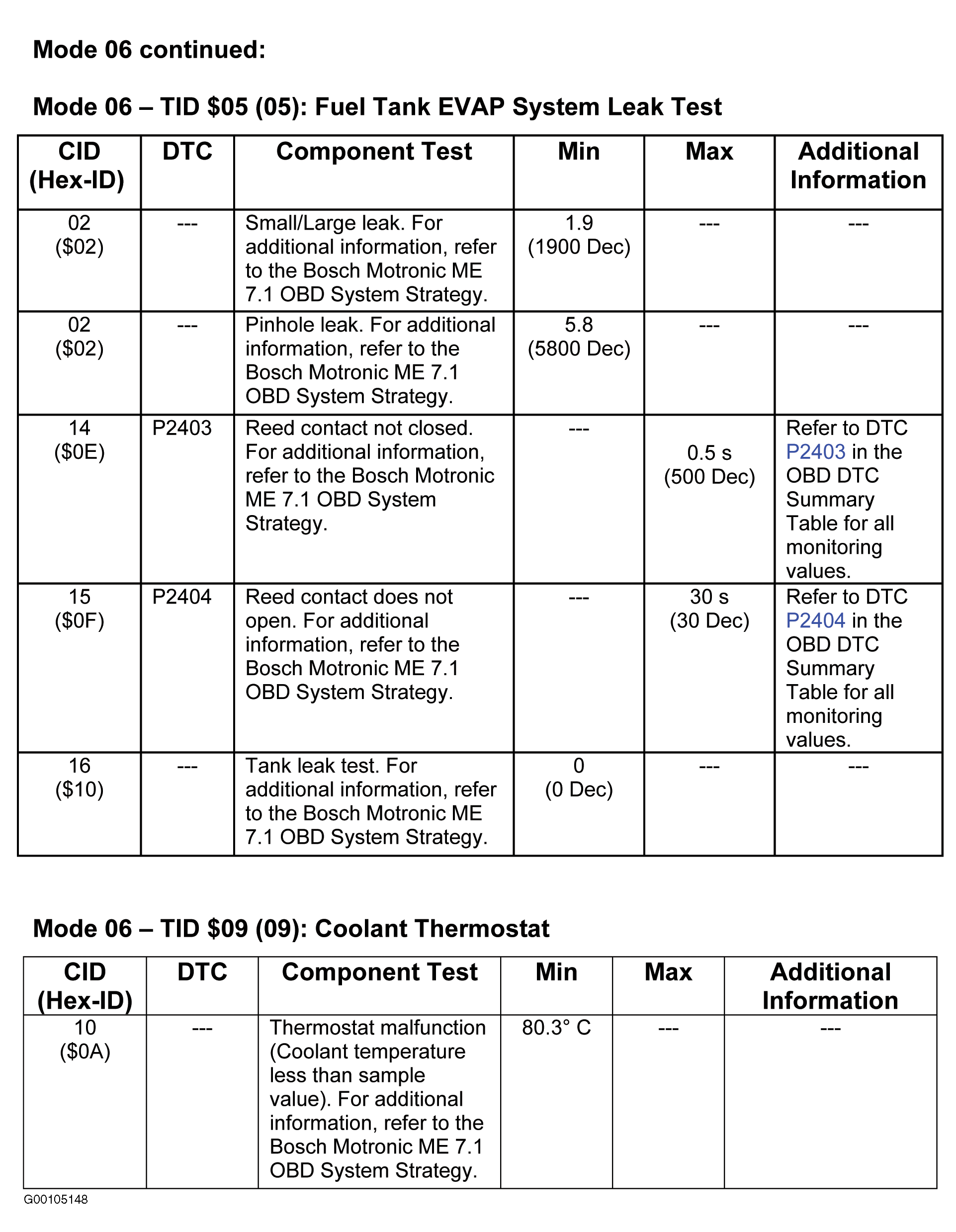

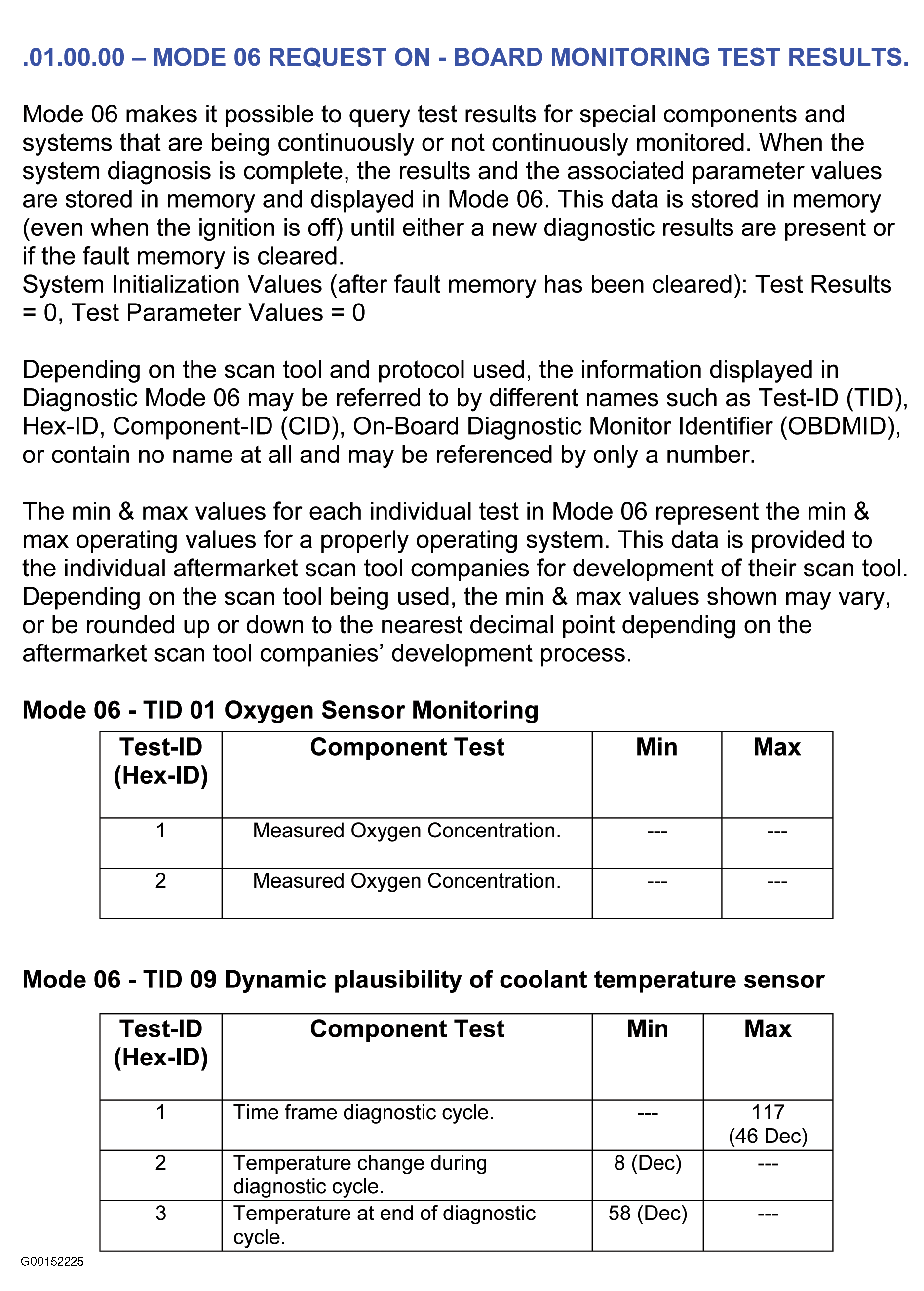

Fig 50: Mode 6 Data (2004-05 1.9L BEW) (1 Of 3)

G00152225

Courtesy of VOLKSWAGEN UNITED STATES, INC.

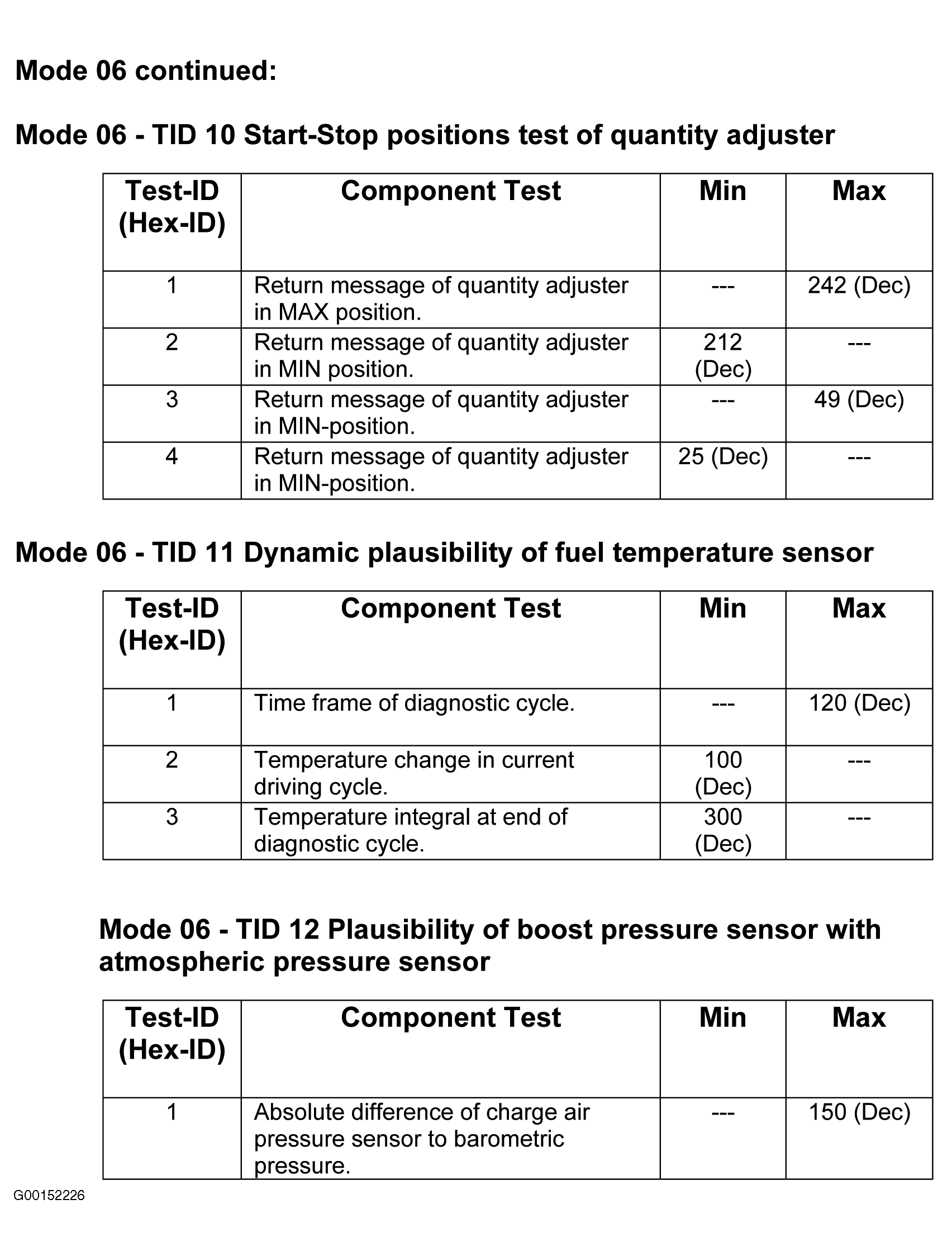

Fig 51: Mode 6 Data (2004-05 1.9L BEW) (2 Of 3)

G00152226

Courtesy of VOLKSWAGEN UNITED STATES, INC.

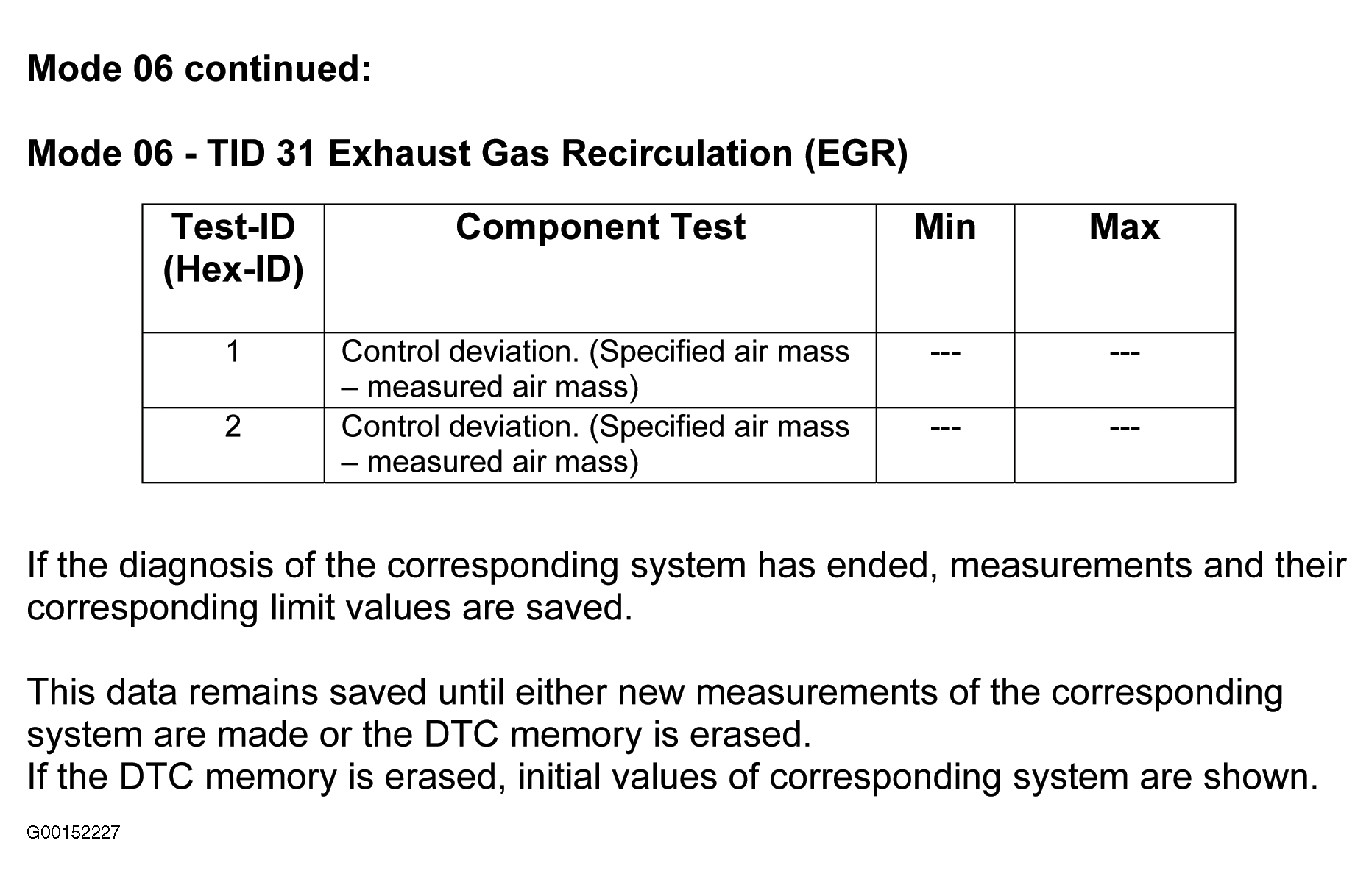

Fig 52: Mode 6 Data (2004-05 1.9L BEW) (3 Of 3)

G00152227

Courtesy of VOLKSWAGEN UNITED STATES, INC.

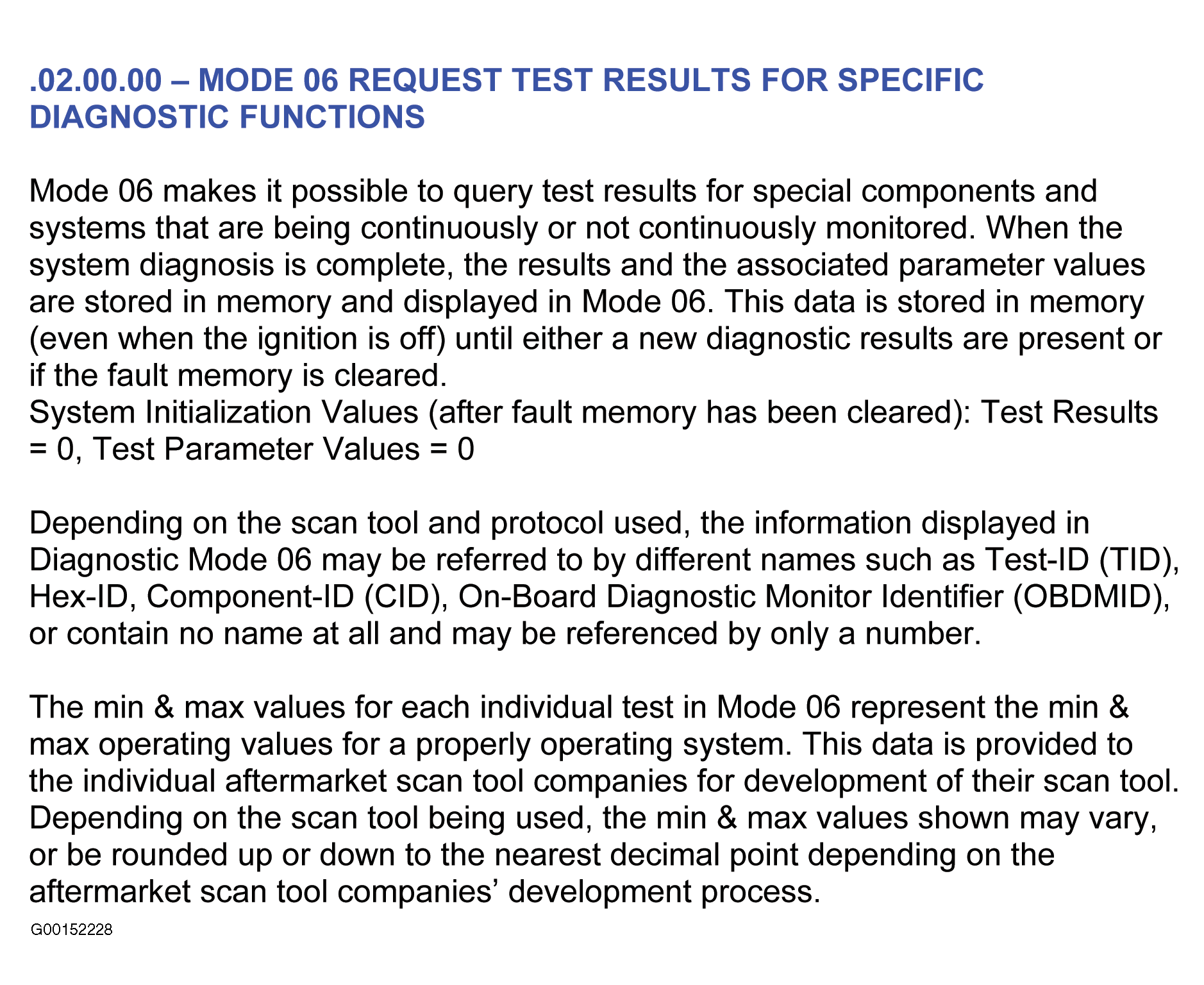

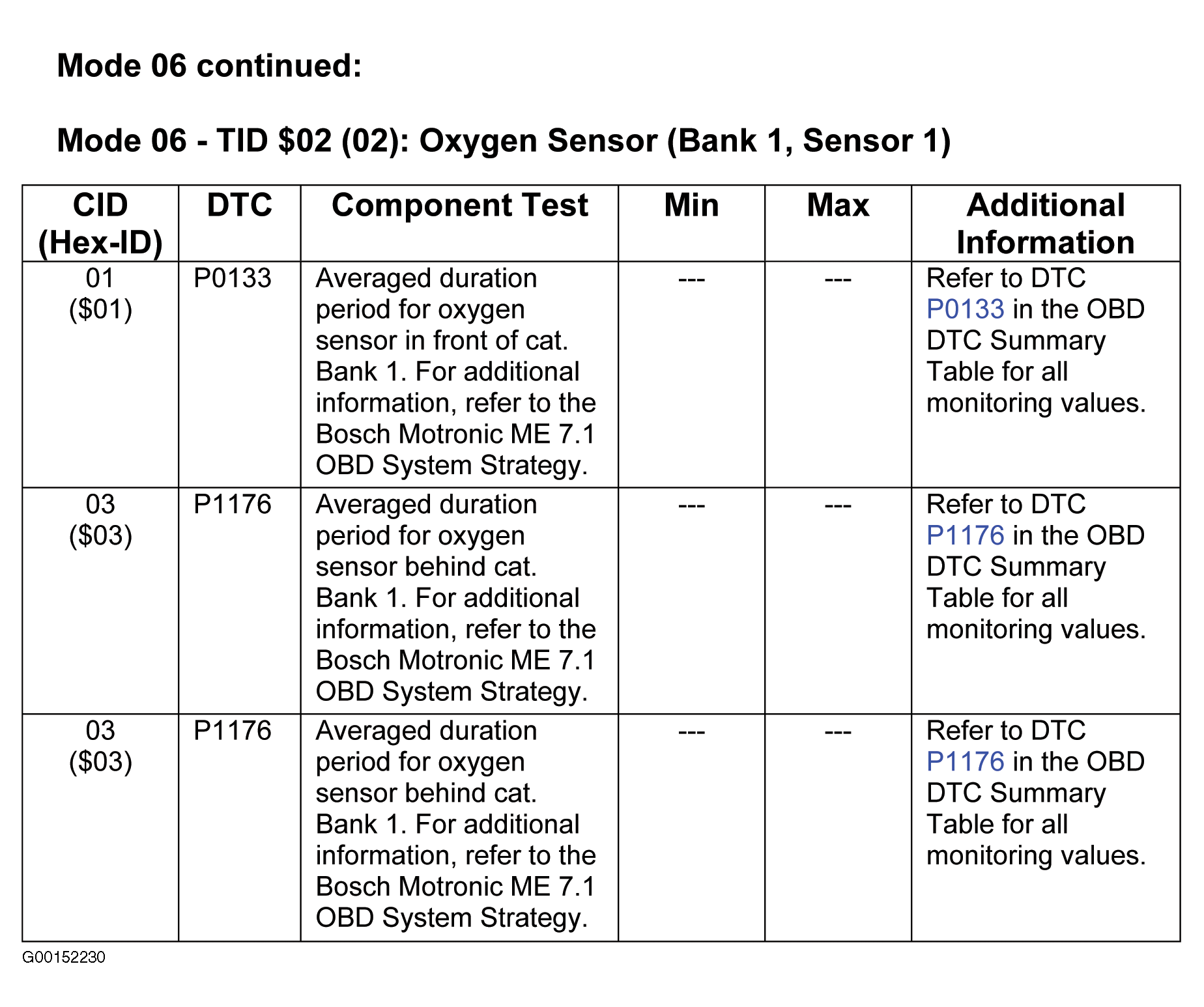

Fig 53: Mode 6 Data (2001-02 2.0L AVH) (1 Of 6)

G00152228

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 54: Mode 6 Data (2001-02 2.0L AVH) (2 Of 6)

G00152229

Courtesy of VOLKSWAGEN UNITED STATES, INC.

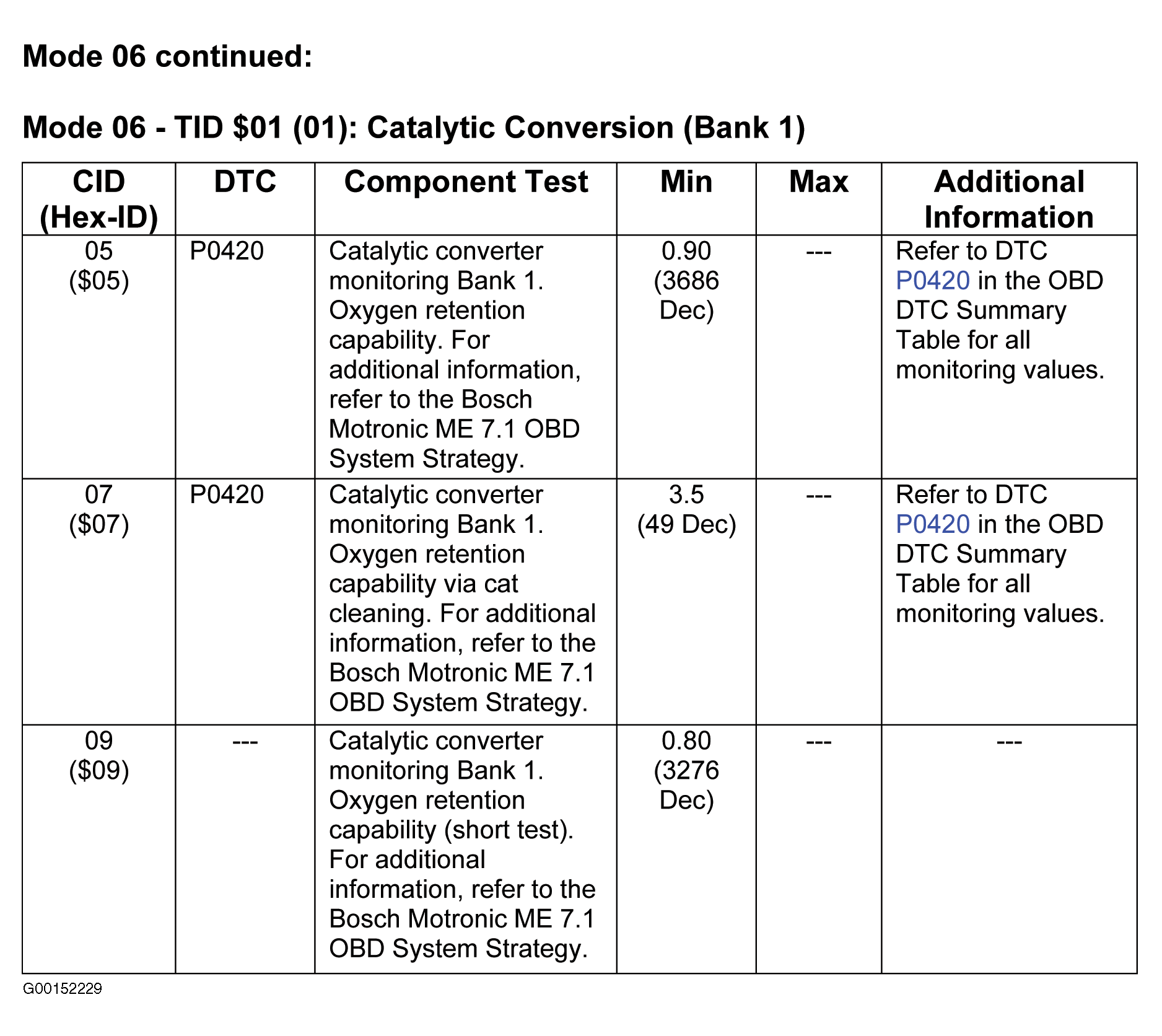

Fig 55: Mode 6 Data (2001-02 2.0L AVH) (3 Of 6)

G00152230

Courtesy of VOLKSWAGEN UNITED STATES, INC.

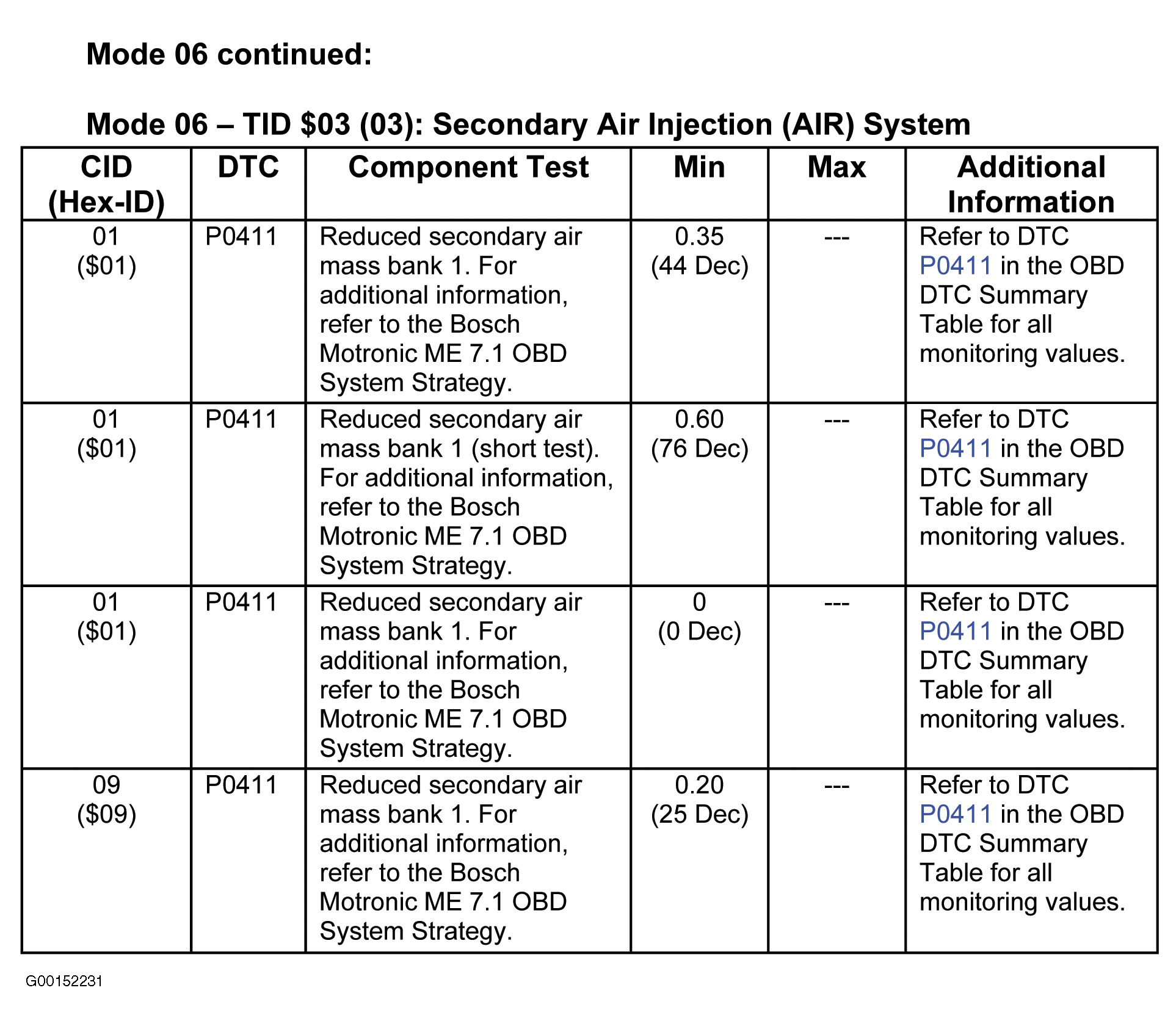

Fig 56: Mode 6 Data (2001-02 2.0L AVH) (4 Of 6)

G00152231

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 57: Mode 6 Data (2001-02 2.0L AVH) (5 Of 6)

G00152232

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 58: Mode 6 Data (2001-02 2.0L AVH) (6 Of 6)

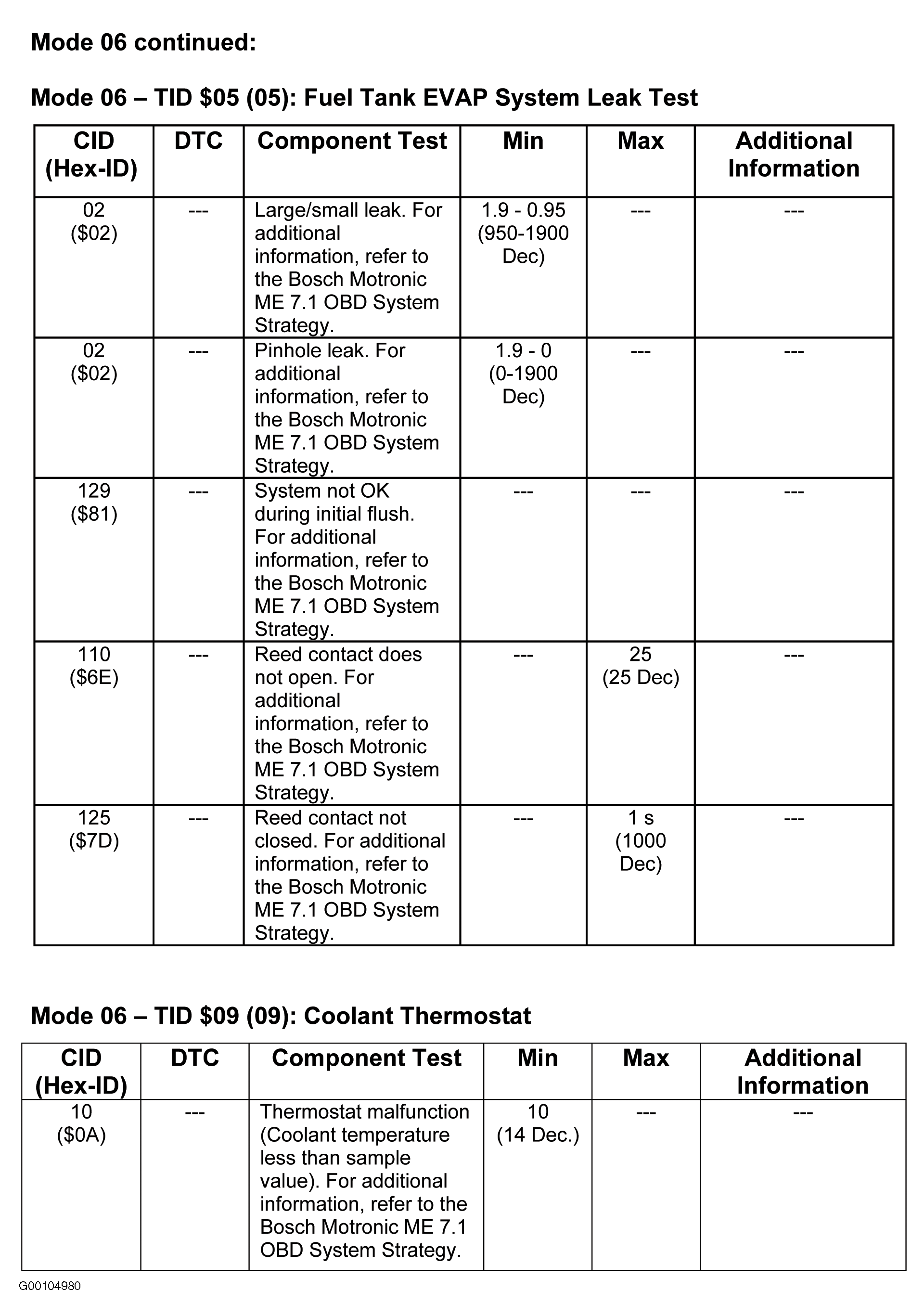

G00104980

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 59: Mode 6 Data (2003 2.0L AVH) (1 Of 6)

G00104945

Courtesy of VOLKSWAGEN UNITED STATES, INC.

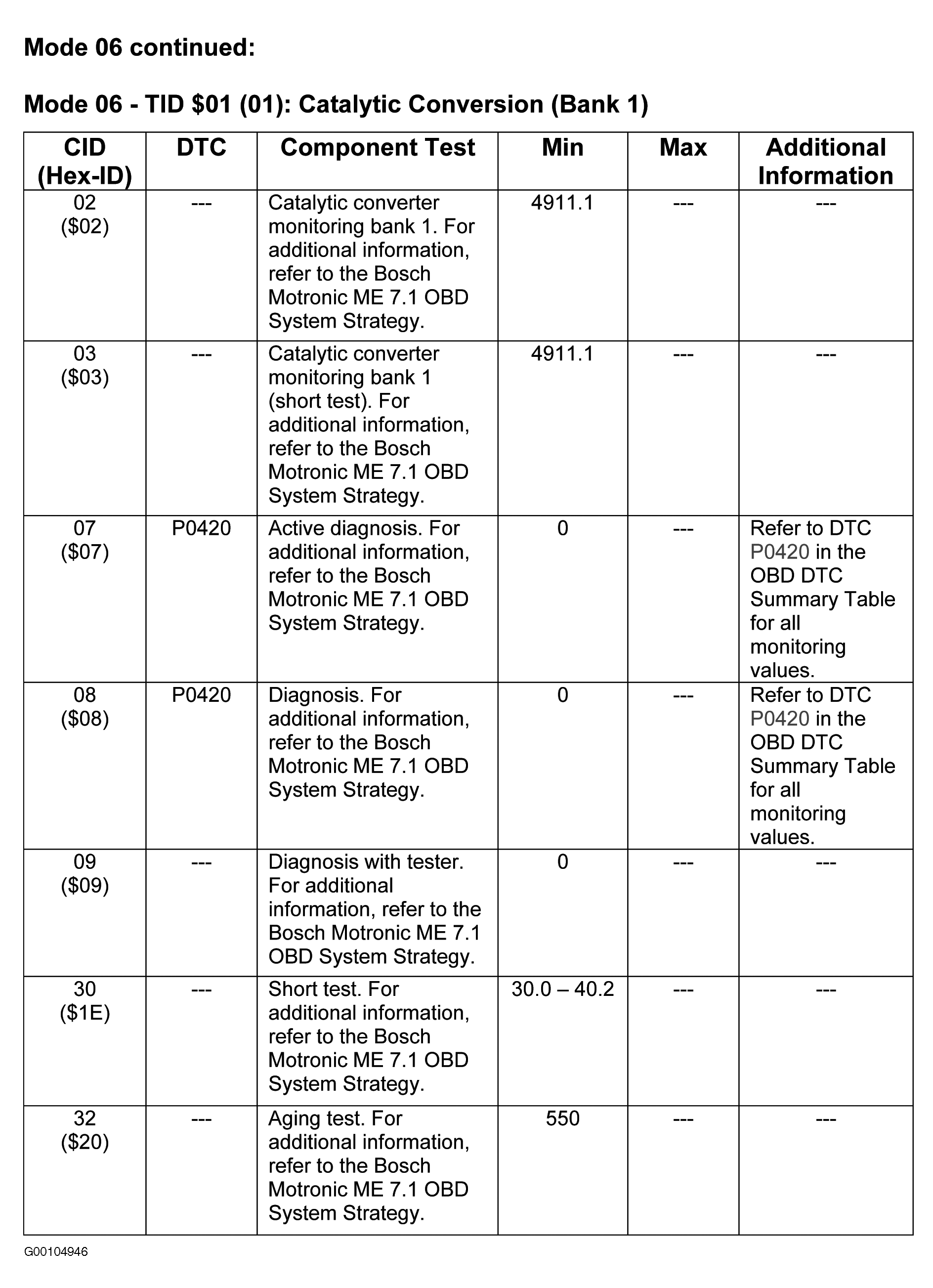

Fig 60: Mode 6 Data (2003 2.0L AVH) (2 Of 6)

G00104946

Courtesy of VOLKSWAGEN UNITED STATES, INC.

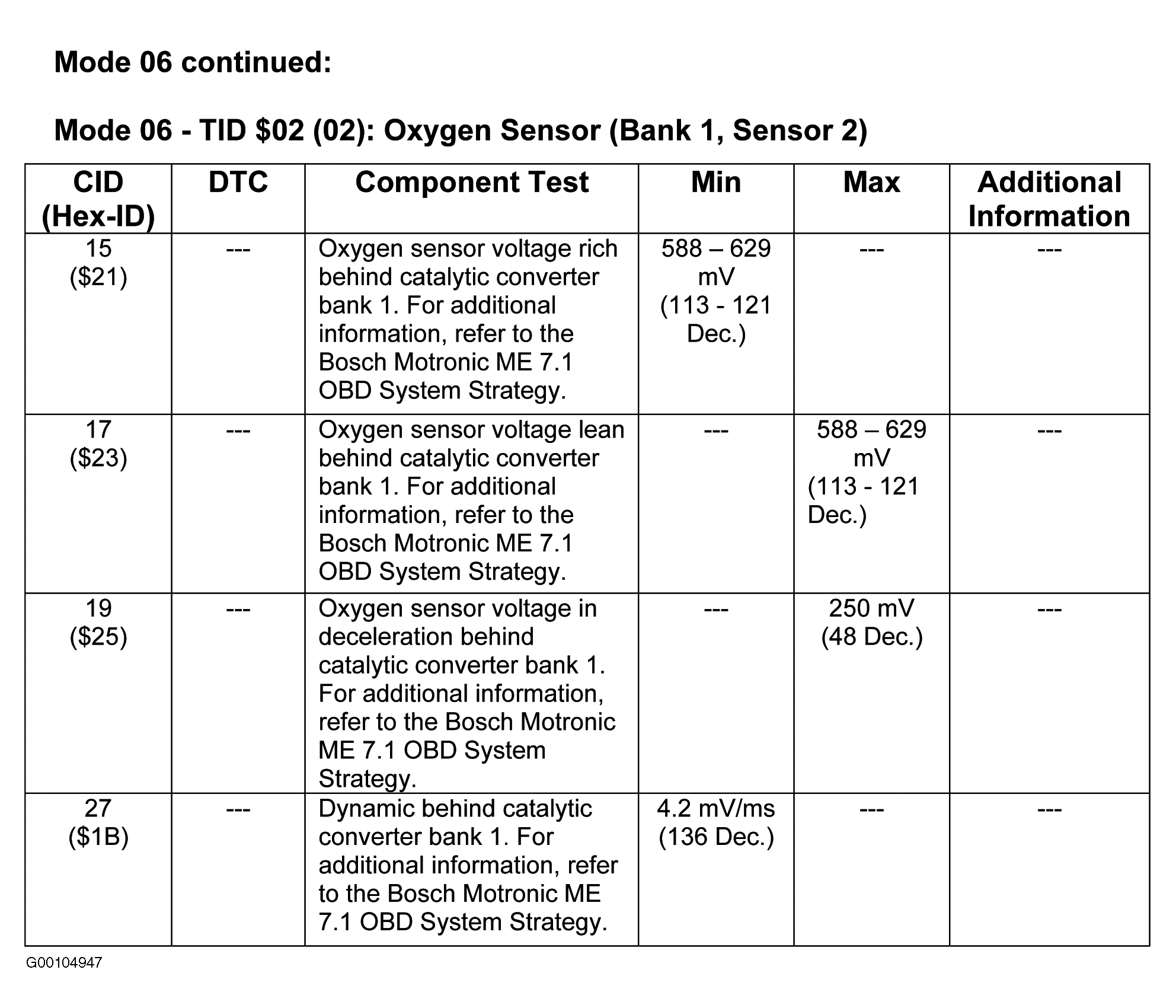

Fig 61: Mode 6 Data (2003 2.0L AVH) (3 Of 6)

G00104947

Courtesy of VOLKSWAGEN UNITED STATES, INC.

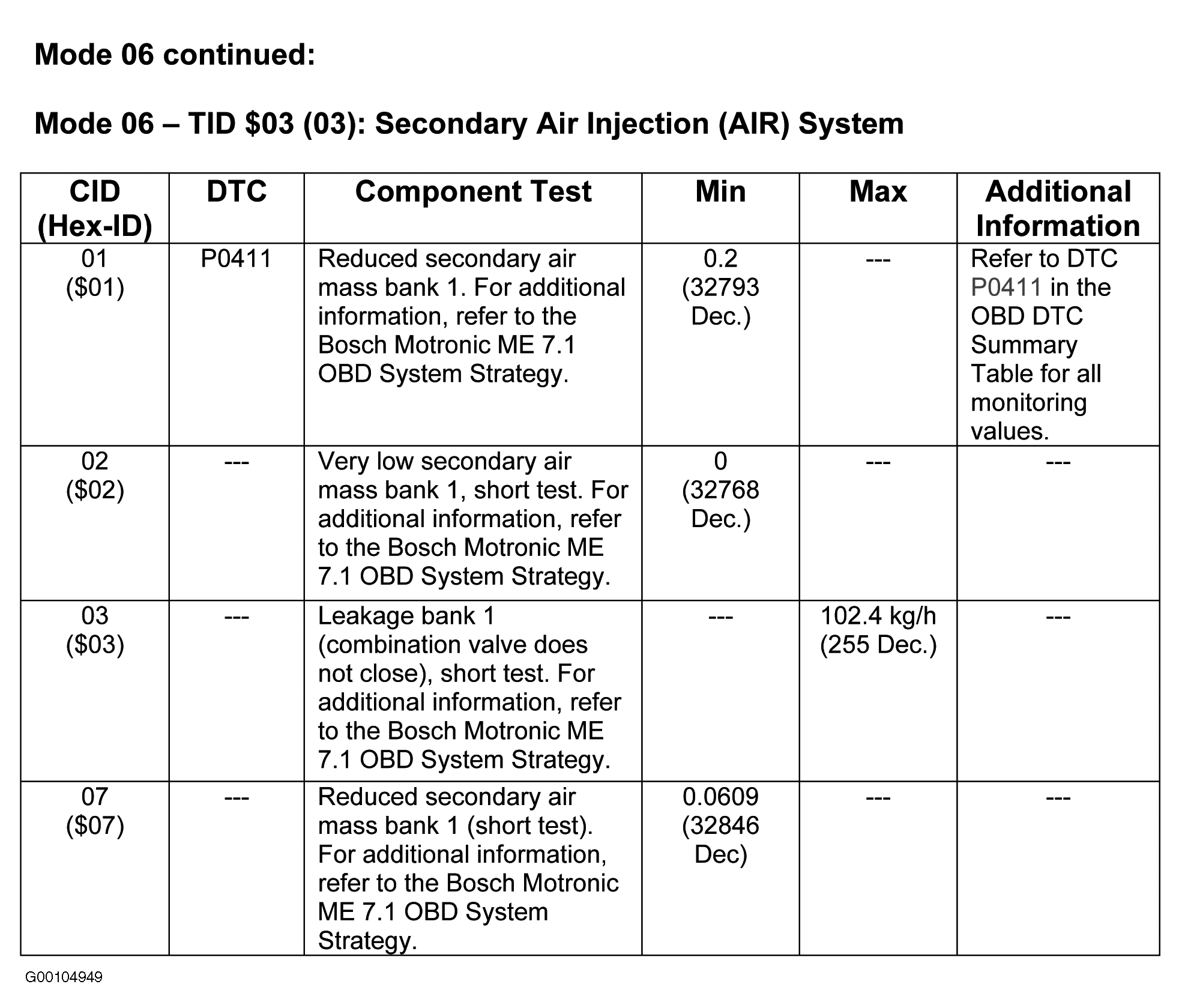

Fig 62: Mode 6 Data (2003 2.0L AVH) (4 Of 6)

G00104949

Courtesy of VOLKSWAGEN UNITED STATES, INC.

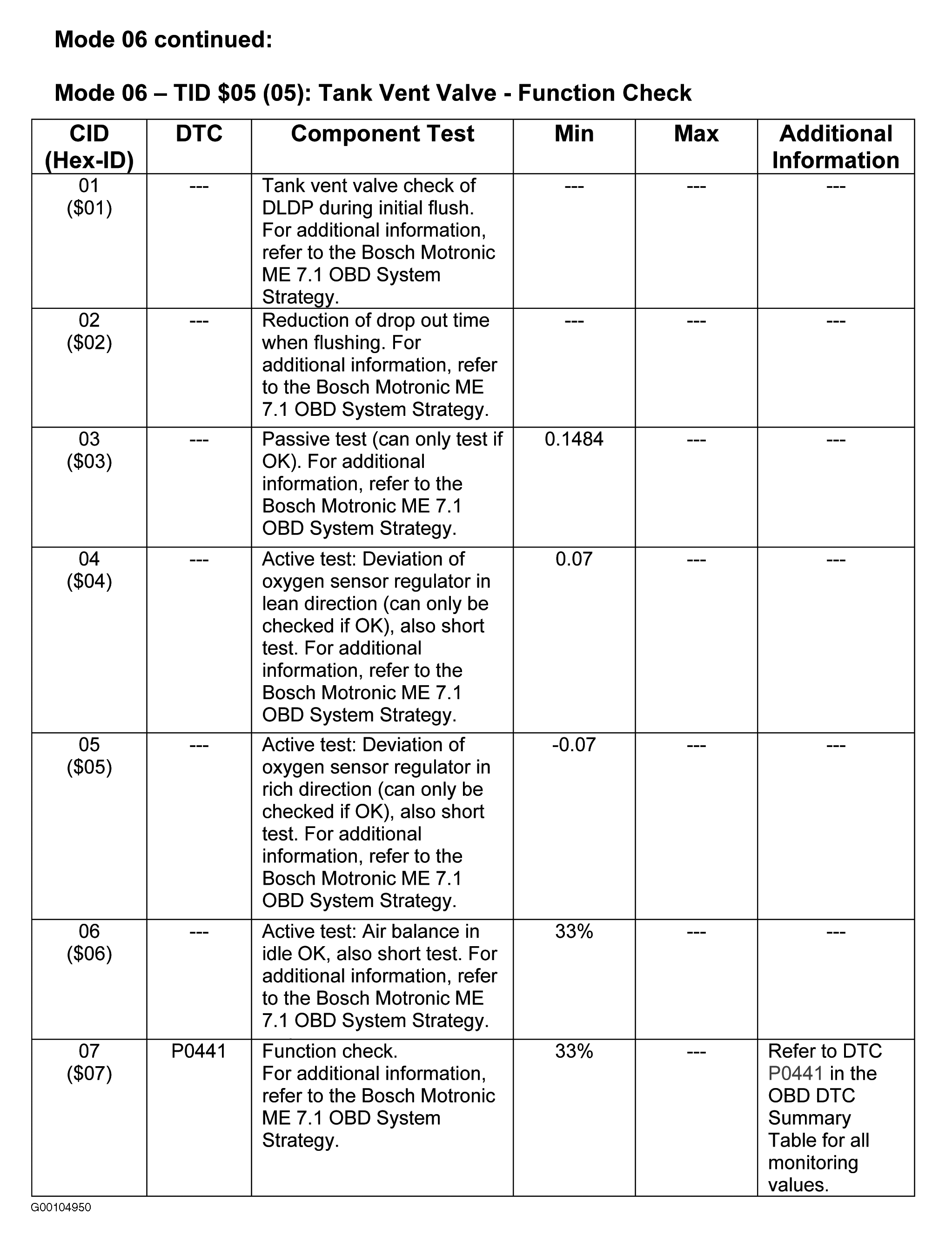

Fig 63: Mode 6 Data (2003 2.0L AVH) (5 Of 6)

G00104950

Courtesy of VOLKSWAGEN UNITED STATES, INC.

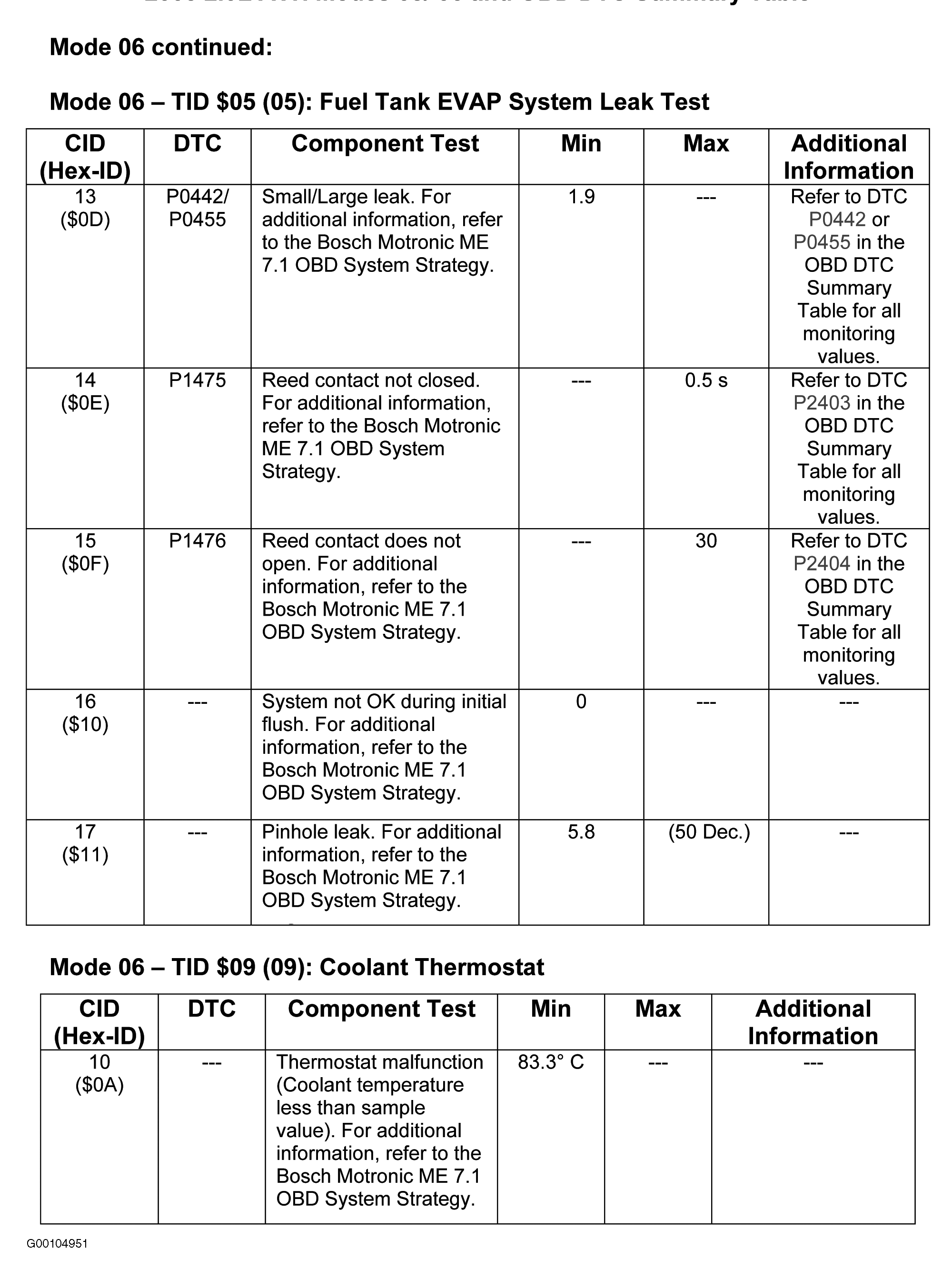

Fig 64: Mode 6 Data (2003 2.0L AVH) (6 Of 6)

G00104951

Courtesy of VOLKSWAGEN UNITED STATES, INC.
