Instrument Cluster Indicator Lamps

NOTE:

Different instrument clusters are used, depending on vehicle equipment. Therefore, the arrangement of the control lamps may deviate from the illustration.

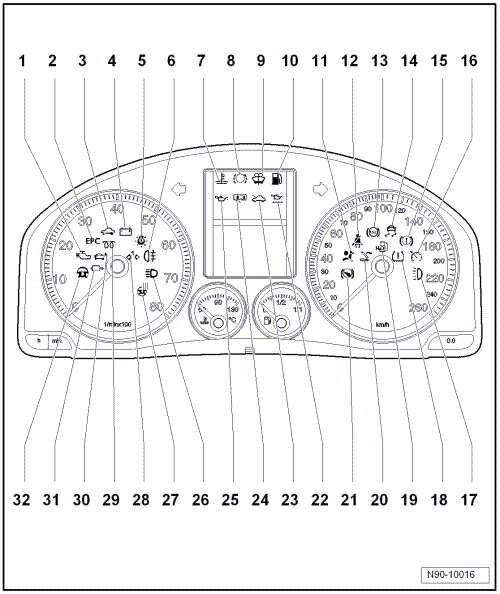

Fig 1: Identifying Instrument Cluster Warning And Indicator Lamps, Overview
GWWN90-10016Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. - Electric On Board Diagnostics (EOBD)
  2. - Engine Interference (EPC)
    • the indicator lamp is only on gasoline vehicles
  3. - Immobilizer Lock-Out
  4. - Load Control
  5. - Lamp Failure
  6. - Rear Fog Lamps
  7. - Low Coolant
  8. - Brake Lining Wear
  9. - Low Washer Fluid Level
  10. - Fuel Reserve
  11. - Airbag Indicator
  12. - Seat Belt
  13. - Anti-Lock Braking System (ABS)
  14. - Electronic Stabilization Program (ESP)
  15. - Insufficient Brake Fluid/Parking Brake
  16. - Cruise Control System
  17. - Daytime Driving Light
  18. - Tire Pressure Monitoring Display
  19. - Water In Fuel
  20. - Backrest Lock
  21. - Shift lock
    • Warning lamp only present in vehicles with automatic transmission.
  22. - Oil Level
  23. - Hood Open
  24. - Door Open
  25. - Oil Pressure
  26. - High Beam Headlamp
  27. - Steering Wheel Heater
  28. - Trailer Turn Signal System
  29. - Glow Plug System
    • Indicator lamp only present in vehicles with diesel engine.
  30. - Fuel Tank Cap Open
  31. - Exhaust Filter
  32. - Electro-Mechanical Power Steering (EPS - Electronic Power Steering)
