Side Upholstery, 4-Door

NOTE:

Removal and installation is described for the right side of the vehicle. Removing and installing on the left side is identical.

Removing

-- Remove the seat bench. Refer to BENCH SEAT

-- Remove nut -1- (8 Nm).

-- Fold backrest forward.

-- Pull side upholstery -4- upward out of mounts -2- and -3- in body.

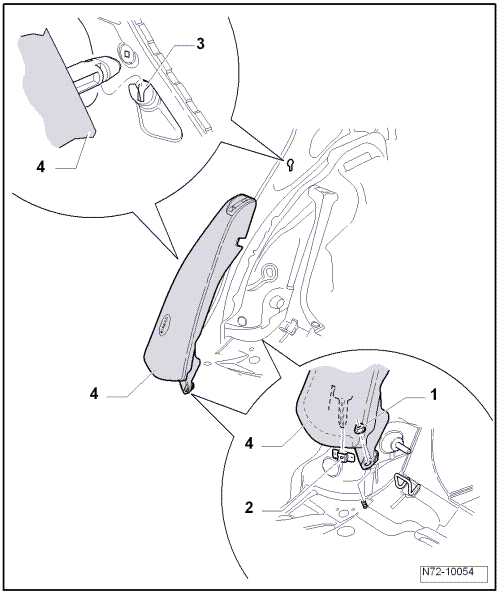

Fig 1: Side Upholstery Remove/Install Components (4-Door)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

-- Install in reverse order of removal.
