Windshield, assembly overview

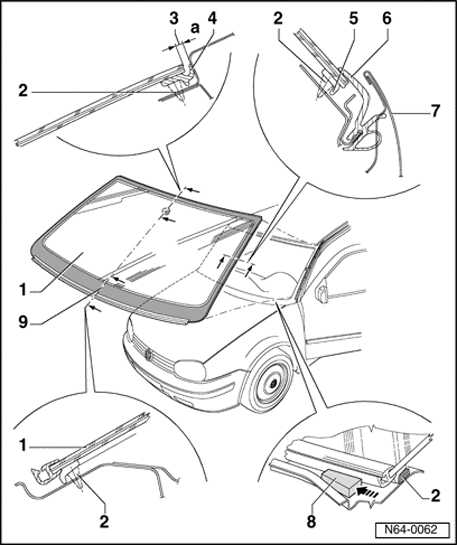

Fig 1: Identifying Windshield Assembly Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Windshield

• Removing windshield. Refer to Windshield, removing
• Installing windshield. Refer to Windshield, installing

2 - PUR adhesive sealant

• Bead cross section:
• Width = 7 mm
• Height = 11 mm (including pre-coating, residual material on window glass and window flange)
• Minimum curing time. Refer to Minimum curing time

3 - Gap dimension - a - = 4 mm

4 - Sealing lip (component part of pre-coating)

5 - Spacer (component part of pre-coating)

6 - Roof molding

7 - Door

8 - Window adjuster

• 443,845,631 A

9 - PUR adhesive sealant joint
