Pass-Through Unit With Center Armrest

Removing

-- Remove upholstery insert -1- beneath center armrest.

-- Open storage unit -2- and remove two bolts -3- (9 Nm).

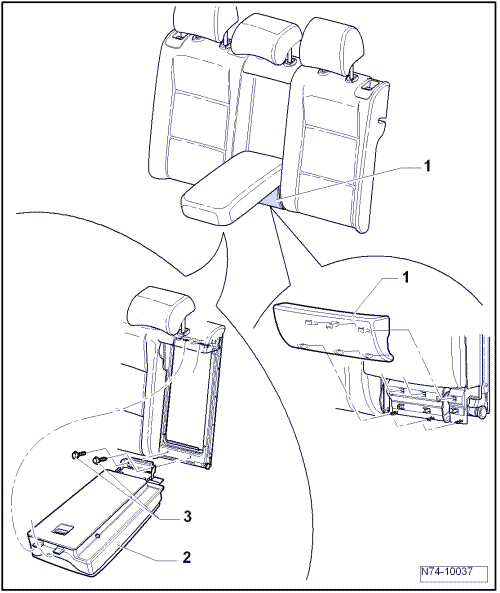

Fig 1: Storage Unit With Center Arm Rest Removing/Installing Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

-- Install in reverse order of removal.
