Bench Seat Cover And Cushion

Removing

-- Remove the seat bench. Refer to BENCH SEAT

-- Detach all cover profiles -arrows- from seat frame under the bench seat.

-- Release respective Velcro strap -1- in area of seat belt latches.

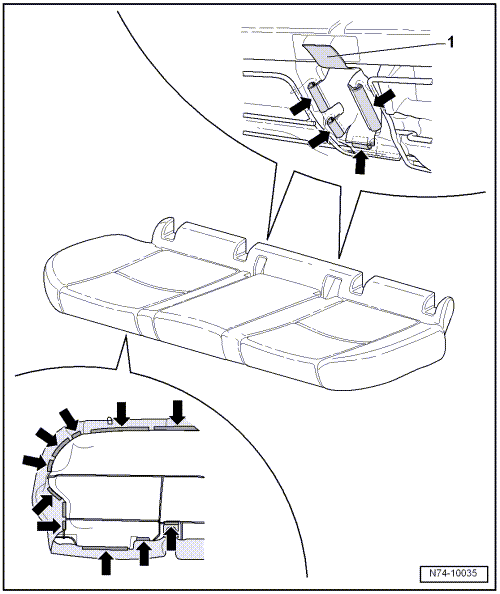

Fig 1: Locating Profiles Under Seat Bench

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Roll up cover on the sides.

-- Using a small screwdriver, press apart side ribs of mounts -1- and pull out grip channels -2-.

-- Remove cover -3- and upholstery -4- from seat frame -5-.

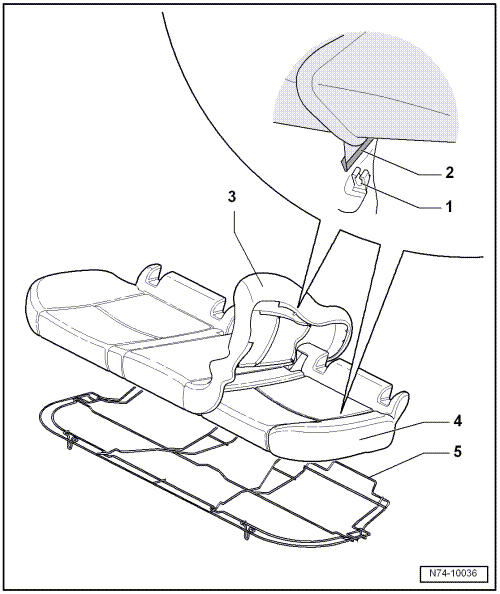

Fig 2: Cover And Upholstery For Seat Bench Remove/Install Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

-- Install in reverse order of removal.
