Tail Lamp Assembly Inside Side Panel Overview, Through 11.05

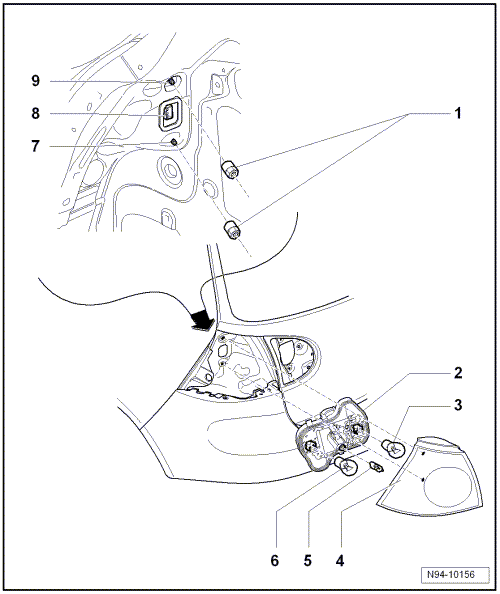

Fig 1: Rear Lights In Rear Fender Through 10. 05, Assembly

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Tightening Specifications, refer to TIGHTENING SPECIFICATIONS, TAIL LAMPS IN SIDE PANEL .

1. - Nuts
2. - Bulb Holder
   • Removing and installing, refer to SIDE PANEL TAIL LAMP BULB HOLDER .
3. - Left Tail lamp -M4- and Right Tail lamp -M2-
   • Bulb 12V, P 21 W
4. - Tail Lamp Assembly Housing In Side Panel
   • Removing and installing, refer to TAIL LAMPS IN SIDE PANEL .
5. - Left Rear Turn Signal Lamp -M6- and Right Rear Turn Signal Lamp -M8-
   • Bulb 12V, H 6 W
6. - Left Brake Lamp -M9- and Right Brake Lamp -M10-
   • Bulb 12V, P 21 W
7. - Threaded Pins On Taillamp Housing In Lower Side Panel
8. - Connector On Taillamp Housing In Side Panel
9. - Threaded Pins On Taillamp Housing In Upper Side Panel
