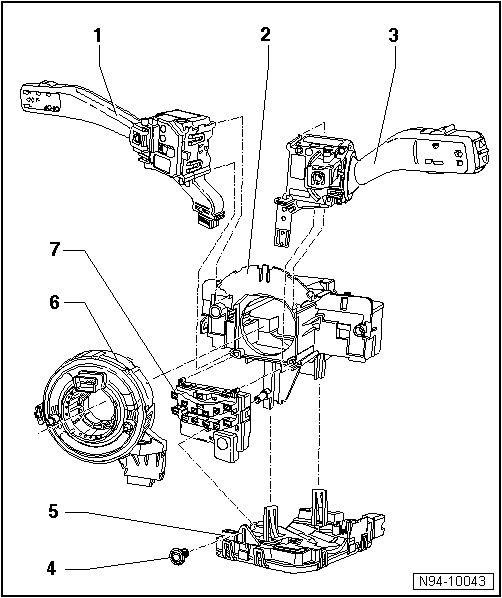

Steering Column Switch Overview
- - Turn Signal Switch
- Follow the removing and installing sequence. Refer to STEERING COLUMN SWITCH COMPONENTS, REMOVAL AND INSTALLATION SEQUENCE .
- Removing and installing, refer to TURN SIGNAL SWITCH .
- The "turn signal switch" consists of the turn signal switch -E2-, headlamp dimmer/flasher switch -E4- and, depending on the equipment, the cruise control switch -E45-.
- In the illustration, the "turn signal switch" is depicted without cruise control switch -E45-
- - Base Carrier For Steering Column Switches
- Follow the removing and installing sequence. Refer to STEERING COLUMN SWITCH COMPONENTS, REMOVAL AND INSTALLATION SEQUENCE .
- Removing and installing, refer to STEERING COLUMN SWITCH BASE PLATE .
- - Windshield Wiper Switch -E-
- Follow the removing and installing sequence. Refer to STEERING COLUMN SWITCH COMPONENTS, REMOVAL AND INSTALLATION SEQUENCE .
- Removing and installing, refer to WINDSHIELD WIPER SWITCH -E- .
- - Bolt
- - Steering Column Electronic Systems Control Module -J527-
- Follow the removing and installing sequence. Refer to STEERING COLUMN SWITCH COMPONENTS, REMOVAL AND INSTALLATION SEQUENCE .
- Removing and installing, refer to STEERING COLUMN ELECTRONIC SYSTEMS CONTROL MODULE -J527- .
- Coding, refer to STEERING COLUMN ELECTRONIC SYSTEMS CONTROL MODULE -J527-, CODING .
- - Airbag Spiral Spring/Return Spring With Slip Ring -F138-
- Follow the removing and installing sequence. Refer to STEERING COLUMN SWITCH COMPONENTS, REMOVAL AND INSTALLATION SEQUENCE .
- Removing and installing, refer to AIRBAG SPIRAL SPRING/RETURN SPRING WITH SLIP RING -F138- .
- - Steering Angle Sensor -G85-
- Follow the removing and installing sequence. Refer to STEERING COLUMN SWITCH COMPONENTS, REMOVAL AND INSTALLATION SEQUENCE .
- Removing and installing, refer to STEERING ANGLE SENSOR -G85- .
- Basic setting, refer to STEERING ANGLE SENSOR -G85- BASIC SETTING .
