Rear Lid Tail Lamps Overview

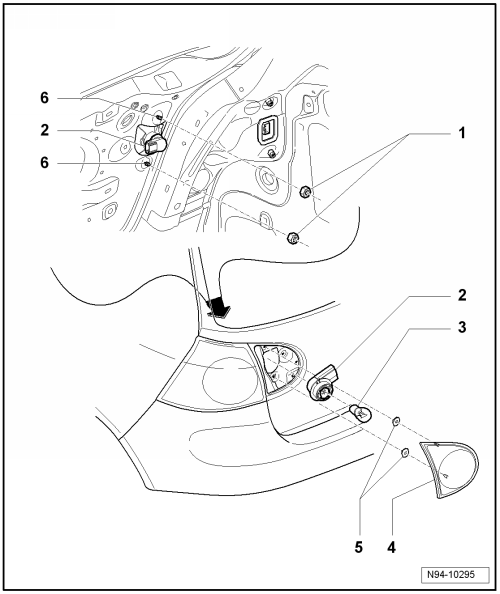

Fig 1: Rear Lights In Rear Lid, Assembly

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Tightening Specifications, refer to TIGHTENING SPECIFICATIONS, TAIL LAMP ASSEMBLY IN REAR LID .

1. - Nuts
2. - Bulb Holder
   • Removing and installing, refer to REAR LID TAIL LAMP BULB HOLDER .
3. - Bulb 12V, P 21 W
   • Left Back-Up Lamp -M16- or Right Back-Up Lamp -M17-.
4. - Tail Lamp Assembly Housing In Rear Lid
   • Removing and installing, refer to REAR LID TAIL LAMPS .
5. - Washer
   • A6.5 x 14 x 1.6
6. - Screw Head To Tail Lamp Housing In Rear Lid
