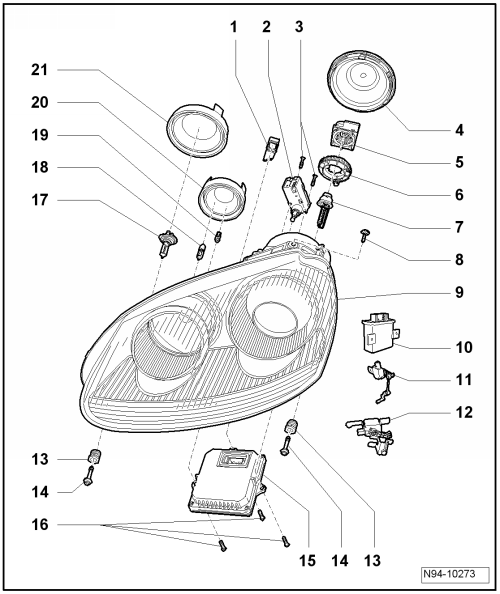

Hid Headlamps Overview
NOTE:
After performing work which can affect headlamp adjustment, check headlamp adjustment and adjust headlamps if necessary. Refer to HEADLAMPS, CHECKING AND ADJUSTING .
- Bleeder Hose
- On headlamp
- Left Headlamp Beam Adjustment Motor -V48- and Right Headlamp Beam Adjustment Motor -V49-
- Headlamp manufacturer: AL (Automotive Lighting)
- Removing and installing, refer to HID HEADLAMP BEAM ADJUSTMENT MOTORS -V48- / -V49- .NOTE:
For the first removal of Left Headlamp Beam Adjustment Motor -V48- and Right Headlamp Beam Adjustment Motor -V49- requires a repair set.
- Screws
- For Left Headlamp Beam Adjustment Motor -V48- and Right Headlamp Beam Adjustment Motor -V49-.
- Cap
- Igniter For Gas Discharge Lamps -N195-
- Lamp Locking Device
- For Left High Intensity Gas Discharge (HID) Lamp -L13- and Right High Intensity Gas Discharge (HID) Lamp -L14-.
- Left High Intensity Gas Discharge (HID) Lamp -L13- and Right High Intensity Gas Discharge (HID) Lamp -L14-
- Type D2S, 35W
- Removing and installing, refer to HID BULBS .
- Bolt
- 4 Nm
- On headlamp at top.
- Headlamp
- Removing and installing, refer to HEADLAMPS .
- Correcting installation position of headlamp. Refer to HEADLAMPS, CORRECTING INSTALLATION POSITION .
- Servicing headlamp mounting tabs. Refer to HEADLAMP MOUNTING TABS, REPAIRING .
- Headlamp Range Control Module -J431-
- Removing and installing, refer to HEADLAMP RANGE CONTROL MODULE -J431- .
- Coding, refer to HEADLAMP RANGE CONTROL MODULE -J431-, CODING .NOTE:
If Headlamp Range Control Module -J431- is coded, basic setting of headlamps must be performed after coding the control module. Refer to HEADLAMPS, CHECKING AND ADJUSTING .
- Left Front Level Control System Sensor -G78-
- Removing and installing, refer to LEVEL CONTROL SYSTEM SENSORS -G76- / -G78- .
- Checking, refer to VEHICLE LEVEL SENSOR, CHECKING .
- Left Rear Level Control System Sensor -G76-
- Removing and installing, refer to LEVEL CONTROL SYSTEM SENSORS -G76- / -G78- .
- Checking, refer to VEHICLE LEVEL SENSOR, CHECKING .
- Adjustment Bushing
- Correcting installation position of headlamp. Refer to HEADLAMPS, CORRECTING INSTALLATION POSITION .
- Bolt
- 4 Nm
- On headlamp at bottom.
- Left High-intensity Gas Discharge Lamp Control Module -J343- and Right High-intensity Gas Discharge Lamp Control Module -J344-
- Not capable of On Board Diagnostic (OBD).
- Removing and installing, refer to HID HEADLAMP CONTROL MODULES -J343- / -J344- .
- Screws
- For Left High-intensity Gas Discharge Lamp Control Module -J343- and Right High-intensity Gas Discharge Lamp Control Module -J344-.
- Left High Beam Headlamp -M30- and Right High Beam Headlamp -M32-
- Bulb H7U 12V, 55 W
- Removing and installing, refer to HIGH BEAM HEADLAMP BULB .
- Left Front Turn Signal Light -M5- and Right Front Turn Signal Light -M7-
- Bulb 12V, H2 WLL 21 W
- Removing and installing, refer to FRONT TURN SIGNAL BULB .
- Left Parking Lamp -M1- and Right Parking Lamp -M3-
- Bulb 12V, W 5 W
- Removing and installing, refer to PARKING LAMP BULB .
- Cap
- For Left Front Turn Signal Lamp -M5- and Right Front Turn Signal Lamp -M7- and for Left Parking Lamp -M1- and Right Parking Lamp -M3-.
- Cap
- For Left High Beam Headlamp -M30- and Right High Beam Headlamp -M32-.
