Fog Lamps Overview

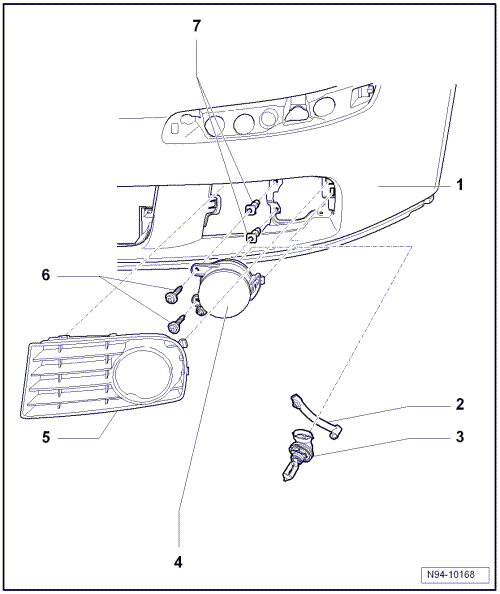

Fig 1: Fog Lamps, Assembly

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Tightening Specifications, refer to TIGHTENING SPECIFICATIONS, FOG LAMPS .

1. - Front Bumper
2. - Bleeder Hose
3. - Left Front Fog Lamp -L22- and Right Front Fog Lamp -L23
   • Bulb H11 12V, 55W
   • Removing and installing, refer to FOG LAMP BULBS .
4. - Fog Lamp Housing
   • Removing and installing, refer to FOG LAMP .
5. - Cap
6. - Screws
7. - Expanding Nuts
