Dimensions For Rear Name Plate

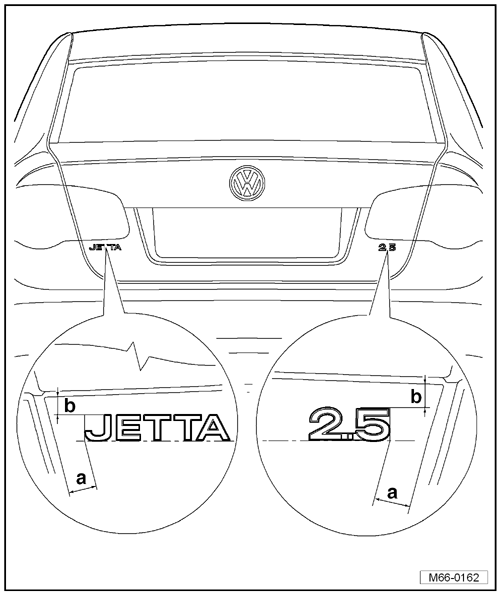

Fig 1: Identifying Dimensions Of Rear Name Plates
GWWM66-0162Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Dimension -a- = 25 mm
    • From outer edge of rear lid to name plate.
  2. Dimension -b- = 15 mm
    • From lower edge of cutout for tail lamp in rear lid to upper edge of name plate.
