Rear Wheel Housing Liner Overview

NOTE:

The illustration shows a left wheel housing liner. The right wheel housing liner is identical.

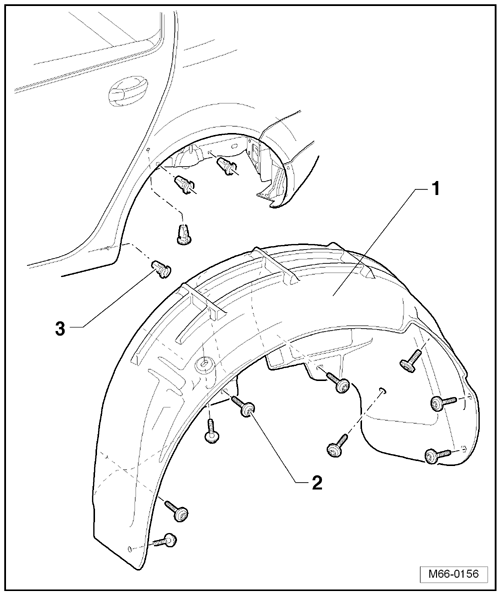

Fig 1: Identifying Rear Wheel Housing Liner - Assembly Overview
GWWM66-0156Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Wheel Housing Liner
    • Material: PP/EPDM
  2. Bolt
    • 2 Nm
    • Quantity: 9
  3. Expanding Nut
