Radiator Grille, Cup Edition, Overview

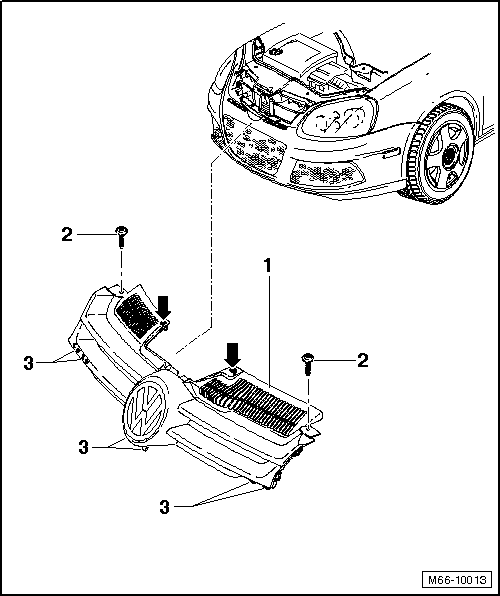

Fig 1: Identifying Radiator Grille, Cup Edition, Removal And Installation
GWWM66-10013Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Radiator Grille
  2. Bolt
    • Tightening specification: 2 Nm
    • Quantity: 2
  3. Catches
    • Quantity: 6
