Radiator Grille Overview

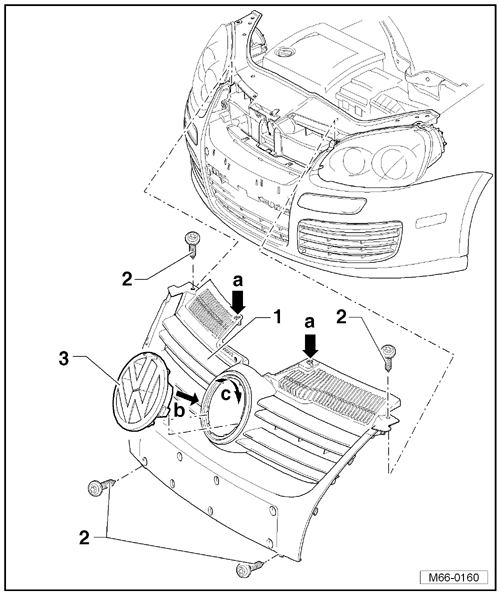

Fig 1: Identifying Radiator Grille, Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Radiator Grille
- Removing and installing, refer to RADIATOR GRILLE .
Screws
- Tightening specification: 2 Nm
- Quantity: 4
Emblem
- Clipped into radiator grille.
- Removal: Release the hook on the back of the emblem and remove by turning in the opposite direction -arrow c-.
- Install: Guide manufacturer's emblem with catch into recesses in radiator grille -arrow b-, then twist slightly in direction -arrow c- until manufacturer's emblem engages in radiator grille.
