SUBFRAME Bonded Rubber Bushings

Special tools and workshop equipment required

Installation device 3372
Assembly tool T10214
Assembly tool T10244
Thrust plate VW 401
Thrust plate VW 402

Procedures:

Pressing Out the Bonded Rubber Bushing

-- Remove subframe. Refer to SUBFRAME WITHOUT STEERING GEAR .

-- Attach T10244 to subframe.

-- Press out both bonded rubber bushings at the same time as depicted in the illustration.

Fig 1: Identifying Assembly Tool T10244 To Press Out Both Bonded Rubber Bushings Simultaneously

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Flat side of thrust piece 3372/1 must face insert -A- of T10244, otherwise insert may be damaged.

Tube T10244/3 has a larger and a smaller inner diameter. Subframe must contact larger inner diameter of T10244/3.

Pressing In the Bonded Rubber Bushing

-- Bolt both bonded rubber bushings with original bolt, cutouts -arrows- must align when doing this.

Fig 2: Identifying Both Bonded Rubber Bushings Bolted Onto Original Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the bolted bonded-rubber bushing with bolt head facing downward into tube T10214/2.

Fig 3: Identifying Bolted Bonded-Rubber Bushing With Bolt Head Inserted Facing Downward Into Tube T10214/2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Thrust piece T10214/3
Bonded rubber mount
T10214/2
Tube T10214/1
VW 401
VW 402

-- Press bonded rubber bushing -1- in until dimension -a- has been obtained.

Fig 4: Identifying Bonded Rubber Bushing Pressed In

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Dimension -a- = 2 - 3 mm.

NOTE:

There are two different versions of the pendulum support bonded rubber bushing: the T version -I- and the V version -II-.

Fig 5: Identifying the Pendulum Support Bonded Rubber Bushing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

I - The corners on the inner core -1- face toward the opening for the pendulum support -arrow- (T version).

II - The corners on the inner core -2- face away from the opening for the pendulum support -arrow- (V version).

T Version of the Bonded Rubber Bushing

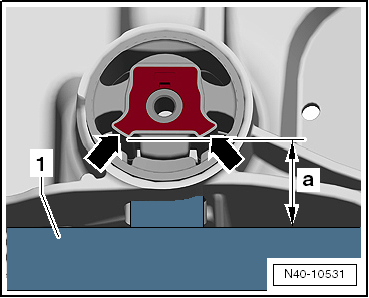

Fig 6: Identifying Installation Orientation Of T Version Of Bonded Rubber Bushing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Align T10214/2 on subframe with pressed in bonded rubber bushings.

NOTE:

The corners on the inner core of the bonded rubber bushing -arrows- must face toward the T10244 -1-.

The corners on the inner core of the bonded rubber bushing -arrows- must lie parallel with the edge of the T10244 -1-.

Distance -a- must be identical at left and right to guarantee parallelism.

V Version of the Bonded Rubber Bushing

Fig 7: Identifying Installation Orientation Of V Version Of Bonded Rubber Bushing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Align T10214/2 on subframe with pressed in bonded rubber bushings.

NOTE:

The corners on the inner core of the bonded rubber bushing -arrows- must face away from the T10244 -1-.

The corners on the inner core of the bonded rubber bushing -arrows- must lie parallel with the edge of the T10244 -1-.

Distance -a- must be identical at left and right to guarantee parallelism.

Procedure for Both Versions

-- Subframe makes contact on smaller inner diameter of tube T10244/3.

Fig 8: Locating Foot Well Trim Securing Nuts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press in bearing on stop and until a pressing force of 20 kN has been obtained.

-- Remove T10244 from subframe and check seating of the pressed in bonded rubber bushing.

The outer diameter -1- of both bonded rubber bushings must project up to 2 mm beyond edge in area of opening for pendulum support.

Fig 9: Identifying Outer Diameter Of Both Bonded Rubber Bushings And Pendulum Support Opening
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Cutouts of bonded rubber bushings must lie at center in opening of subframe.
A gap -arrow- between bonded rubber bushings is permitted.

-- Install subframe. Refer to INSTALLING .
