Charge air cooling components, assembly overview

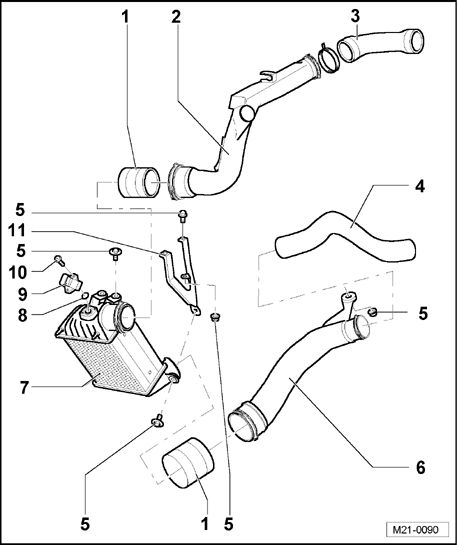

Fig 1: Exploded View - Charge Air Cooling Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Connecting hose

2 - Connecting pipe

3 - Connecting hose

• Connecting pipe/intake connecting union

4 - Connecting hose

• Charge air pipe/exhaust turbocharger

5 - 10 Nm

6 - Charge air pipe

7 - Charge air cooler

8 - O-ring

• Replace if damaged

9 - Manifold Absolute Pressure (MAP) sensor -G71- with Intake Air Temperature (IAT) sensor -G72-

10 - 5 Nm

11 - Bracket
