Brake Booster Vacuum Pump: Installing

WARNING: This page is about a different variant/trim than selected.

-- Place a new gasket -2- onto the vacuum pump.

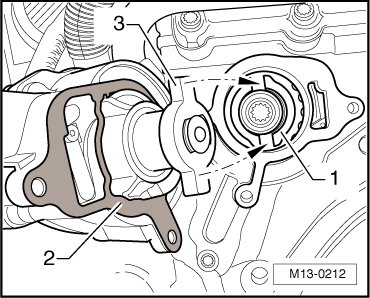

Fig 1: Identifying New Gasket On Placed On Vacuum Pump

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Place the vacuum pump coupling plate -3- so that it engages into the symmetrical groove of the double sprocket -1- -arrows- when installing the vacuum pump.

-- Tighten the bolts.

The rest of the installation follows the reverse of the removal procedure.

-- Install the battery tray and battery. Refer to Removal and Installation .
