Special Tools

Special tools and workshop equipment required

• Hose Clip Pliers VAS 6362
• Cooling System Tester V.A.G 1274 B
  Fig 1: Identifying Cooling System Tester V.A.G 1274 B

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Adapter V.A.G 1274/9
  Fig 2: Identifying Adapter V.A.G 1274/9

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Fig 3: Identifying Special Tools -- Cooling System, Draining And Filling

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Refractometer T10007
• Drip Tray V.A.G 1306 or Drip Tray for VAS 6100 VAS 6208
• Spring Type Clip Pliers VAS 5024 A
• Cooling System Charge Unit VAS 6096
• Adapter V.A.G 1274/8

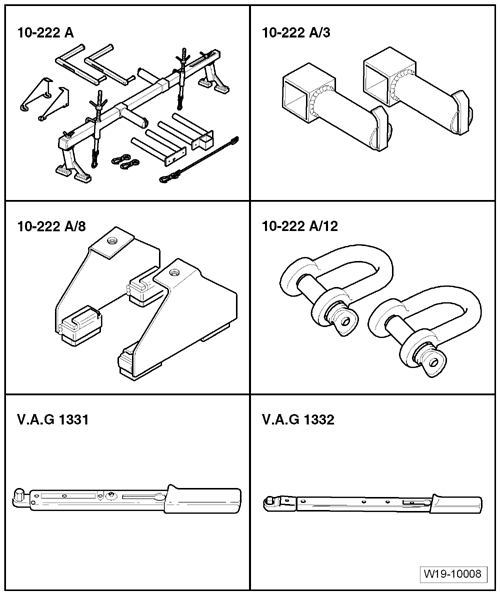

Fig 4: Identifying Special Tools -- Coolant Pump, Removing And Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Engine Support Bridge 10-222 A
• Engine Support Adapter 10-222 A/3
• Engine Support Feet 10-222 A/8
• Shackle 10-222 A/12
• Torque Wrench (5-50 Nm) V.A.G 1331
• Torque Wrench (40-200 Nm) V.A.G 1332
