Cooling System Components Overview, Body Side
WARNING: This page is about a different variant/trim than selected.

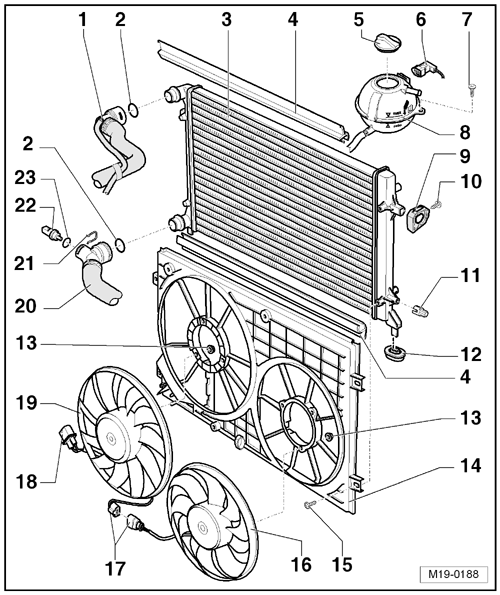

- Upper Coolant Hose
- to the flange on the cylinder head.
- O-ring
- Replace if damaged.
- Radiator
- Removing and installing, refer to RADIATOR .
- After replacing, replace the entire amount of coolant.
- Gasket
- Cap
- Check using the cooling system tester V.A.G 1274 B and the adapter V.A.G 1274/9. Refer to COOLING SYSTEM, CHECKING FOR LEAKS .
- The pressure relief valve must open at 1.4 to 1.6 bar.
- Connector
- Bolt
- 2 Nm
- Expansion Tank
- Perform a leak test on the cooling system using the cooling system tester V.A.G 1274 B and the adapter V.A.G 1274/8. Refer to COOLING SYSTEM, CHECKING FOR LEAKS .
- Bracket
- For the radiator.
- Bolt
- 7 Nm
- Spacer Piece
- For the refrigerant line bracket.
- Support
- Inserted in the lock carrier.
- Nut
- 5 Nm
- Fan Shroud
- Bolt
- 5 Nm
- Coolant Fan 2 -V177-
- Removing and installing, refer to FAN SHROUD AND FANS .
- Connector
- Connector
- Coolant Fan -V7-
- Removing and installing, refer to FAN SHROUD AND FANS .
- With the coolant fan control module -J293-.
- Lower Coolant Hose
- From the connection for the coolant thermostat.
- Retaining Clip
- Engine Coolant Temperature Sensor on Radiator -G83-
- O-ring
- Always replace.
