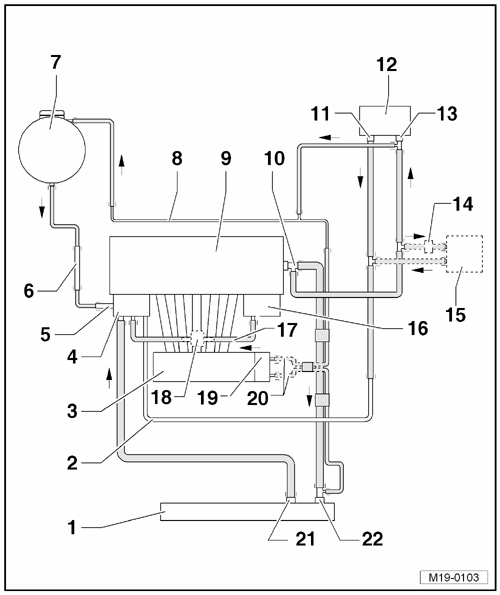

Coolant Hose Connection Diagram
WARNING: This page is about a different variant/trim than selected.
- Radiator
- Removing and installing, refer to RADIATOR .
- Replace the coolant after replacing.
- Coolant Line
- Intake Manifold
- Coolant Pump and Coolant Thermostat
- Coolant pump, removing and installing. Refer to COOLANT PUMP .
- Thermostat, removing and installing. Refer to COOLANT THERMOSTAT .
- Check the coolant thermostat, refer to "Coolant Thermostat" in item: 17.
- Front Coolant Line
- Secured to the accessory bracket.
- Right Coolant Line
- Secured to the engine mount.
- Expansion Tank
- With cap.
- Pressure relief valve in cap, checking. Refer to COOLING SYSTEM, CHECKING FOR LEAKS .
- Rear Coolant Line
- Cylinder Head/Cylinder Block
- Replace the coolant after replacing.
- Flange
- Quick-Release Coupling
- Lower connection.
- Heater Core
- Replace the coolant after replacing.
- Quick-Release Coupling
- Upper connection.
- Bypass Thermostat
- Only for vehicles with a automatic transmission.
- Assembly overview, refer to Figure.
- Checking, refer to BY-PASS THERMOSTAT, CHECKING .
- Transmission Fluid Cooler
- Only for vehicles with a automatic transmission.
- Oil Cooler
- Coolant Hose
- Pre-Warmer
- Not available in the US/Canadian market.
- Throttle Valve Control Module -J338-
- Connections only for a throttle valve control module heated by coolant.
- Coolant Hoses
- Only for a throttle valve control module heated by coolant.
- Quick-Release Coupling
- Upper connection.
- Quick-Release Coupling
- Lower connection.
