EVAP Canister

Removing

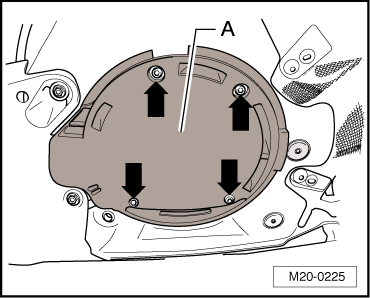

-- Remove the cover -A-.

Fig 1: Removing Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Vehicles with Engine Codes BGP and CBTA:

-- Disconnect the lines -1, 2 and 3-. To do so, press in or press together the securing ring.

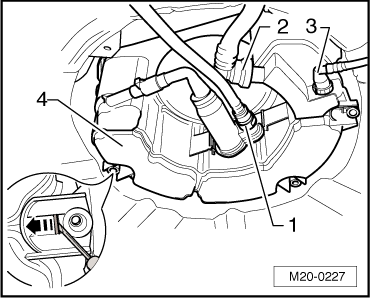

Fig 2: Disconnect Evaporative Emissions (EVAP) Canister Lines (Vehicles With Engine Code BGP)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the locking mechanisms on the bolt points in the -direction of the arrow- using a screwdriver and remove the Evaporative Emission (EVAP) canister -4-.

Vehicles with Engine Codes BGQ and CBUA:

-- Perform the removal the same way as on vehicles with engine codes BGP and CBTA.

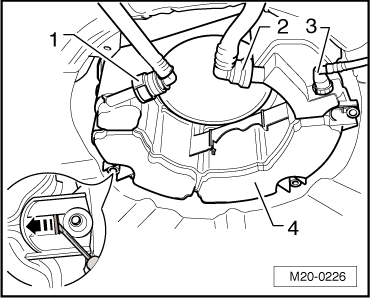

Fig 3: Disconnect Evaporative Emissions (EVAP) Canister Lines (Vehicles With Engine Code BGQ)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

Installation is performed in the reverse order of removal. When doing this note the following:

• Connect the ventilation lines until they engage audibly.
• Make sure the lines and EVAP canister are locked securely.
