Front Interior Light -W1-, removing and installing

WARNING: This page is about a different variant/trim than selected.

Removing

CAUTION:

Before beginning repairs on the electrical system:

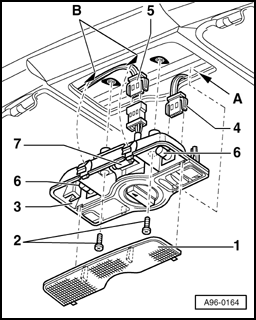

Fig 1: Exploded View Of Front Interior Light Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Carefully pry lens from interior light -1- and remove.
Remove screws -2-.
Pry out hooks -B- with screwdriver and then remove interior light assembly -3- from roof console.
Disconnect electrical connections -4- and -5-.

Installing

Install in reverse order of removal
