Rear lights - Jetta, assembly
WARNING: This page is about a different variant/trim than selected.

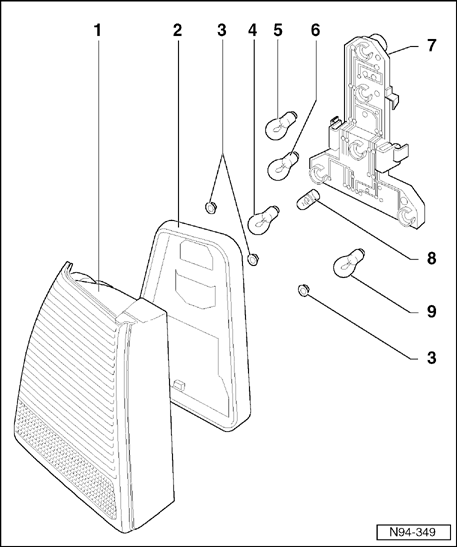

1 - Housing
- Removing and installing. Refer to Rear light housing - Jetta, removing and installing
2 - Gasket
- Replace if damaged
3 - Hex nuts M5
Qty. 3
4 - Rear Fog Light Bulb -L20-
12V / 21W
Where applicable - left side only
5 - Brake Light bulb -M9- / -M10-
12V / 21W
6 - Turn Signal bulb -M6- / -M8-
12V / 21W
7 - Bulb holder
- Removing and installing. Refer to Rear light bulb holder - Golf/Jetta, removing and installing
8 - Tail Light bulb -M2- / -M4-
12V / 5W
9 - Back-Up Light bulb -M16- / -M17-
12V / 21W
