Rear lights - Jetta Wagon, assembly

WARNING: This page is about a different variant/trim than selected.

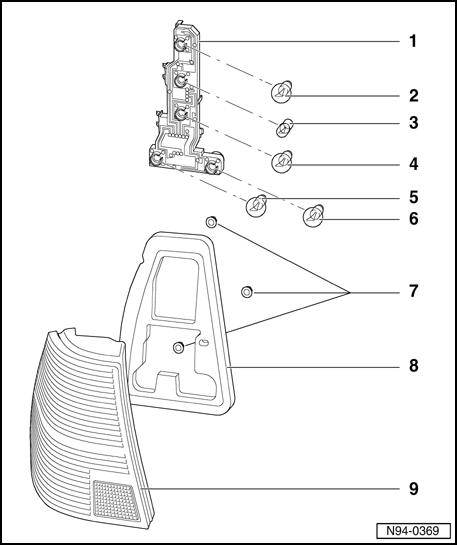

Fig 1: Exploded View Of Rear Lights (Jetta Wagon)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Bulb holder

2 - Brake/Tail Light bulb -M21- / -M22-

12V / 21W/5W

3 - Tail Light bulb -M2- / -M4-

12V / 5W

Where applicable

4 - Turn Signal bulb -M6- / -M8-

12V / 21W

Fig 2: Exploded View Of Rear Lights (Jetta Wagon)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

5 - Rear Fog Light Bulb -L20-

12V / 21W

Where applicable - left side only

6 - Back-Up Light bulb -M16- / M17-

12V / 21W

7 - Hex nuts M5

Qty. 3

8 - Gasket

9 - Housing
