Headlights, assembly

WARNING: This page is about a different variant/trim than selected.

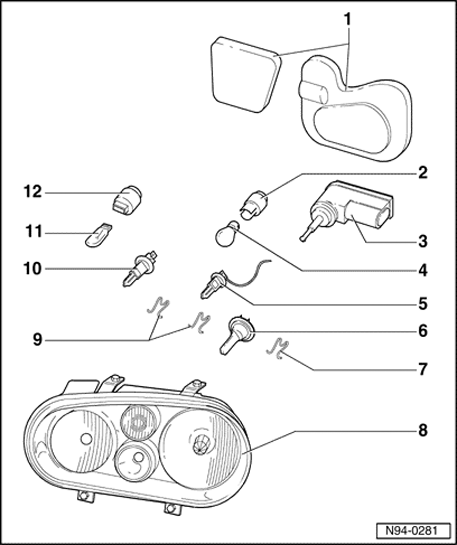

Fig 1: Exploded View Of Headlights Components (Golf)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE: After performing any repairs or service that could affect headlight aim, check/adjust aim. Refer to Headlights, adjusting .

1 - Sealing cap

2 - Turn Signal bulb holder

3 - Headlight beam adjusting motor

4 - Turn Signal bulb -M5- / -M7-

Bulb 12 V, 21 W

5 - Fog Light bulb -L22- / -L23-

Bulb H3, 12 V, 55 W

6 - Low Beam bulb -M29- / -M31-

Bulb H7, 12 V, 55 W

Fig 2: Exploded View Of Headlights Components (Golf)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

7 - Spring clip

8 - Headlight housing

Adjusting headlights. Refer to Headlights, adjusting
Removing and installing. Refer to Headlights, removing and installing
Servicing upper housing securing lugs. Refer to Headlight securing lugs, servicing

9 - Spring clip

10 - High Beam bulb -M30- / -M32-

Bulb H1, 12 V, 55 W

11 - Parking Light bulb -M1- / -M3-

Bulb 12 V, 5 W

12 - Parking light bulb holder
